14
Connections
• Be sure to always refer to the instructions that came with the
component that you are connecting.
• Do not plug in the power cord until all connections have been
properly made.
• For input jacks, red connectors (marked R) are used for the
right channel, white connectors (marked L) are used for the
left channel, and yellow connectors (marked V) are used for
video connection.
• Insert all plugs and connectors securely. Improper
connections can result in noise, poor performance, or
damage to the equipment.
• Do not bind audio/video connection cables with power cords
and speaker cables. Doing so may adversely affect the
picture and sound quality.
Improper connection
Inserted completely
Optical digital terminals
The optical digital terminals are provided
with protection caps. Before you connect a
cable to a terminal, remove the cap and
keep it safely. If you disconnect the cable,
put the cap back on the terminal.
Audio connection cable
Component video
connection cable
Video connection cable
S video connection cable
Coaxial cable
Optical cable
Left (white)
Right (red)
L
R

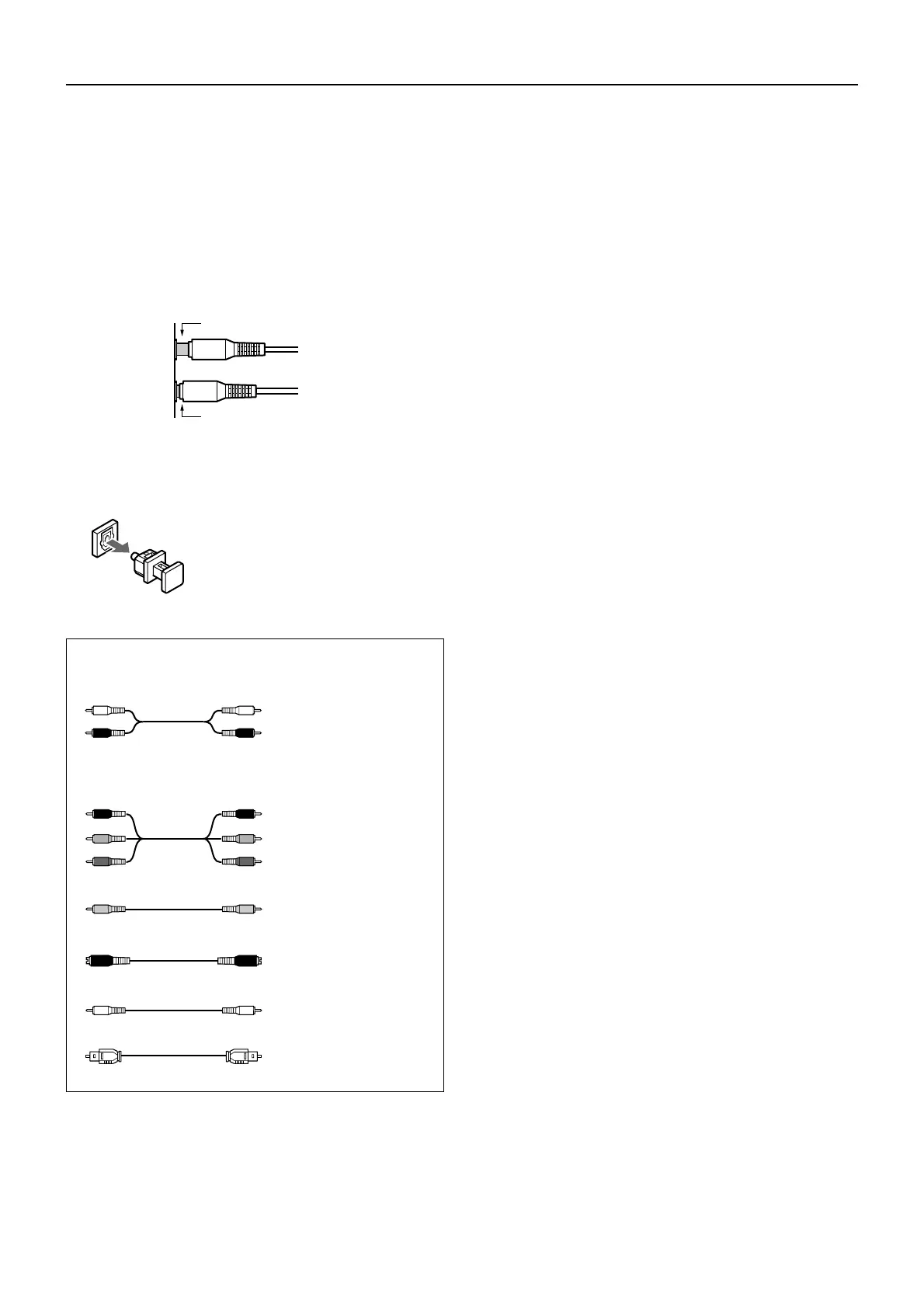

Cables are depicted in the connection diagrams as shown below.
PR
PB
Y
PR
PB
Y
