Onkyo TX-SR606 Service Manual

TX-SR606
IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-1

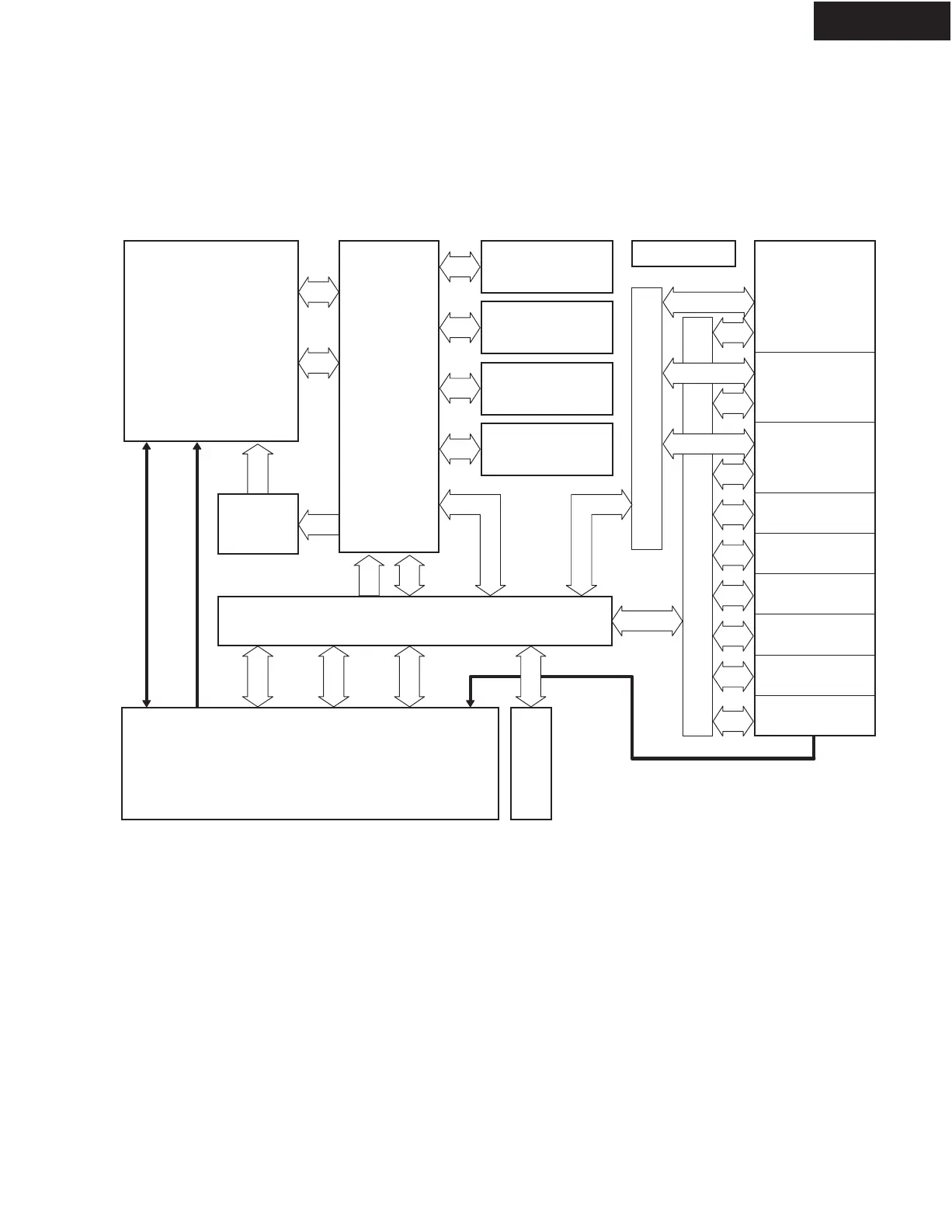

Q201 : D788E001BRFP266 (Floating-Point Digital Signal Processor)-1/5
BLOCK DIAGRAM
256
256
256
256
3232
DMPPMP
CSP
32
256
64
D1
Data
R/W
R/W
Data
D2
64
256
Program
Fetch
INTI/O
C67x + CPU
Memory
Controller
32
High-Performance
Crossbar Switch
32
McASP DMA Bus
32
32
32
32
32
32
32
Peripheral Configuration Bus
EMIF
32
Events
In
32
MAX1MAX0
32
CONTROL
32
Interrupts
Out
I/O
dMAX
32
32
32
32
32
McASP0
16 Serializers
McASP1
6 Serializers
McASP2
2 Serializers
DIT Only
SPI1
SPI0
I2C1
I2C0
RTI
PLL
JTAG EMU
Program/Data
RAM
256K Bytes
Program/Data
ROM Page1
256K Bytes
Program/Data
ROM Page3
256K Bytes
Program/Data
ROM Page2
256K Bytes
Program
Cache
32K Bytes
Peripheral Interrupt and DMA Events
