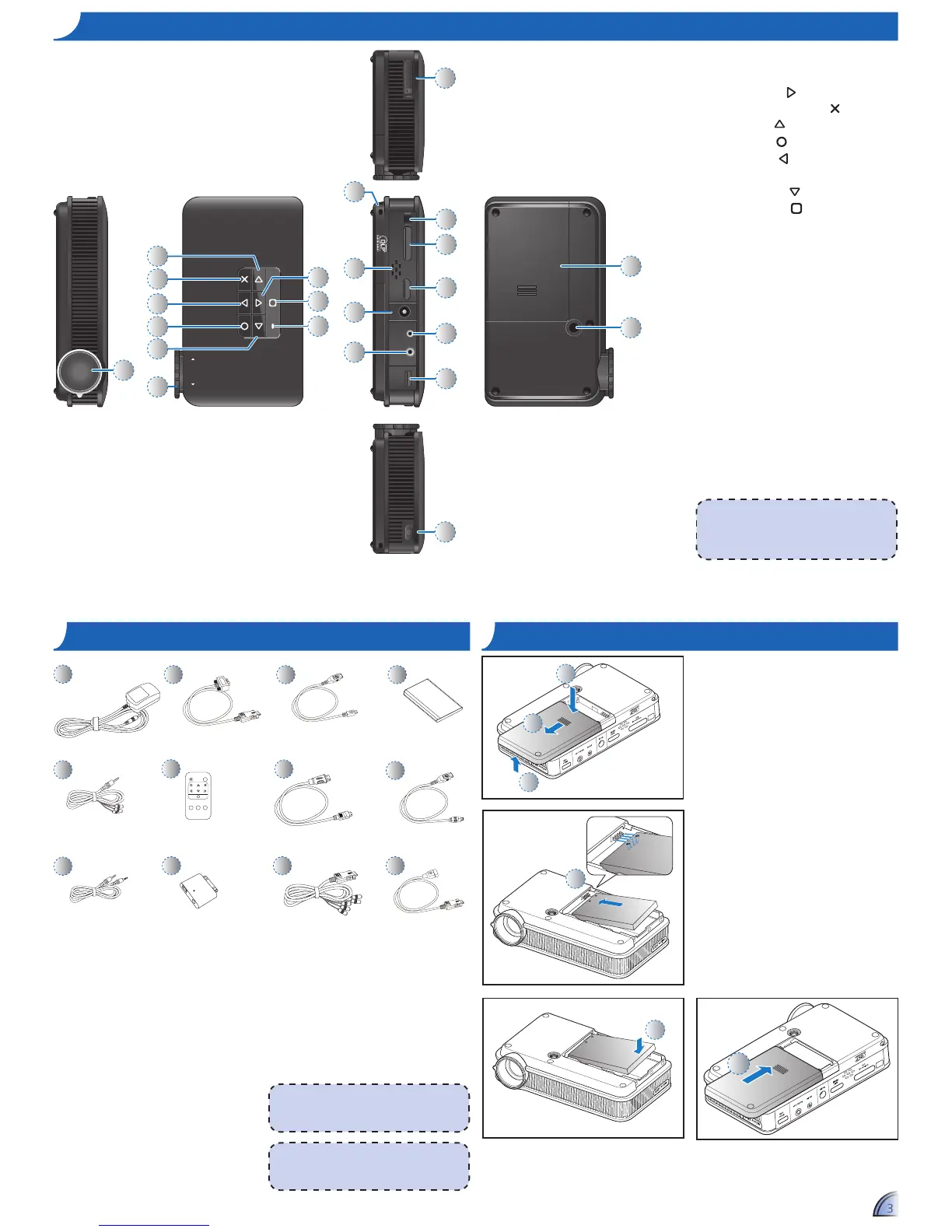

Optoma Pico PK320 User Manual

proDuct overvIeW
pacKage overvIeW
1
2
3
InStall the Battery
Standard Accessory
1. Power adaptor with AC plug
2. VGA cable
3. USB to micro USB cable
4. Battery
5. AV cable
6. Remote control
Optional Accessory
7. Mini HDMI cable
8. iPod connection kit
a. USB cable for iPod connector
b. iPod cable
c. iPod connector
9. Component cable
10.USBcable(forashdrive)
4
5
6
33
FOCUS
Universal
I/O
mini
HDMI
AV IN
DC IN
Audio out
Micro
USB
micro SD
7
1
21
15
23
22
10
16
17
18
19
20
9
8
12
13
14
11
3
2
6
4
5
1. Lens
2. Right Button (
)
3. Cancel / ESC Button (
)
4. Up Button (
)
5. OK Button (
)
6. Left Button (
)
7. Focus Dial
8. Down Button (
)
9. Home Button (
)
10. LED Indicator
11. Lanyard
12. Speaker
13. DC Input
14. Audio Out Connector
15. MicroSD Card Slot
16.IRReceiver
17.UniversalI/OConnectort
18. Mini HDMI Connector
19. AV Input Connector
20. Micro USB Port
21. Power Button
22.BatteryCover
23 ScrewHoleforTripodConverter
proDuct overvIeW
pacKage overvIeW
1.Removethebatterycover.(

~

)
2. Align the battery contacts with
the contacts in the battery
compartment. (

)
3. Push the battery to secure it in
place. (

)
4.Slidethebatterycoverbackinto
place. (

)
1
5
8b
<Note>
Thestandardaccessoriesmayvaryineach
region due to different applications.
6
8c
2
7
3
8a
9
4
<Note>
Theinclusivepowerplugheadvariesper
region.
<Note>
Items 2~6 and 8 are also function buttons.
Functionsvarydependingonthecurrent
mode.
10
Bright
OFF
VideoVGA HDMI

Optoma Pico PK320 Specifications

General

Projection distance	0.13 - 6 m
Projection technology	DLP
Contrast ratio (typical)	2000:1
Screen size compatibility	40 - 150 \
Projector native resolution	WVGA (854x480)
I/O ports	HDMI, VGA, AV
Audio input	Yes
Audio system	1.0
RS-232 ports	0
Compatibility	NB, iPhone, iPad2, Blackberry, PC
Power supply type	AC/DC
Dimensions (WxDxH)	120 x 70 x 30 mm
Connectivity technology	Wired
Focus	Manual
Throw ratio	1.8 - 2.1:1
Zoom capability	No
Focal length range	- mm
Light source type	LED
Service life of light source	20000 h
RMS rated power	1 W
Audio formats supported	MP3, MS-ADPCM, WMA
Image formats supported	BMP, JPG
Video formats supported	3GP, ASF, AVI, FLV, MOV, MP4, TS, WMV
Document formats supported	DOC, DOCX, PDF
Number of built-in speakers	1
USB connector type	Micro-USB A
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Compatible memory cards	miniSD, miniSDHC
Maximum memory card size	32 GB
Internal storage capacity	1 GB
Noise level	- dB
Product type	Portable projector
Product color	Black
Market positioning	Portable
Power source	AC/Battery
AC input voltage	230 V
AC input frequency	50 Hz
Battery life (max)	1.5 h
Power consumption (standby)	- W
Cables included	AUX, USB, VGA
Remote control type	IR
Sustainability certificates	RoHS

Weight and Dimensions

Depth	70 mm
Width	120 mm
Height	30 mm
Weight	250 g
