Orbit 91006 User Manual

• Eachvalvehastwowires.Onewireistobeconnectedas
the common. The common wires for all the valves can be
connected together to one common wire going to the timer.
The other valve wire is to be connected to the specific station
wire that will control that valve [See Figure 19].
• Allwiresshouldbejoinedtogetherusingwirenuts,solder,or
vinyl tape. For additional protection to waterproof connections
a WaterMaster
®
grease cap can be used.
• Toavoidelectricalhazards,onlyonevalveshouldbeconnected
to each station.
Figure 19: Wiring Valves
Connecting Valve Wires to the Timer
• Removecoverbyslidingitdown.
• Determinewhichvalveyouwanttoconnecttowhichstation.
Connect each valve wire to its station terminal (labeled 1-6 or
1-12) by inserting the bare wire.
• Itmaybenecessaryto“open”theterminaltoallowfor
wire insertion or removal. To do this, simply take a Phillips
screwdriver and turn the screw two to three turns counter
clockwise. After inserting wire turn the screw clockwise. Do
not over tighten.
• Connectthecommonwiretotheterminallabeled“com”[See
Figure 20].
Figure 20: Connecting Valve Wires
13
To program the Transmitter:
• WhileholdingtheTransmitterinonehand,pressandrelease
the transmitter program button found to the right of the RAIN
DELAY button. The red indicator light on the Timer will turn on.
Press the off button on the Transmitter. The Transmitter will
beep three times and the red indicator light on the Timer will
blink, indicating the program coding is complete.
Section Six
INSTALLATION
Timer Location
• Selectalocationnearastandardelectricaloutlet.Avoidusing
an outlet controlled by an On/Off switch.
• Thetimershouldnotbeexposedtotheweatheroroperatedat
temperaturesbelow32°orabove113°Fahrenheit.(0°c+45°c)
• Installationworksbestinsideagarageorprotectedarea.The
Timer should not be mounted outdoors.
Note: The distance that the Transmitter and Timer will operate at is
approximately 200 feet line of sight. This distance can be affected by
obstacles such as walls, automobiles, metal siding, etc. To achieve
the maximum amount of range, mount the Timer as high on the wall
as is convenient for operation and service.

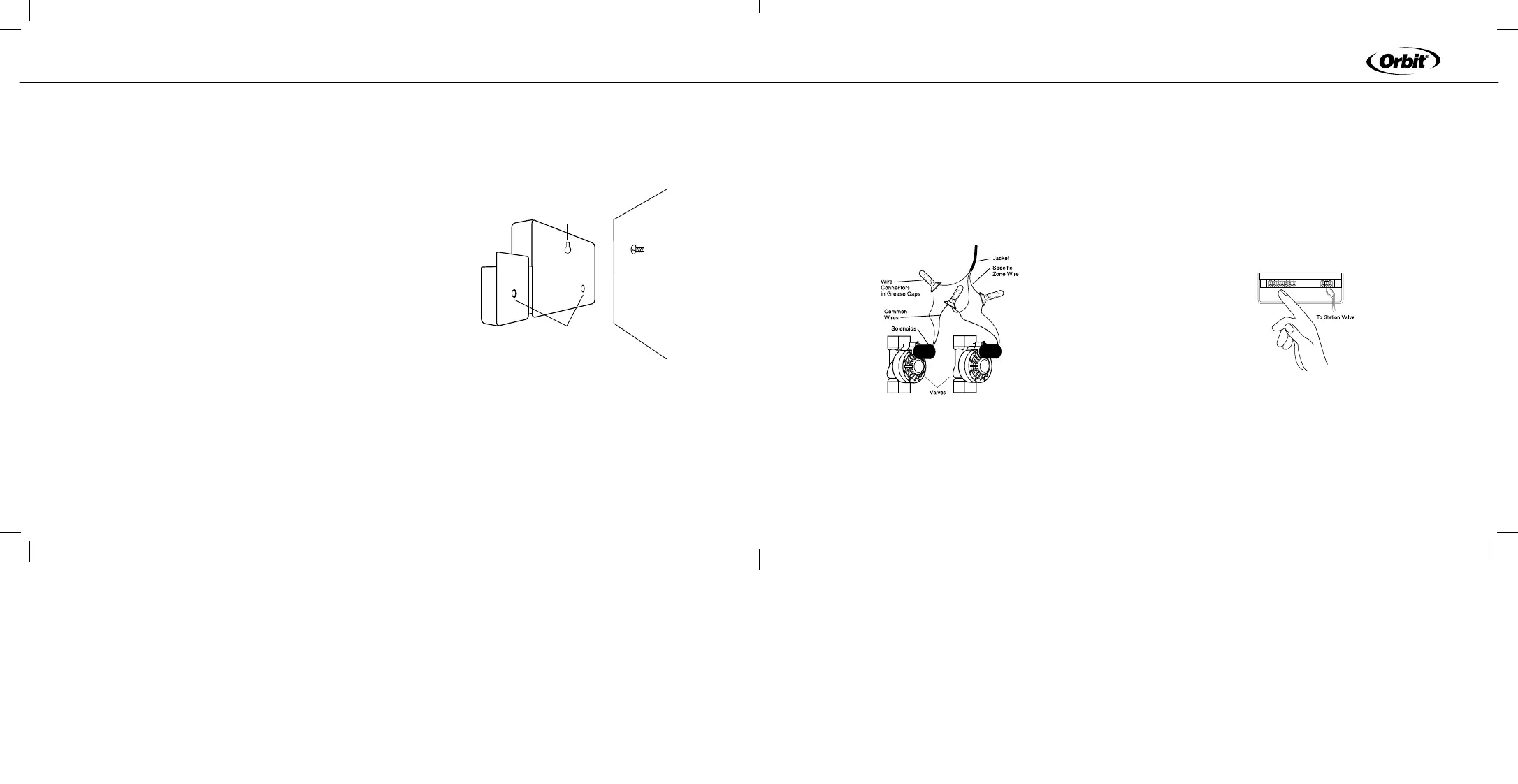

Mounting the Timer
• ScrewaNo.8screwateyelevelleavingthescrewhead
extended out from the wall about 1/8 inch. Use expanding
anchors in plaster or masonry if necessary.
• Slipthekeyholeinthebackofthetimerovertheextended
screw.
• ScrewaNo.8screwthrougheachofthetwoholesatthe
bottom of the timer box into the wall [See Figure 18].
• InstalltwoAAbatteries,andre-enterthetimeanddate
as required.
Figure 18: Mounting the Timer
Wiring the Electric Valves
• Ifthedistancebetweenthetimerandvalvesisunder700feet,
use WaterMaster
®
sprinkler wire or 20 gauge plastic jacketed
thermostat wire to connect the timer to the valves. If the
distance is over 700 feet, use 16 gauge wire. The wire can
be buried in the ground; however, for more protection wires
can be pulled through PVC pipe and buried underground. Be
careful to avoid burying the wires in locations where they could
be damaged by digging or trenching in the future.
12
ENGLISH
Keyhole
Screwholes
No. 8 Screw
Wall

Orbit 91006 Specifications

General

Brand	Orbit
Model	91006
Category	Timer
Language	English
