Installation and Operation Manual - Osburn 3500
5.3.2 Door Alignment

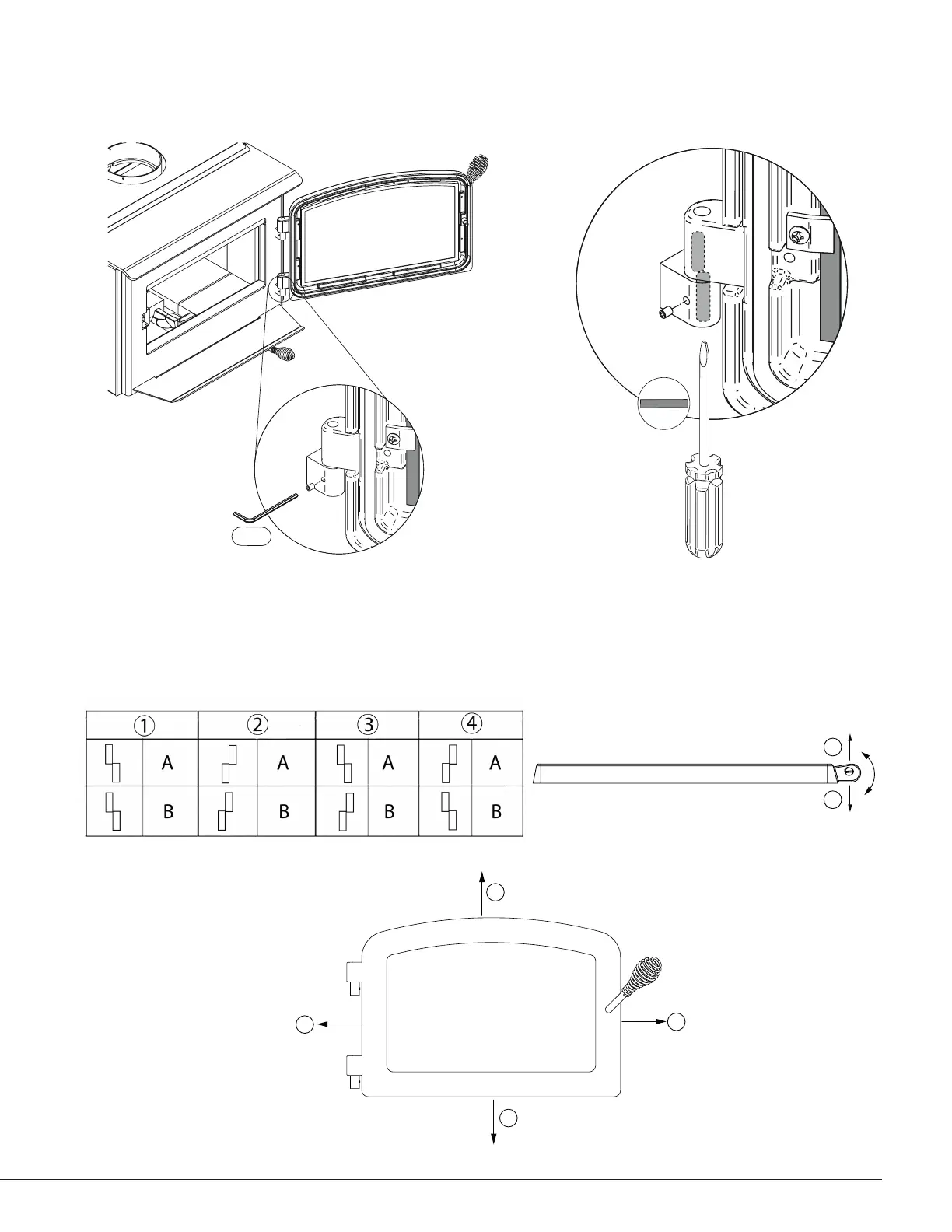

To align, open the door and loosen the pressures screws located on the lower and upper hinges
of the door using a 3/32” Allen key to free the adjustable hinge rods.
Using a flat screwdriver, turn the adjustable hinge rods in the direction shown to adjust the
doors. Tighten all door hinge pressure screws when they are at the desired positions.
Configurations 1-2-3-4-5-6, show in which direction these act on the adjustment of the door.
3/32"
5
6
3
2
A
B
1
4
