Page 41
Installation and Operation Manual - Osburn 3500
APPENDIX 3: OPTIONAL FRESH AIR INT
AKE KIT INST
ALLA
TION

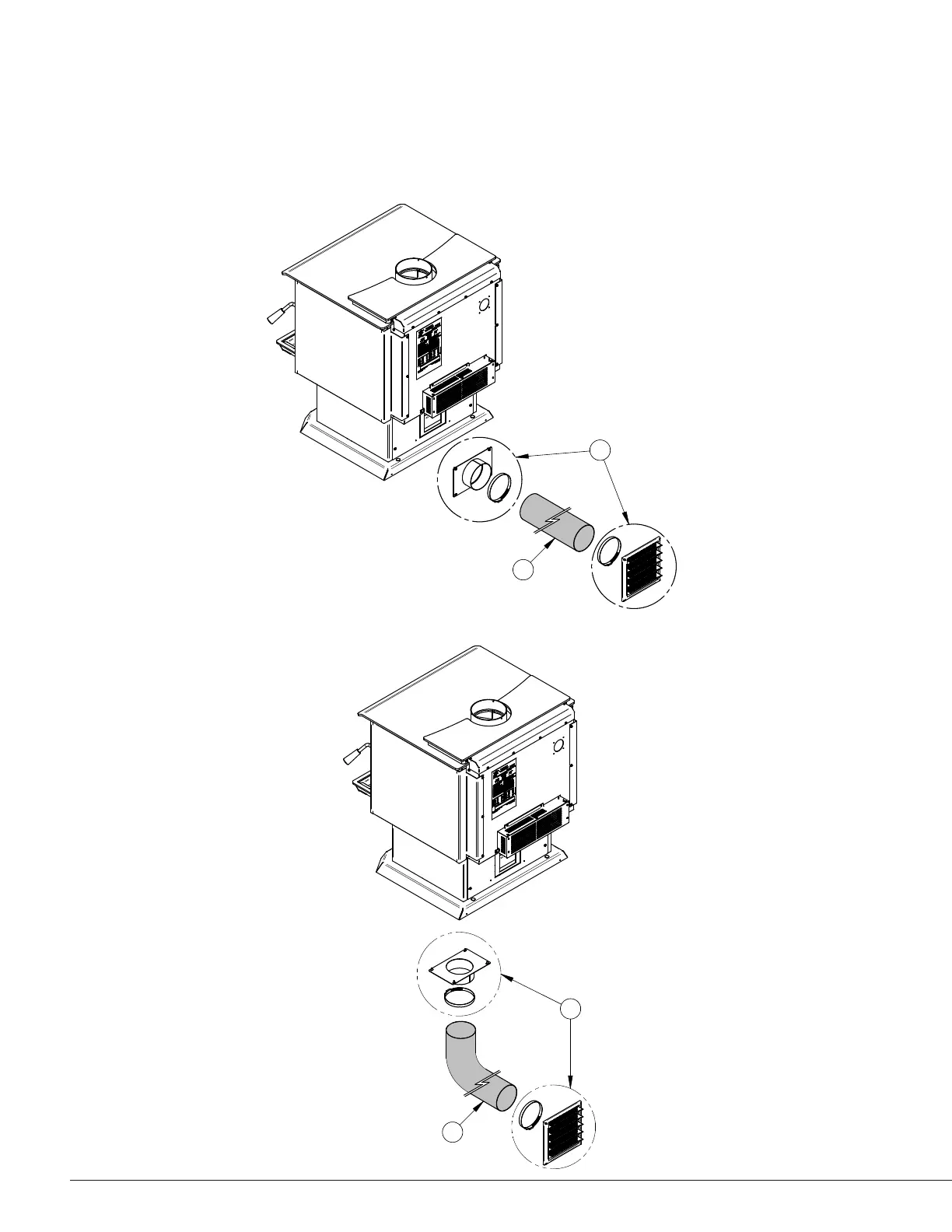

This mobile home approved wood fir
e requir
es installation of a fresh air intake kit
(A)
and an
insulated fresh air intake pipe (HV
AC type, must meet ULC S110 or UL 181 class 0 or class 1)
(B)
,
sold separately
. Refer to air intake kit installation instructions for more details.
A
B
A
B
