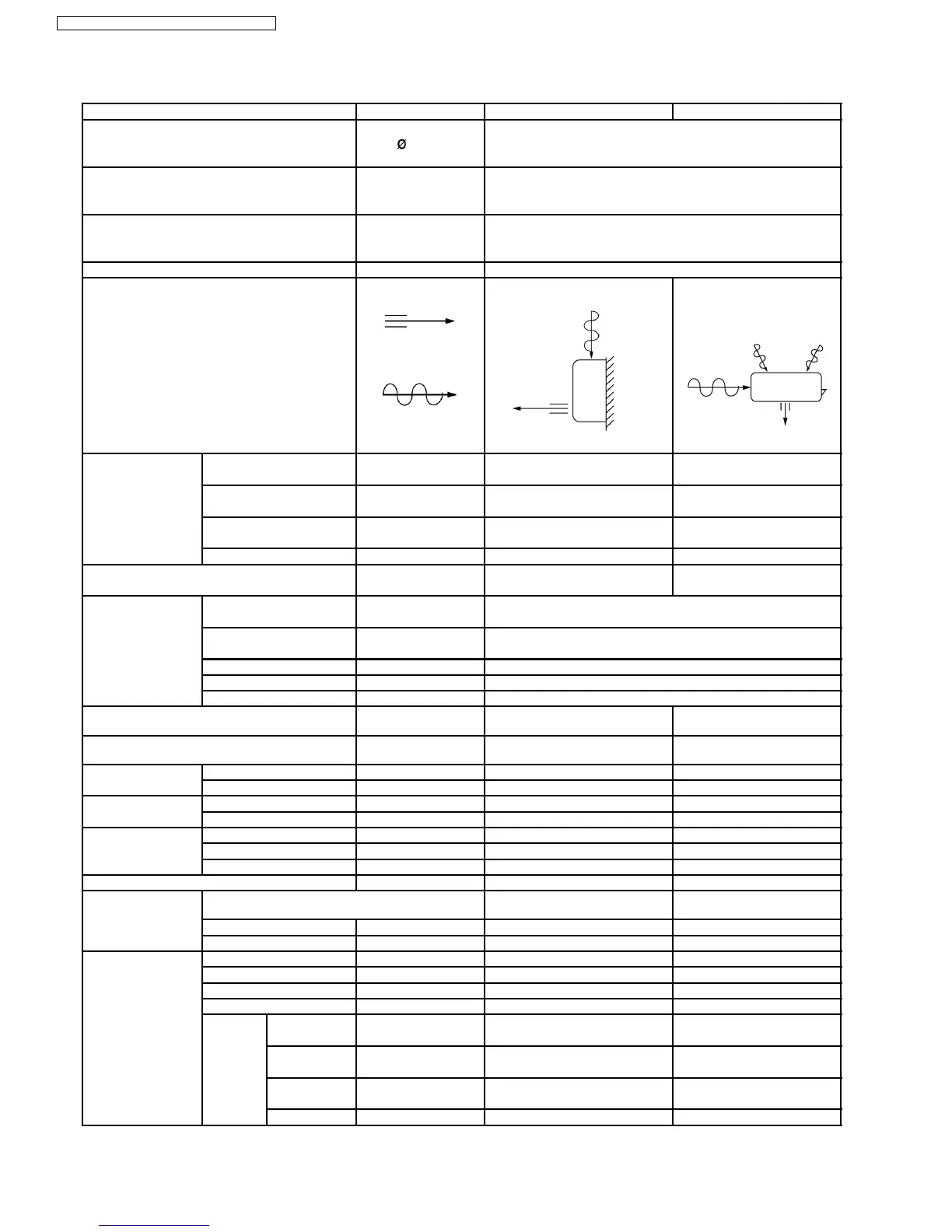

3.2. CS-A24DKD CU-A24DKD
Unit CS-A24DKD CU-A24DKD
Power Source (Phase, Voltage, Cycle) ,V,Hz Single, 220 - 230, 50
Cooling Capacity kW (BTU/h) 7.03 - 7.03 (24,000 - 24,000)
Heating Capacity kW (BTU/h) 7.80 - 7.80 (26,600 - 26,600)
Moisture Removal l/h (Pint/h) 4.0 (8.5)
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Lo m
3
/min (cfm) Cooling; 13.7 (480) - 13.7 (480) 28.1 (990) - 29.9 (1,055)
Heating; 14.7 (520) - 14.7 (520)
Me m
3
/min (cfm) Cooling; 15.8 (560) - 15.8 (560) —
Heating; 15.8 (560) - 15.8 (560)
Hi m
3
/min (cfm) Cooling; 16.8 (590) - 16.8 (590) 49.7 (1,750) - 50.7 (1,790)
Heating; 17.6 (620) - 17.6 (620)
SHi m
3
/min (cfm) Cooling; 17.6 (620) - 17.6 (620) —
Noise Level dB (A) Cooling; High 47 - 47, Low 41 - 41 Cooling; High 53 - 54
Heating; High 46 - 46, Low 41 - 41 Heating; High 54 - 55
Electrical Data Input Power kW Cooling; 2.54 - 2.58
Heating; 2.53 - 2.56
Running Current A Cooling; 12.3 - 12.2
Heating; 12.2 - 12.1
EER W/W (BTU/hW) Cooling; 2.77 - 2.72 (9.45 - 9.30)
COP W/W (BTU/hW) Heating; 3.08 - 3.05 (10.51 - 10.39)
Starting Current A 65.0
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 5/8”
L ; Half Union 1/4”
G ; 3-way valve 5/8”
L ; 3-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G ; (gas side) 5/8”
L ; (liquid side) 1/4”
G ; (gas side) 5/8”
L ; (liquid side) 1/4”
Drain
Hose
Inner diameter mm 12 —
Length mm 650 —
Power Cord Length m 1.9 —
Number of core-wire 3 (2.5 mm
2
) —
Dimensions Height inch (mm) 10 - 13/16 (275) 29 - 17/32 (750)
Width inch (mm) 39 - 9/32 (998) 34 - 7/16 (875)
Depth inch (mm) 9-1/16 (230) 13 - 19/32 (345)
Net Weight lb (kg) 26 (12.0) 139 (63.0)
Compressor Description — Rotary (1 cylinder) rolling
piston type
Motor Type — Induction (2-poles)
Rated Output kW — 2.0
Air Circulation Description Cross-flow Fan Propeller Fan
Material ASHT-18 PP
Motor Type Transistor (8-poles) Induction (6-poles)
Rated Output W 30 80
Fan Speed Low rpm Cooling; 1,280 - 1,280 460 - 490
Heating; 1,380 - 1,380
Medium rpm Cooling; 1,480 - 1,480 —
Heating; 1,480 - 1,480
High rpm Cooling; 1,570 - 1,570 815 - 830
Heating; 1,650 - 1,650
SuperHigh rpm Cooling; 1,650 - 1,650 —
8
CS-A18DKD CU-A18DKD / CS-A24DKD CU-A24DKD
