Panasonic CS-A9BKP Service Manual

REMARKS
B : BLUE
BR : BROWN
BL : BLACK
GRY : GRAY
O : ORANGE
P : PINK
R : RED
W : WHITE
Y/G : YELLOW/GREEN
Power Supply Cord Destination
• Europe
• Oceania
• Turkey
• Argentina
Resistance of Indoor Fan Motor Windings
MODEL CS-A7BK
CS-A9BK
CS-A12BK
CONNECTION CWA921060
BLUE-YELLOW 371.0 Ω
YELLOW-RED 386.6 Ω
Note: Resistance at 20°C of ambient temperature.
Resistance of Outdoor Fan Motor Windings
MODEL CU-A7BK
CU-A9BK
CU-A12BK
CONNECTION CWA951087 CWA951117
BLUE-YELLOW 249.8 Ω 230.0 Ω
YELLOW-RED 288.6 Ω 255.0 Ω
Note: Resistance at 20°C of ambient temperature.
Resistance of Compressor Windings
MODEL CU-A7BK
CONNECTION 2RS122D5BC02
C-R 5.193 Ω
C-S 5.557 Ω
Note: Resistance at 20°C of ambient temperature.
MODEL CU-A9BK
CONNECTION 2PS156D3BA02
C-R 3.501 Ω
C-S 3.405 Ω
Note: Resistance at 20°C of ambient temperature.
MODEL CU-A12BK
CONNECTION QJ208PAA
C-R(Main) 3.31 Ω
C-S(Sub) 4.72 Ω
Note: Resistance at 25°C of ambient temperature.

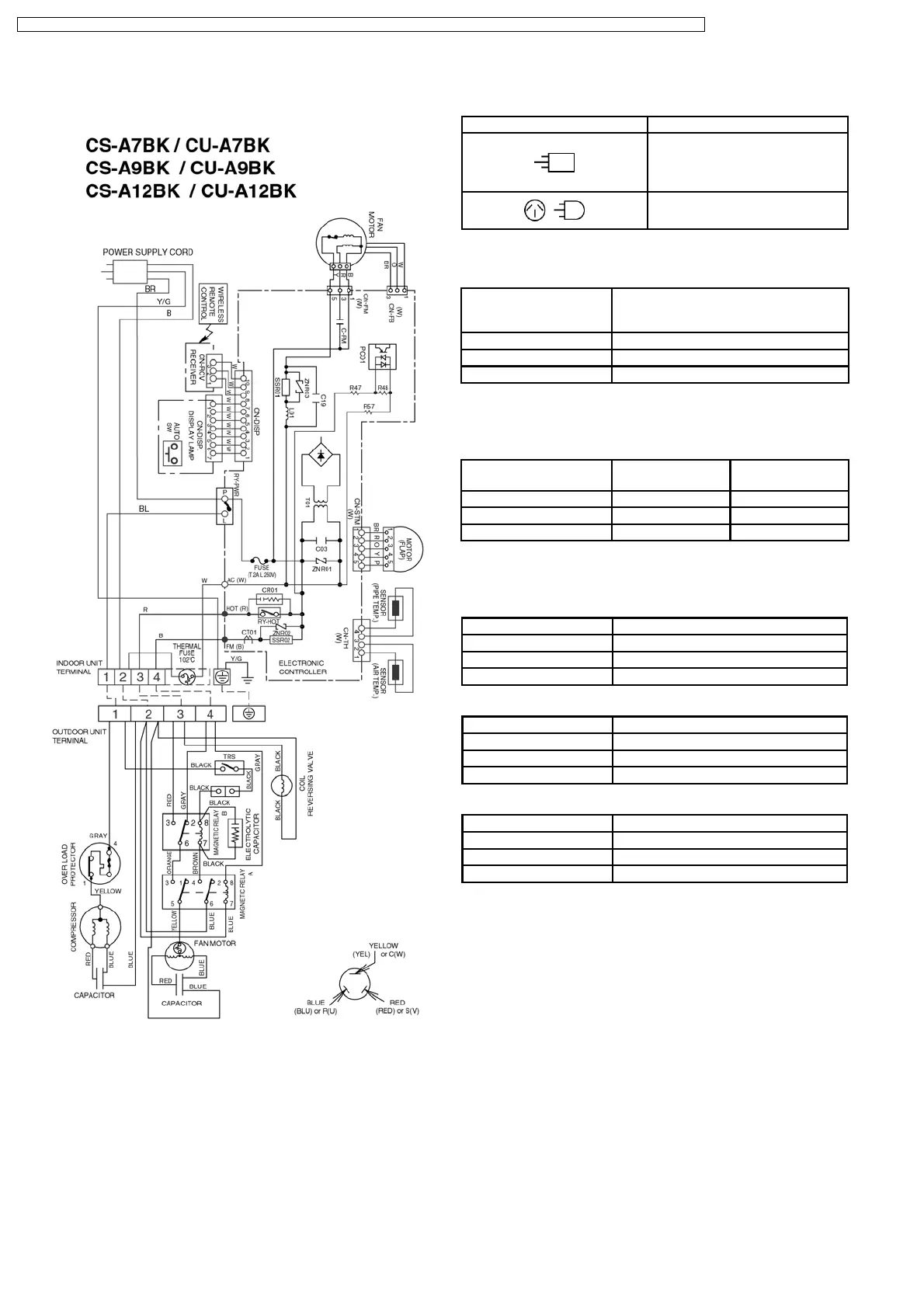

7 Wiring Diagram
16
CS-A7BKP CU-A7BKP5 / CS-A7BKP CU-A7BKP6 / CS-A9BKP CU-A9BKP5 / CS-A9BKP CU-A9BKP6 / CS-A12BKP CU-A12BKP5 / CS-A12BKP CU-A12BKP6
