Panasonic CS-A9MKD User Manual

26

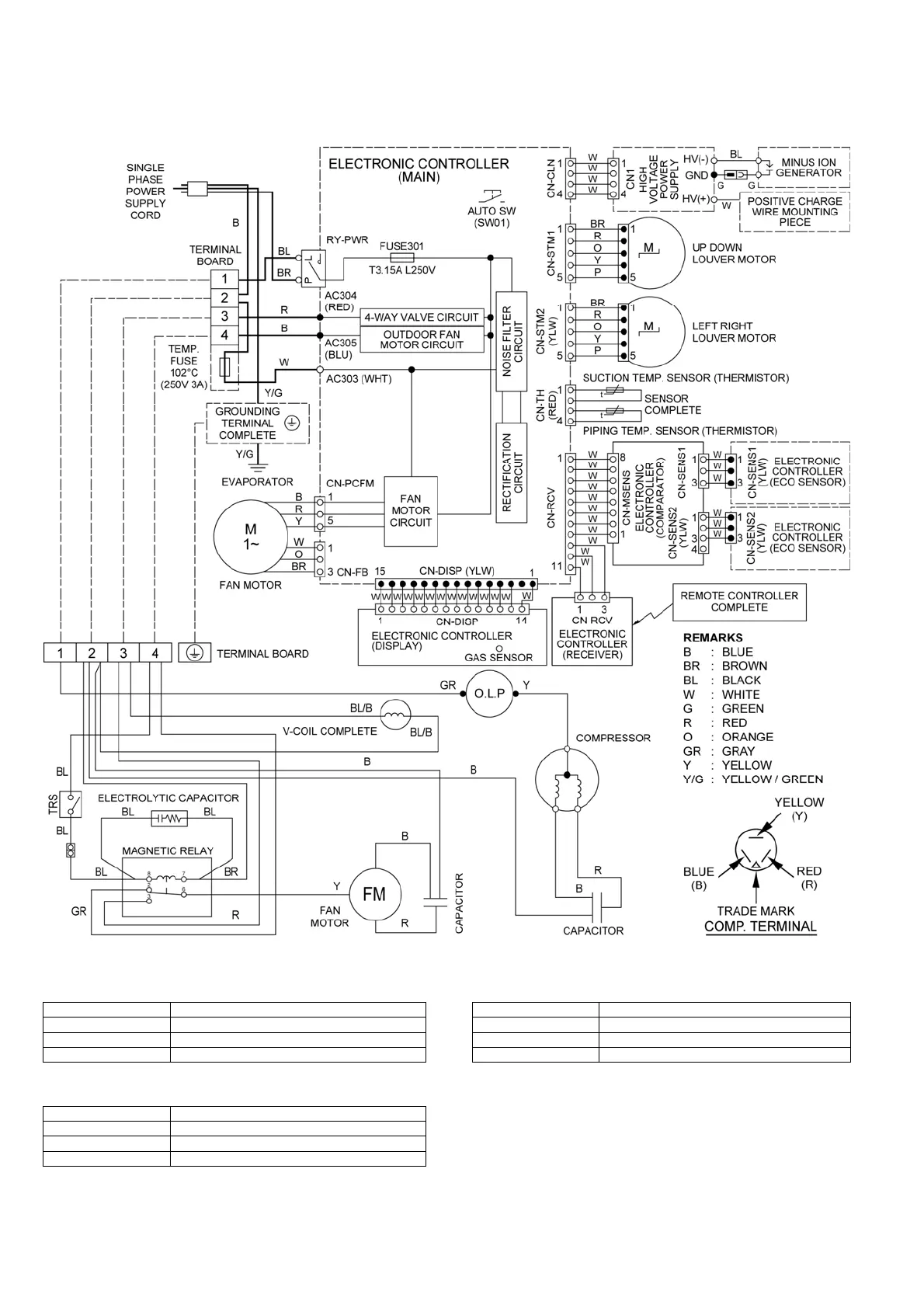

8. Wiring Connection Diagram
8.1 CS-A9MKD CU-A9MKD
Resistance of Indoor Fan Motor Windings
Resistance of Compressor Windings
MODEL CS-A9MKD MODEL CU-A9MKD
CONNECTION CWA921434 CONNECTION 2PS156D3DA02
BLUE-YELLOW 351.3Ω C-R 4.228Ω
YELLOW-RED 343.9Ω C-S 3.841Ω
Note: Resistance at 20°C of ambient temperature. Note: Resistance at 20°C of ambient temperature.
Resistance of Outdoor Fan Motor Windings
MODEL CU-A9MKD
CONNECTION CWA951388J
BLUE-YELLOW 285Ω
YELLOW-RED 281Ω
Note: Resistance at 25°C of ambient temperature.
