20

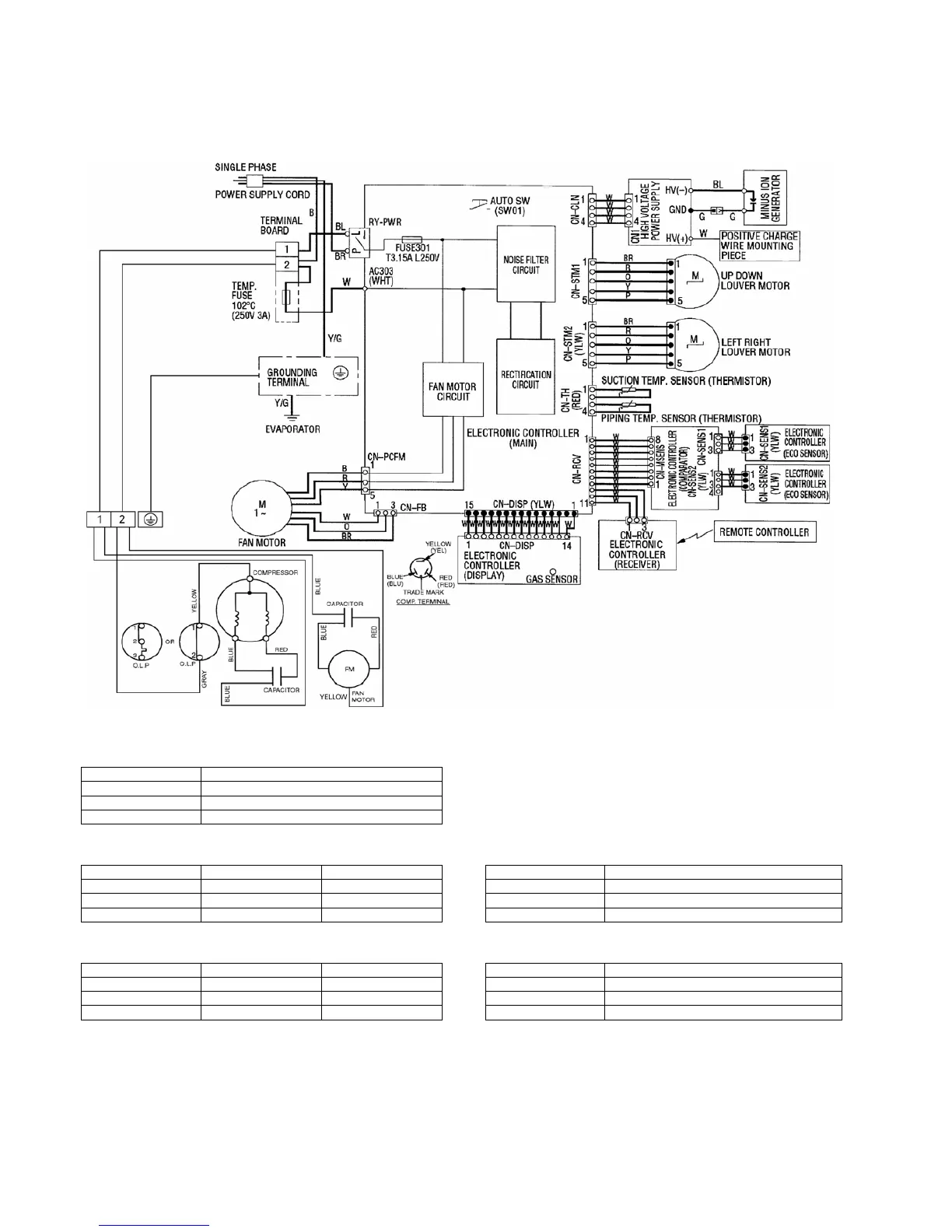

8. Wiring Connection Diagram
8.1 CS-C7MKP-7 CU-C7MKP-7 CS-C9MKP-7 CU-C9MKP-7
CS-C12MKP-7 CU-C12MKP-7
Resistance of Indoor Fan Motor Windings
MODEL CS-C7MKP-7 / CS-C9MKP-7 / CS-C12MKP-7
CONNECTION CWA921434
BLUE-YELLOW 351.3
YELLOW-RED 343.9
Note: Resistance at 25°C of ambient temperature.
Resistance of Outdoor Fan Motor Windings Resistance of Outdoor Fan Motor Windings
MODEL CU-C9MKP-7 CU-C12MKP-7 MODEL CU-C7MKP-7
CONNECTION CWA951691 CWA951691 CONNECTION CWA951673
BLUE-YELLOW 388 388 BLUE-YELLOW 318
YELLOW-RED 305 305 YELLOW-RED 272
Note: Resistance at 20°C of ambient temperature.
Resistance of Compressor Windings Resistance of Compressor Windings
MODEL CU-C9MKP-7 CU-C12MKP-7 MODEL CU-C7MKP-7
CONNECTION 2PS146D3BA06 2PS206D3CA06 CONNECTION 2RS122D5AD02
C-R 5.091 2.878 C-R 5.627
C-S 5.382 5.874 C-S 12.19
Note: Resistance at 20°C of ambient temperature.
