Getting started

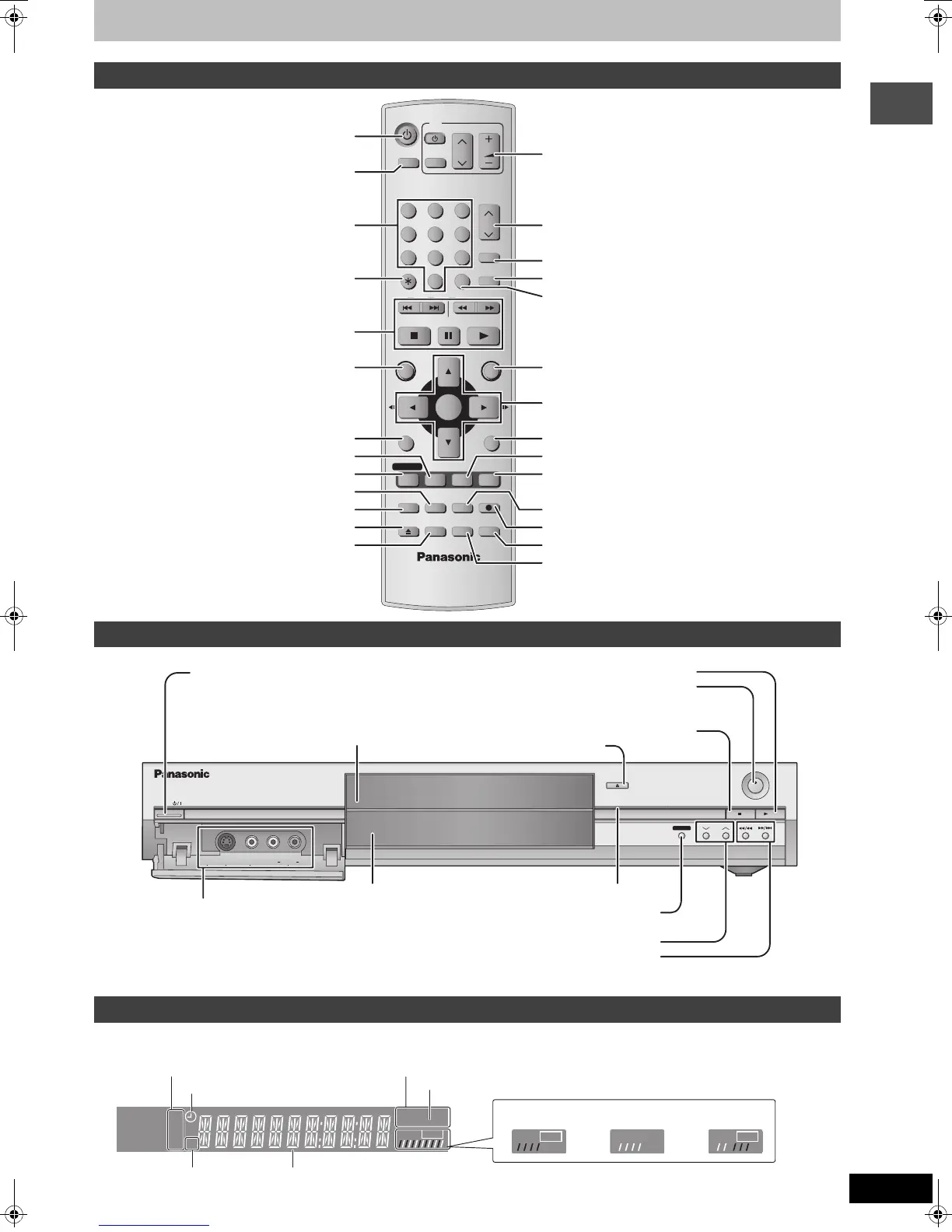

Control reference guide
Rear panel terminals (➡ page 7)
Remote control
POWER
VOLUME
CH
INPUT SELECT
DVD POWER
TV
TV/VIDEO
123
456
78
0
9
CM SKIP
AUDIO
CH
CANCEL
VCR Plus+
SKIP
STOP
PAU SE
PLAY/x1.3
SLOW/SEARCH
FUNCTIONS
ENTER
DIRECT NAVIGATOR
TOP MENU
RETURN
SUB MENU
CHAPTER
ADD/DLT
OPEN/CLOSE
PROG/CHECK
REC MODEERASE
REC
F Rec
TIME SLIP
STATUS
DISPLAY
SETUP
Turn the unit on (➡ page 10)
Input select (L1, L2 or L3)
Select channels and title numbers etc./
Enter numbers
Cancel
Basic operations for recording and play
Show Top menu/Direct Navigator
(➡ page 22, 28)
Show sub menu (➡ page 28)
Show on-screen menu (➡ page 26)
Show timer recording program screen
(➡ page 20)
Erase items (➡ page 24)
Add/delete channel (➡ page 11)
Open/close disc tray (➡ page 16, 22)
Show SETUP menu (➡ page 11, 38)
Television operations (➡ page 14)
Channel select (➡ page 11, 16)
Select audio (➡ page 17, 24)
Skip a minute forward (➡ page 23)
Show VCR Plusr screen (➡ page 19)
Show FUNCTIONS window (➡ page 35)
Selection/Enter, Frame-by-frame (➡ page 10, 23)
Return to previous screen
Show status messages (➡ page 35)
Skip the specified time/Display the television image
as a picture-in-picture (➡ page 17, 23)
Change recording mode (➡ page 16)
Start recording (➡ page 16)
Start Flexible Recording (➡ page 18)
Create chapters (➡ page 24)
Main unit
PULL OPEN
OPEN/CLOSE
REC
/
x
1.3
TIME SLIP
POWER
CH
L2
S-VIDEO IN VIDEO IN AUDIO IN
R
L/MONO
TIME SLIP
Connection for camcorder etc.
(➡ page 18)
Skip the specified time/Display the television image
as a picture-in-picture (➡ page 17, 23)
Channel select (➡ page 11, 16)
Skip/Slow/Search (➡ page 23)
Display (➡ below)
Start play (➡ page 22)
Start recording (➡ page 16)
Remote control signal sensor
POWER button (POWER Í/I) (➡ page 10)
Press to switch the unit from on to standby mode or
vice versa. In standby mode, the unit is still
consuming a small amount of power.
Disc tray (➡ page 16, 22)
Stop (➡ page 16, 22)
Open/close disc tray (➡ page 16, 22)
Time Slip indicator (➡ page 17)
The unit’s display
XP
SP
CH
LP
EP
DVD
VCD
.MIX
R
-
AM
REC
PLAY
Recording mode
Main display section
D.MIX (multi-channel DVD-Audio only)
When lit: Down-mixed audio is played.
When off: The disc prevents down-mixing so only the two front
channels can be played.
Channel
Recording Playback
Recording/
Playback
Timer recording indicator
Disc type
