Panasonic DMR-EA38VK User Manual

7
RQT9058
POWER
POWER
SLOW/SEARCH
S
C
H
E
D
U
L
E
OK
F
U
N
C
T
I
O
N
S
TV/VIDEO
PAUSESTOP
3
2
1
6
54
9
8
7
0
REC MODE
RETURN
SUB MENU
CM SKIP
D
I
R
E
C
T
N
A
V
I
G
A
T
O
R
DISPLAYAUDIO
REC
DRIVE
SELECT
F Rec
STATUS
CHAPTER
CREATE
INPUT SELECT
CANCEL
DELETE
CH
CH
PLAY
VOL
A
B
DVD/VHS
SETUP
TRACKING/V-LOCK
SKIP/ INDEX REW FF
TIME SLIP / JET REW
RESET
 Turn the unit on or off ................................................ ( 10)
 Select drive (DVD, VHS, SD or USB) ......( 14, 15, 31, 32)
 Select channels and recording numbers etc./
Enter numbers .......................................................... ( 28)
 Cancel/Reset the tape counter
 Basic operations for recording and play
 Skip the specifi ed time/
Jet rewind button................................................. ( 29, 34)
 Direct Navigator ........................................................( 28)
 Selection/OK, Frame-by-frame ................................. ( 29)
 Show sub menu .................................................. ( 30, 40)
 Select audio ........................................................ ( 29, 35)
[A] for Recordings screen .......................................... ( 28)
 Show DVD on-screen menu ...................................... ( 50)
[B] for Album View screen ......................................... ( 32)
 Start recording .......................................................... ( 16)
 Change recording mode ........................................... ( 16)
 Transmission window
 TV and Set Top Box operations................................. ( 61)
 Channel select/TRACKING/V-LOCK .................. ( 16, 35)
 Input select (IN1, IN2, DV) .................................. ( 16, 26)
 Sub channel access for digital broadcasts
 Delete items .............................................................. ( 20)
 Skip 1 minute forward ............................................... ( 29)
 Show scheduled recording list .................................. ( 17)
 Show FUNCTIONS window ...................................... ( 37)
 Return to previous screen
 Show setup menu ..................................................... ( 52)
 Create chapters......................................................... ( 29)
 Show status messages ............................................. ( 36)
 Start Flexible Recording ............................................ ( 24)

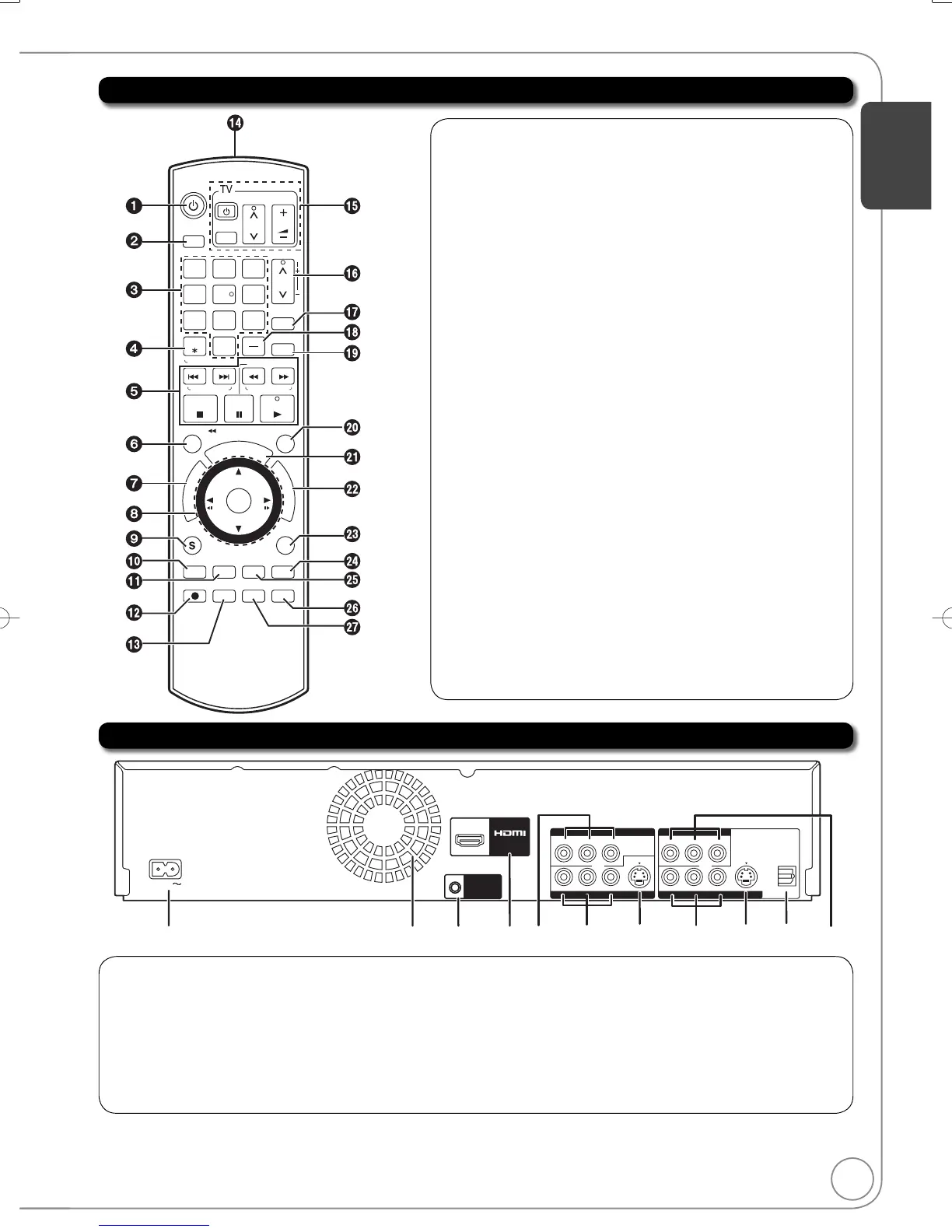

Remote Control
Rear Panel
VIDEO
OPTICAL
VIDEO VIDEO
R-AUDIO-L
R-AUDIO R-AUDIO-L-L
PR
Y
P
B
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
AC IN
S VIDEOS VIDEO
AV OUT
SET TOP BOX
CONTROL
COMPONENT
VIDEO OUT
DVD/VHS COMMON OUT
DVD PRIORITY OUTIN1





  


 AC IN = Power supply
 Cooling fan
 Set Top Box Control terminal ...........................( 8)
 HDMI AV OUT terminal ..............................( 9, 65)
 AUDIO/VIDEO output terminals
(DVD/VHS COMMON OUT) ............( 8, 9, 63–65)
 AUDIO/VIDEO input terminals .........................( 8)
 S VIDEO input terminal
 AUDIO/VIDEO output terminals
(DVD PRIORITY OUT) ............................( 63–65)
 S VIDEO output terminal ................................( 63)
 DIGITAL AUDIO OUT terminal .......................( 65)
 COMPONENT VIDEO OUT terminals ...........( 64)
Getting Started
DMR-EA38VP.indb7DMR-EA38VP.indb7 2007/12/289:25:052007/12/289:25:05
