Notes:

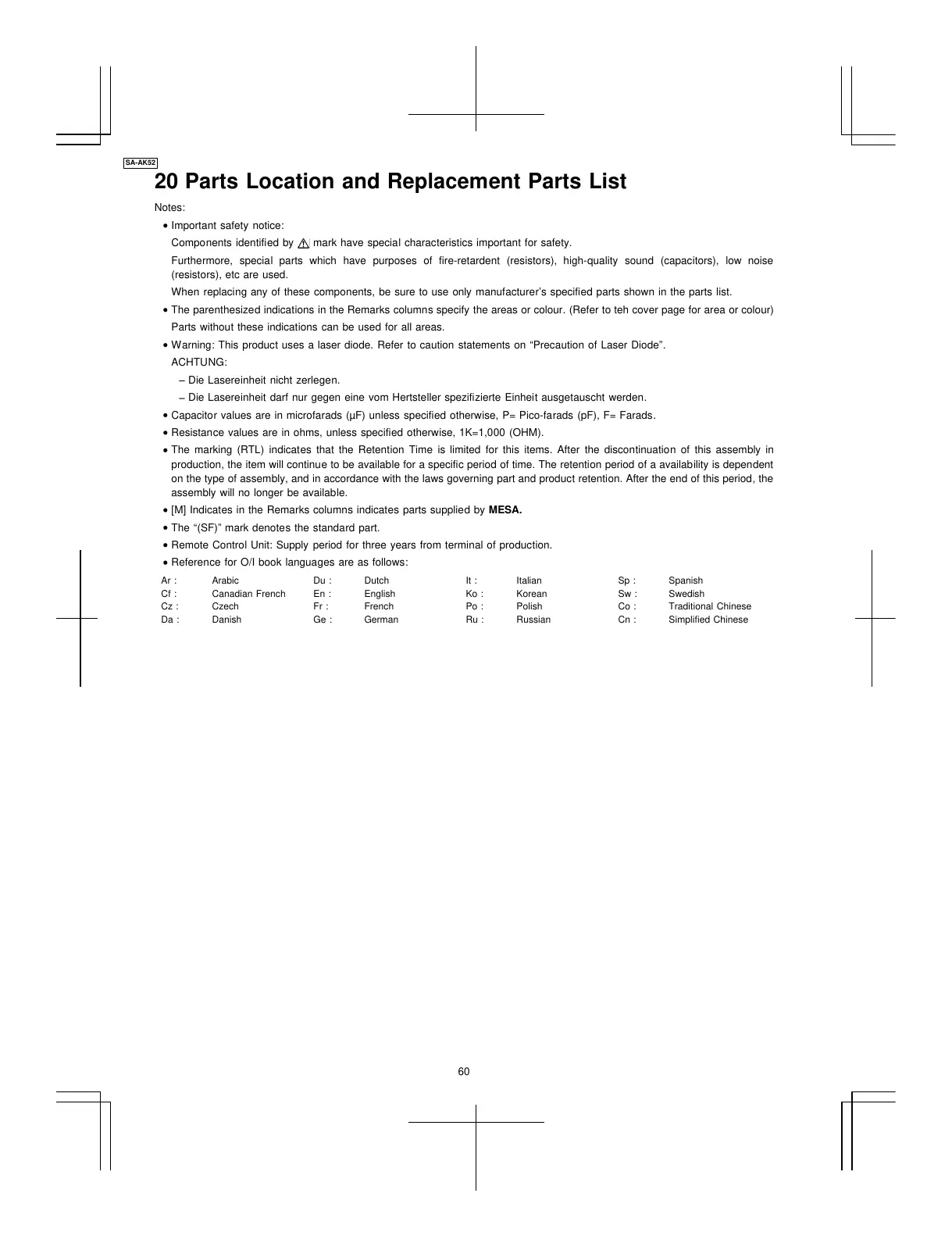

20 Parts Location and Replacement Parts List
• Important safety notice:
Components identified by
mark have special characteristics important for safety.
Furthermore, special parts which have purposes of fire-retardent (resistors), high-quality sound (capacitors), low noise
(resistors), etc are used.
When replacing any of these components, be sure to use only manufacturer’s specified parts shown in the parts list.
• The parenthesized indications in the Remarks columns specify the areas or colour. (Refer to teh cover page for area or colour)
Parts without these indications can be used for all areas.
• Warning: This product uses a laser diode. Refer to caution statements on “Precaution of Laser Diode”.
ACHTUNG:
− Die Lasereinheit nicht zerlegen.
− Die Lasereinheit darf nur gegen eine vom Hertsteller spezifizierte Einheit ausgetauscht werden.
• Capacitor values are in microfarads (µF) unless specified otherwise, P= Pico-farads (pF), F= Farads.
• Resistance values are in ohms, unless specified otherwise, 1K=1,000 (OHM).
• The marking (RTL) indicates that the Retention Time is limited for this items. After the discontinuation of this assembly in
production, the item will continue to be available for a specific period of time. The retention period of a availability is dependent
on the type of assembly, and in accordance with the laws governing part and product retention. After the end of this period, the
assembly will no longer be available.
• [M] Indicates in the Remarks columns indicates parts supplied by
MESA.
• The “(SF)” mark denotes the standard part.
• Remote Control Unit: Supply period for three years from terminal of production.
• Reference for O/I book languages are as follows:
Ar : Arabic Du : Dutch It : Italian Sp : Spanish
Cf : Canadian French En : English Ko : Korean Sw : Swedish
Cz : Czech Fr : French Po : Polish Co : Traditional Chinese
Da : Danish Ge : German Ru : Russian Cn : Simplified Chinese
60
SA-AK52
