1
2
1
2
11

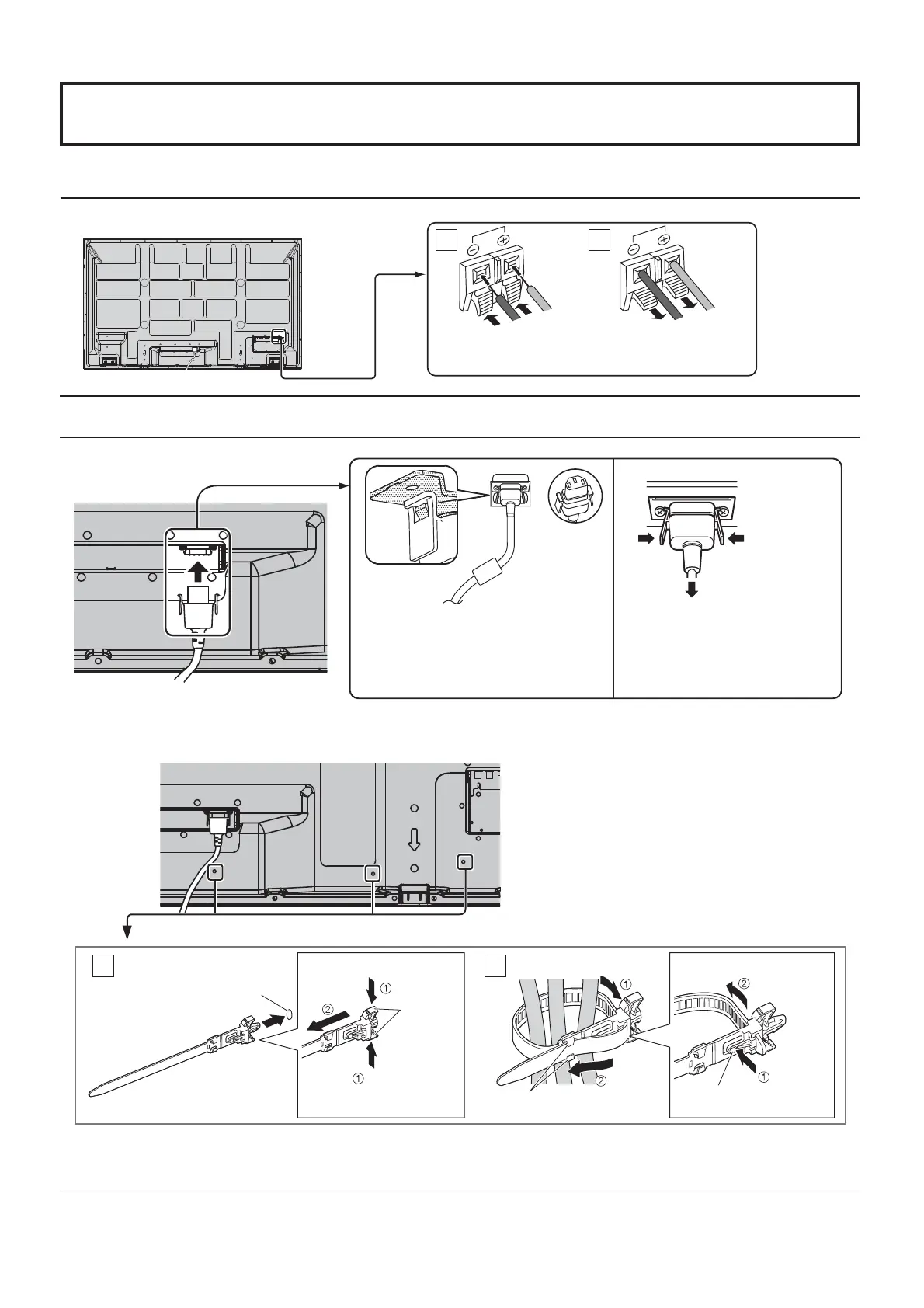

Plug the AC cord into the display unit.
Plug the AC cord until it clicks.
Note:
Make sure that the AC cord is locked on
both the left and right sides.
Connections
AC cord xing
Unplug the AC cord
Unplug the AC cord pressing the
two knobs.
Note:
When disconnecting the AC cord, be
absolutely sure to disconnect the AC
cord plug at the socket outlet rst.
Using the clamper
Secure any excess cables with clamper as required.
Note:
One clamper is supplied with this unit. In case of securing cables at three positions, please purchase it separately.
Note:
Please use 8 /10 W speaker.
AC cord connection and xing, cable xing
Speaker connection
Attach the clamper
To remove from the unit:
Keep
pushing both
side snaps
hole
Bundle the cables
snaps
hooks
Set the
tip in the
hooks
To loosen:
Keep
pushing
the knob
knob
Insert the clamper
in a hole.
Red
Black
While pressing the lever,
insert the core wire.
Red
Black
Return the lever.
To Next Page
