10
1
Y
P
B
P
R
V
L
R
AUDIO
IN
AV2
COMPONENT
RF OUT
RF IN
1
Y
P
B
P
R
V
L
R
AUDIO
IN
AV2
COMPONENT
Cable Cable

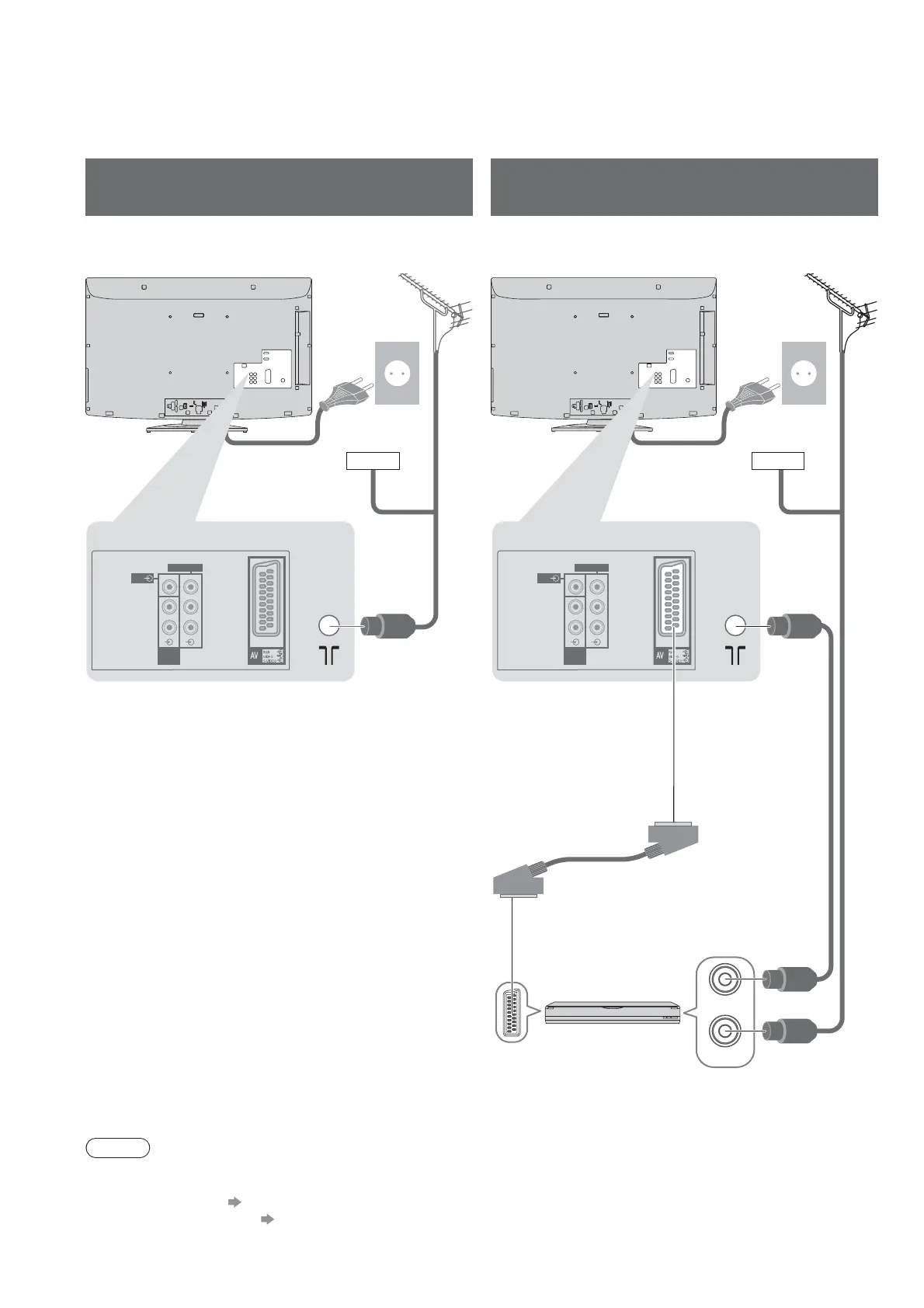

Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
Example 1
Connecting aerial
Example 2
Connecting DVD Recorder / VCR
TV only TV, DVD Recorder or VCR
Note
Connect to the TV’s AV1 for a DVD Recorder / VCR supporting Q-Link (p. 52).
For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2) by using HDMI cable (p. 59).
Q-Link connection p. 50
VIERA Link connection p. 50 and p. 51
Please also read the manual of the equipment being connected.
Mains lead
Mains lead
Fully wired
SCART cable
DVD Recorder or VCR
RF cable
Terrestrial
aerial
Terrestrial
aerial
Rear of the TV Rear of the TV
RF cable
AC 220-240 V
50 Hz
AC 220-240 V
50 Hz
RF cable
To Next Page
