17/12/97 Page 33 Issue H
10.9 Connection Details
The rear terminal block accepts both pre-insulated screw and push-on blade type connectors which
may be used singly or in combination. Each terminal has 1 screw type and 2 blade type connectors.
Screw: Each connection uses a 4mm (M4) screw outlet and accepts standard
L-shaped ring type connectors designed for 4mm screws.
Blade: Each connection facilitates 2 pre-insulated push-on blades 4.8mm
wide 0.8mm thick complying with BS5057.
Combinations: Each terminal will accept either;
2 ring type connectors
or 2 push-on blade type connectors
or 1 ring type connector & 1 push-on blade type connector
1
3
5
7
9
11
13
15
17
19
21
23
25
27
2
4
6
8
10
12
14
16
18
20
22
24
26
28
Earth

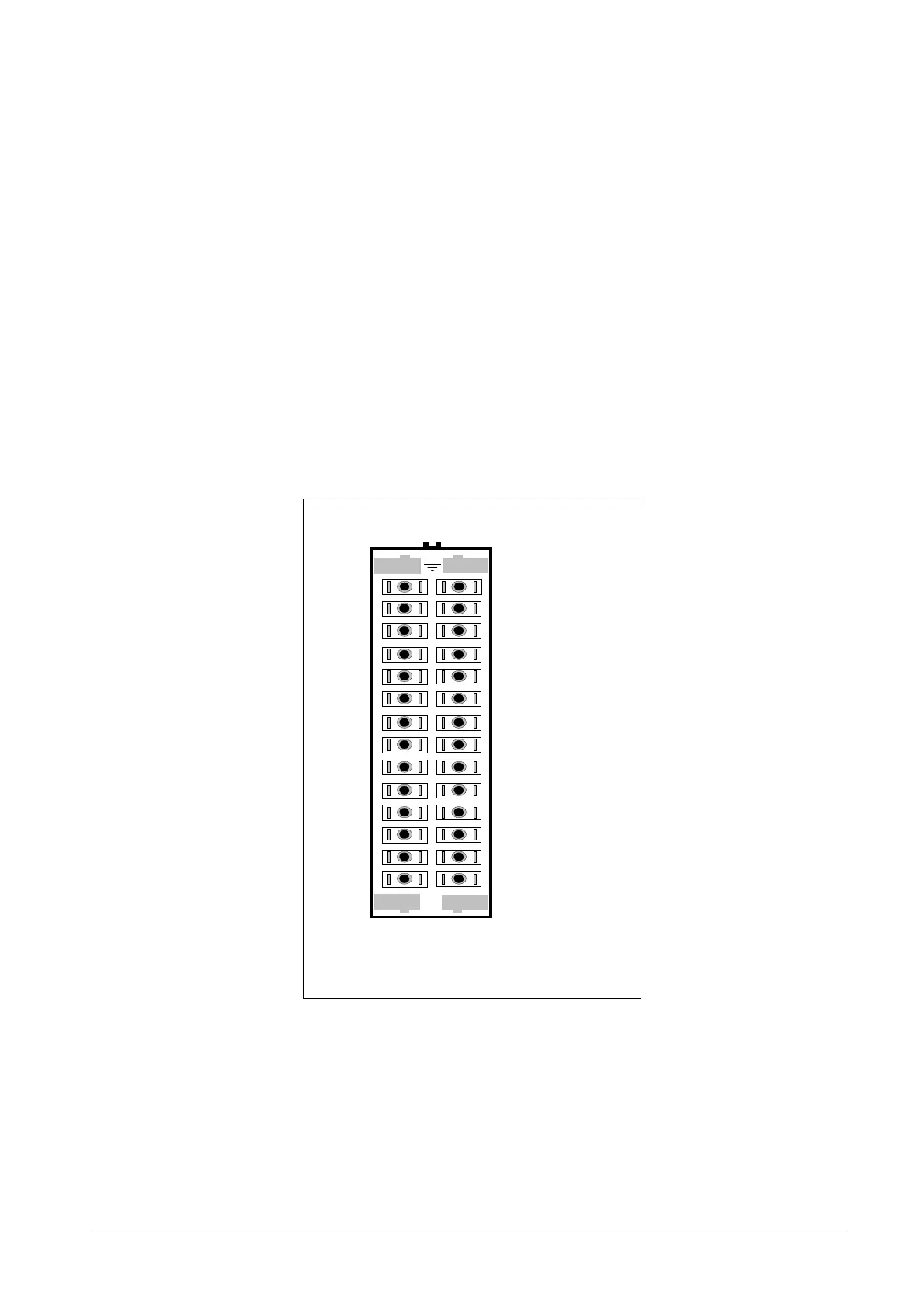

Rear terminal block connections.
Each terminal
1 screw &
2 spade
All information subject to change without notice
Publication number MPR 3E5 Issue H
