Menu
Sensor
Auto
Calibration
Gap
Black mark
Continuous
Preprint
Manual
Calibration
Standard
Gap
Black Mark
Continuous
Threshold
Detect
Auto
Fixed
Maximum
Length
BMark
Transmitter
Back Side
Front Side
Advanced
Min. Paper
Max. Gap/Mark

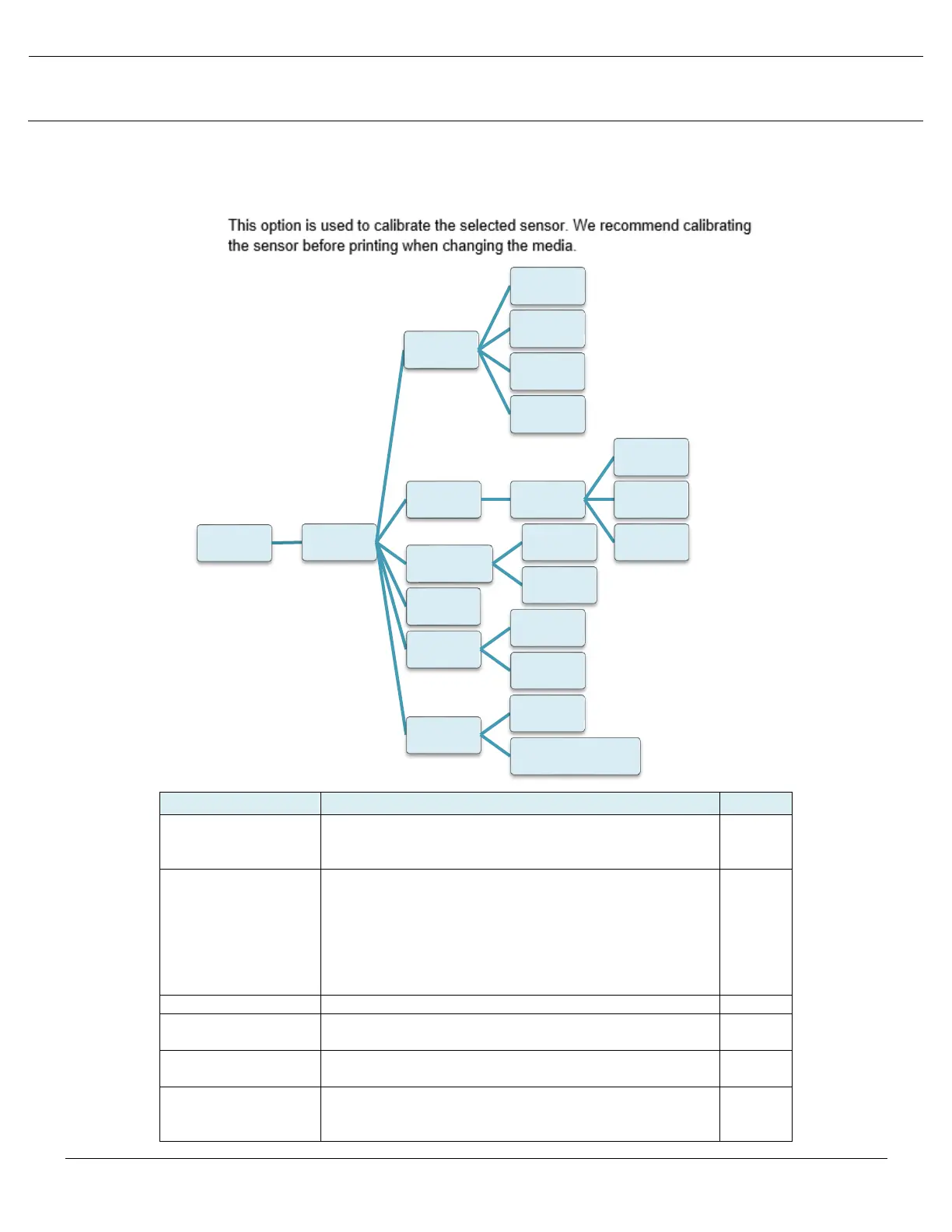

3.5 Sensor Overview
Item
Description
Default
Auto Calibration
This option is used to set the media sensor type and calibrate
the selected sensor automatically. Printer will feed 2 to 3 gap
labels to calibrate the sensor sensitivity automatically.
N/A
Manual Setup
In case “Automatic” cannot apply to the media, please use
“Manual” function to set the paper length and gap/bmark
size then scan the backing/mark to calibrate the sensor
sensitivity.
Note: The “Media Capacity” item is used to calibrate the
media capacity sensor %.
N/A
Threshold Detect
This option is used to set sensor sensitivity in fixed or auto.
Auto
Maximum Length
This option is used to set the maximum length for label
calibration.
254 mm
BMark Transmitter
This option is used to set upper black mark sensor or the
lower black sensor as the main transmitter.
Back
Side
Advanced
This function can set the minimum paper length and
maximum gap/bmark length to auto calibrate the sensor
sensitivity.
0 mm
