3–7

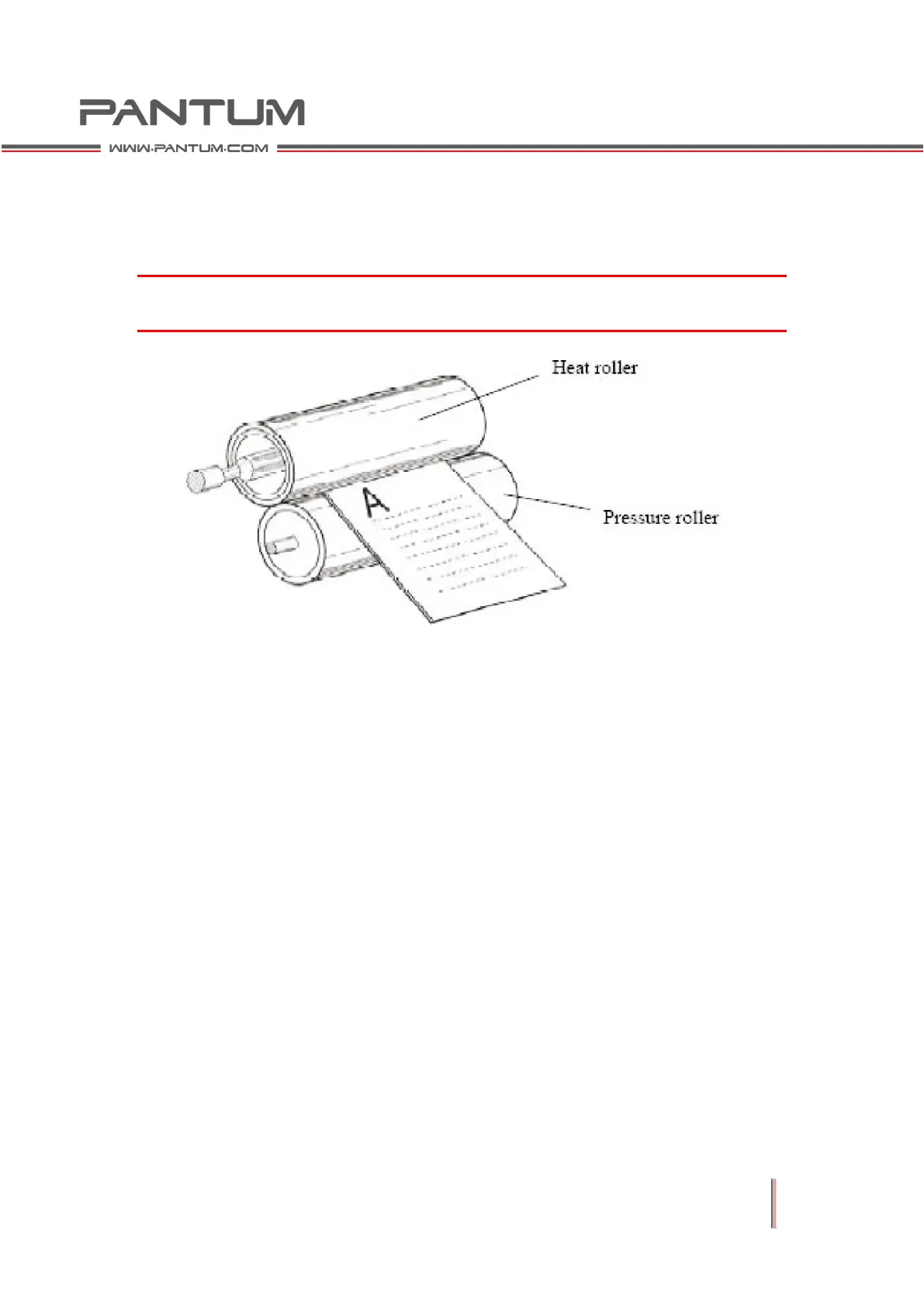

3.4.5 Fusing
When the paper moves onto the heating roller, the toner is melted at a specific
temperature. The pressure poller (PR) then presses the toner into the paper
fibers, curing it to the paper.
Note: If the fusing temperature is too high or too low, toner fusing results will be
affected.
3.4.6 Cleaning
As the toner on the surface of the OPC is not completely transferred to the paper, it
must then be cleaned by a blade before the next round of the imaging process.
