Prop. Directional Control Valve
Series D*FB / D*1FB
Operation Manual
Parker Hannifin CorporationParker Hannifin Corporation
D_FB-D_1FB_10-12 5715-669 UK.indd 25.06.19
• The valve may be mounted fix or movable in
any direction.
• Verify the mounting surface for the valve. Un-
evenness of 0.01 mm /100 mm, surface finish of
6.3 µm are tolerable values.
Keep clean valve mounting surface and work
environment!
• Remove protection plate from the valve mount-
ing surface
• Check the proper position of the valve ports
and the O-rings.
• Mounting bolts:
D1FB: 4 pcs. M5x30
D3FB: 4 pcs. M6x40
D31FB: 4 pcs. M6x40
D41FB: 2 pcs. M6x55 / 4 pcs. M10x60
D91FB: 6 pcs. M12x75
D111FB: 6 pcs. M20x90
Use property class 12.9, ISO 4762
Tighten the bolts crisscross with the following
torque values:
Insufficient condition of the valve mounting
surface might create malfunction! Incorrect
mounting resp. bolt torque may result in abrupt
leakage of hydraulic fluid on the valve ports.
Pressure fluids
The following rules apply for the operation with var-
ious pressure fluids: The above information serves
for orientation and does not substitute user tests
among the particular operating conditions. Partic-
ularly no liability for media compatibility may be
derived out of it.
Mineral oil: usable without restrictions
For operation with the following pressure fluids
please consult Parker:
For detailed information concerning pressure flu-
ids note VDMA-document 24317 as well as DIN
51524 & 51502.
Special gaskets may be available depending on
the utilized fluid. In case of insecurity please con-
sult Parker.
Electrical connection
The electrical connection of the valve takes place
by one common cable, which is coupled to the in-
tegrated electronic driver by a central connector
assembly.

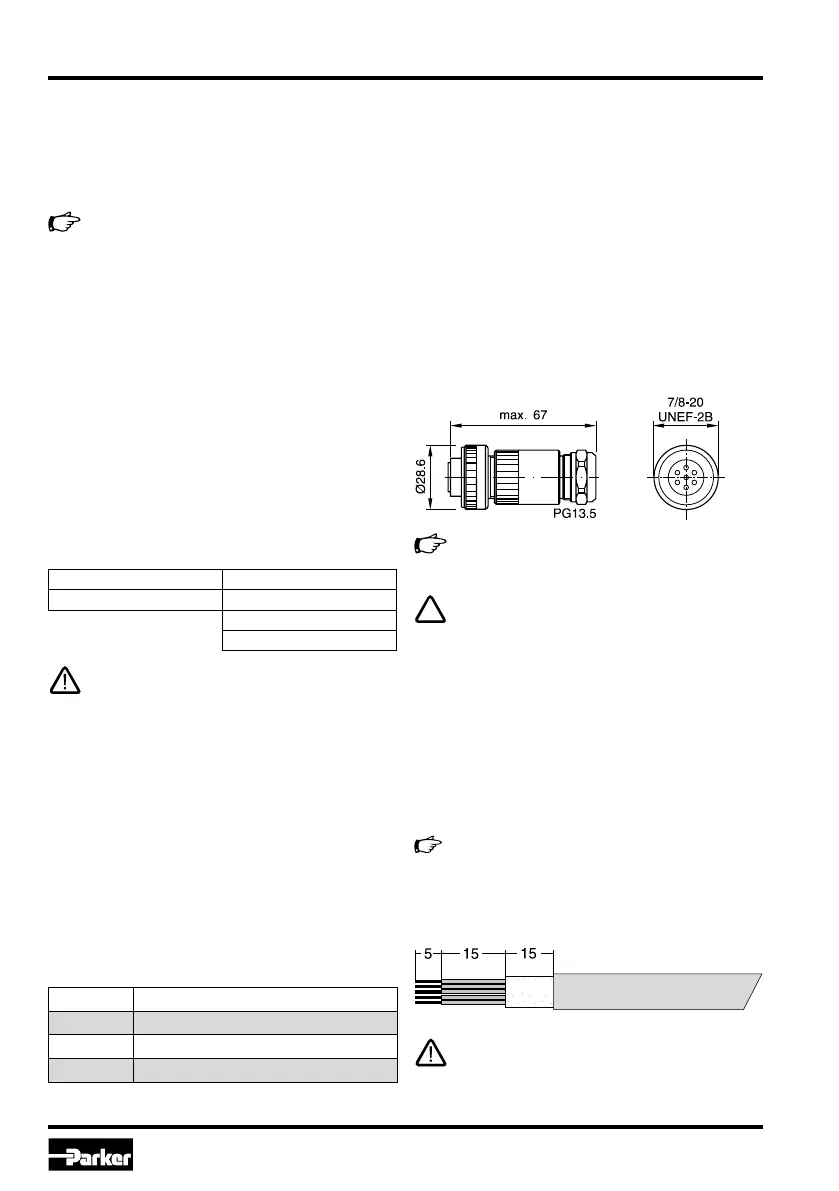

The connection Codes F0, G0, M0, S0 requires a
6 + PE female connector EN 175201-804.
HFA Oil-in-water emulsion
HFB Water-in-oil emulsion
HFC Aqueous solution (glycols)
HFD Unhydrous fluids (Phosphor-Ester)
The female connector has to be ordered sep-
arately under article nr. 5004072.
A female connector with metal housing is re-
quired! Plastic made models may create func-
tion problems due to insufficient EMC-char-
acteristics.
The connecting cable has to comply to the follow-
ing specification:
Cable type control cable, flexible, 7 conduc-
tors, overall braid shield
Cross section min. AWG16/1.0 mm
2
Outer dimension 8...12 mm
Cable length max. 50 m
For cable lengths > 50 m consult Parker.
The connection cable is coupled to the female con-
nector by solder joints.
Skinning lengths for the connecting cable:
Do not disconnect cable socket under ten-
sion!
D1FB: 7.6 Nm D31FB: 13.2 Nm
D3FB: 13.2 Nm D41FB: 13.2/63 Nm
D91FB: 108 Nm
D111FB: 517 Nm
