PSTK 800 B2
■ 6
│
GB
│
IE
│
NI
Initial operation
Fitting/changing the saw blade
Always remove the plug from the power socket
before working on the appliance.
♦ Remove the pivoting guard
.
♦ Turn the quick-release chuck
and hold it in
this position.
♦ Press the required saw blade into the quick-
release chuck
as far as the limit stop.
♦ Release the quick-release chuck
– it must
return to its initial position. The saw blade is
now locked.
■ WARNING! The saw blade teeth must point
forwards at this point (see foldout page)!
♦ Replace the pivoting guard
back onto the
device.
Fitting the guide fence
The guide fence can be fixed on the left or right
of the appliance.
♦ Undo both the clamping screws on the insertion
openings
.
♦ Push the guide fence
into the insertion open-
ings .
♦ Retighten the two clamping screws.
Connecting the sawdust extraction
appliance
♦ Push the reducer
into the extraction connector
until it is secured.
♦ Attach an approved dust and sawdust extractor
to the reducer
or extraction connector
directly.

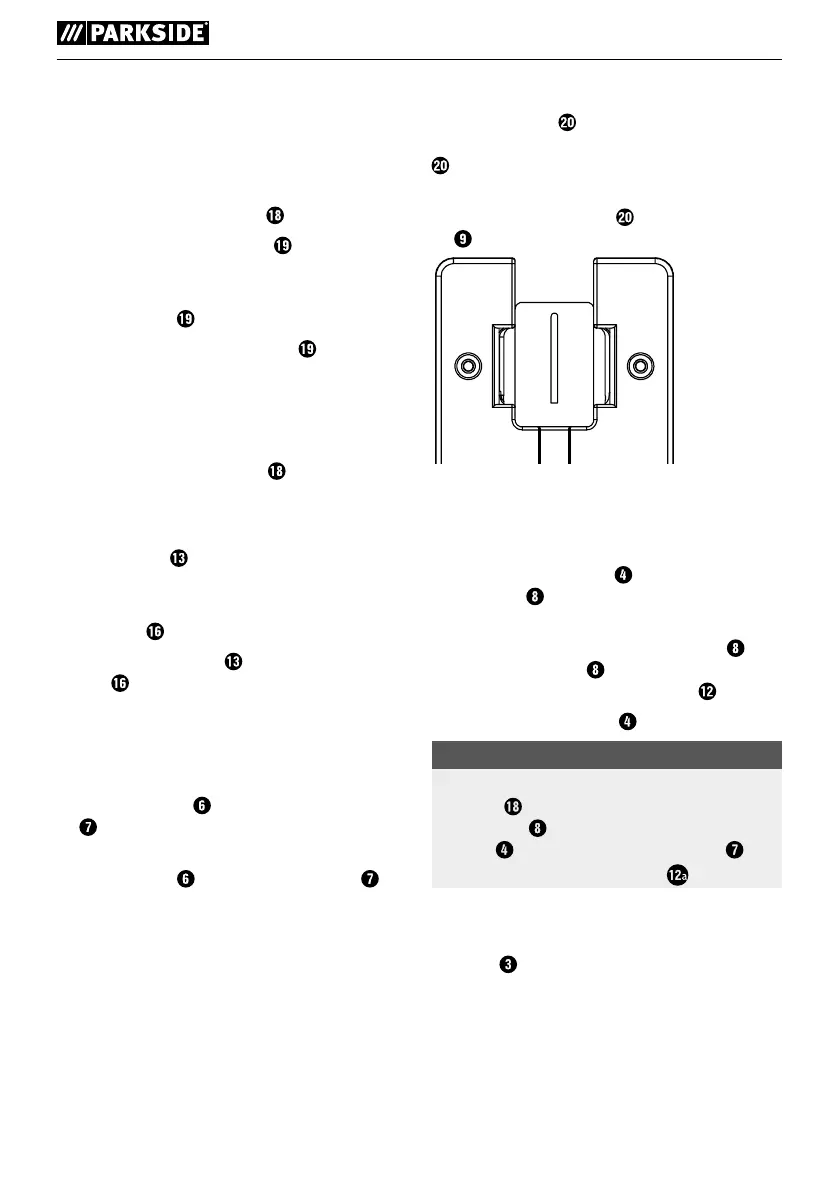

Fitting the splinter guard
The splinter guard can prevent the tearing up of
the surface when sawing wood. The splinter guard
can only be used with certain sawblade types
and only at a cutting angle of 0°.
♦ Press the splinter guard
into the sliding shoe
from below (arrow facing upwards).
Operation
Setting the cutting angle
♦ Push the clamping lever forward and pull the
baseplate to the front.
♦ Adjust the cutting angle to 0°/ 22,5°/ 45° with
the aid of the markings on the baseplate
.
Push the baseplate to the rear so that the
locking pin engages in the toothing .
♦ Push the clamping lever
backwards.
NOTE
► With a cutting angle of 22,5°/ 45°, the pivoting
guard
must be removed beforehand! If the
baseplate cannot be locked well by clamping
lever
, remove the extraction connector ,
then tighten the clamping screw
with hex key.
Setting the stroke rate
♦ Use the stroke rate preselection adjusting
wheel to set the required stroke rate.
