Parkside 328024 2001 User Manual

20
GB IE
Extent of the delivery
Carefully unpack the appliance and check
that it is complete:
- Interchangeable cordless screwdriver
- Battery-charger
- 14 Bits, 25 mm
- Extension bit holder, 50 mm
- Utility belt
- Instruction manual

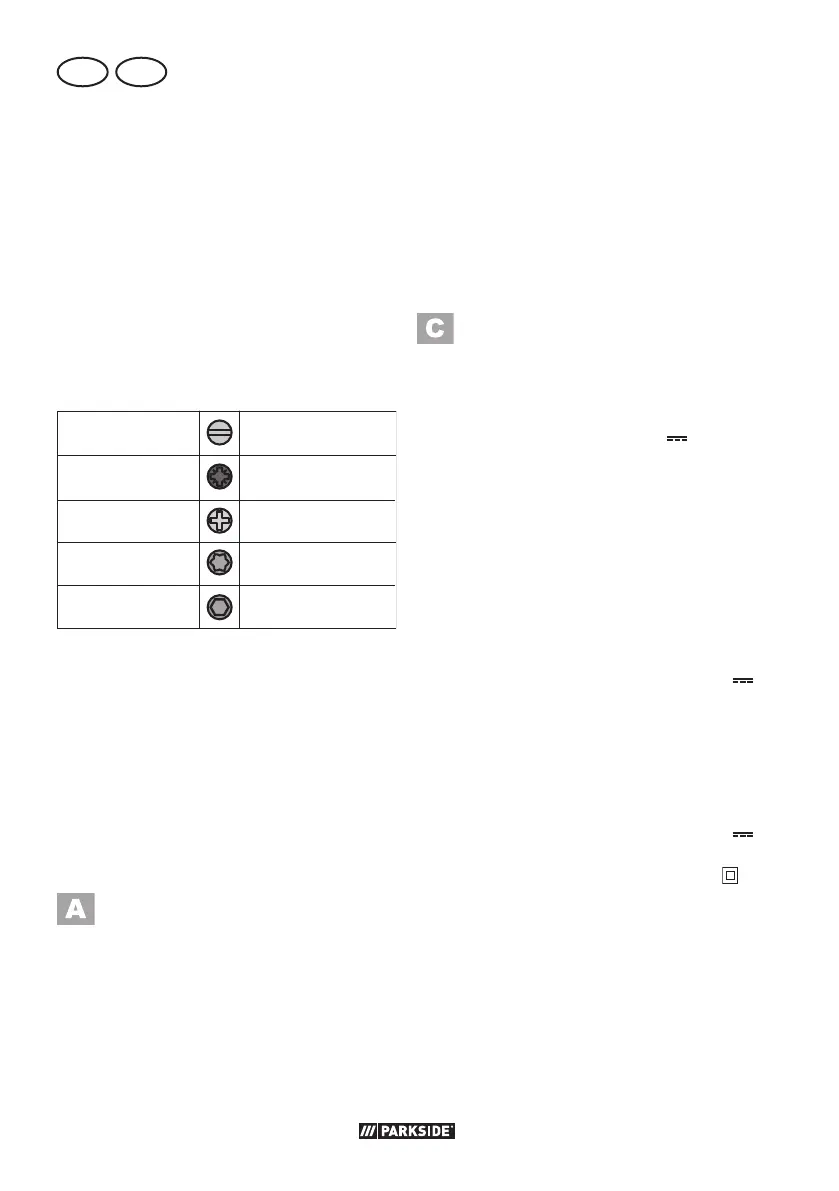

14 bits:
SL
PZ
PZ1 • PZ2 • PZ3
PH1 • PH2 • PH3
T15 • T20 • T25
H4 • H5
PH
T
H
4 • 5 • 6
Slot
No.
No.
No.
No.
No.
Cross
Cross
Torx
Hexagonal
Functional description
The interchangeable cordless screwdriver
clockwise/anti-clockwise rotation has a bit
changeable drum (can be fi tted 9 times
with 25 mm bits), a 6-point bit holder and
an LED work light.
Maximum torque of 7 Nm.
Overview
1 Transport safety
2 Bit
3 Bit holder
4 Slide of the interchangeable
cordless screwdriver
5 Battery Indicator
6 Charging socket (not visible)
7 LED working light
8 Direction of rotation switch
9 On/off switch
10 5 Exchange bits with holder
11 Battery-charger
11.1 Mains plug
11.2 USB charging cable
11.3 Charging socket, mains plug
12 Extension bit holder
13 Utility belt
14 Bit change drum
Technical data
Appliance
Motor voltage U .............3.6 V
; 1.5 Ah
Idling speed (n
0
) .......................200 min
-1
Weight (without battery charger) ..0.48 kg
Sound pressure level
(L
pA
) ................... 56.4 dB(A); K= 3 dB
Sound power level
(L
WA
) .........................67.4 dB(A); K= 3 dB
Vibration (a
h
) ........ 0.412 m/s
2
; K= 1.5 m/s
2
Battery (Li-Ion)
Battery cells ......................................... 1
Nominal voltage ........................ 3.6 V
Capacity ..................................... 1.5 Ah
Charging time .............................ca. 1 h
Recharger ..... WJG-Y 13 0 502100WU
Nominal consumption ..................... 24 W
Uptake voltage ..... 100-240 V~, 50-60 Hz
Voltage output ...............................5 V
Output current ............................2100 mA
Protection class .................................
II
Protection category ..........................IPX0
Temperature .......................max 50 °C
Charging process ...................4 - 40 °C
Operation .......................... -20 - 50 °C
Storage .................................0 - 45 °C
This charger is only suitable for charging
the device type Rapidfi re 2.1.
