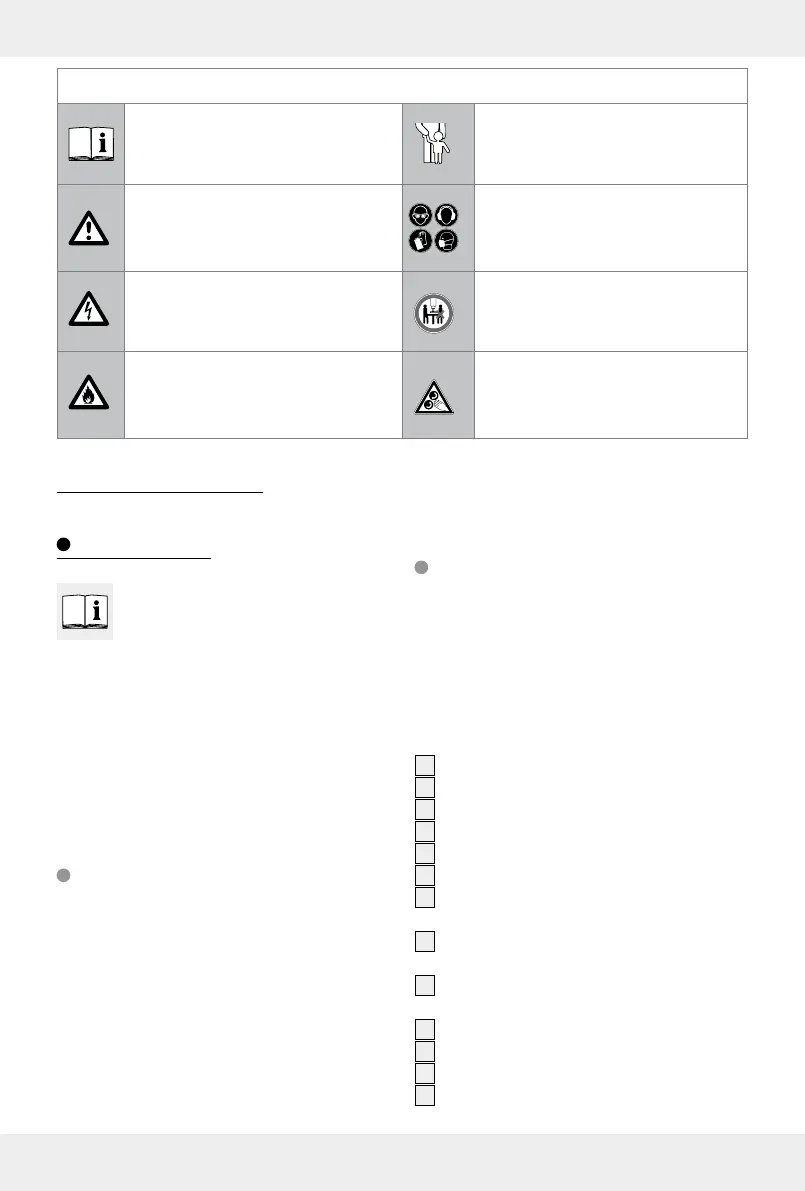

List of pictograms used
Read instruction manual!
Never leave children unsupervised
with the packaging materials or the
product.
Observe caution and safety notes!
Wear protective glasses, hearing
protection, protective gloves and
dust protection mask.
Caution – electric shock!
Danger to life!
Do not allow anyone else to come
within the working range of the
product while you are using it.
Risk of fire!
Avoid any backwards movement
and apply even pressure on the
workpiece.
Angle grinder stand
Introduction
We congratulate you on the purchase
of your new product. You have chosen
a high quality product. Familiarise
yourself with the product before using it for the
first time. In addition, please carefully refer to the
operating instructions and the safety advice below.
Only use the product as instructed and only for
the indicated field of application. Keep these in-
structions in a safe place. If you pass the product
on to anyone else, please ensure that you also
pass on all the documentation with it.
Proper use
This product is intended to provide a method of
holding a hand-held angle grinder in a fixed posi-
tion while using it for cutting. The product is suita-
ble for most hand-held angle grinders that take a
disc 115 or 125 mm diameter disc. Any use
other than that described above or modification
to the product is not permitted and could lead to
injury and/or damage to the product. The manu-
facturer accepts no liability for loss or damage
arising from improper use. The product is not in-
tended for commercial use.
Description of parts
and quantities
Check that all the items and accessories are
present and that the product and its all parts
have no defects immediately after unpacking
(see Fig. 1). Do not assemble the product if any
of the included items listed below are missing.
1
Adjustment screw with rubber buffer (short) x 1
2
Metal rod x 1
3
Handle x 1
4
Wing nut (guard mount) x 1
5
Safety guard x 1
6
Plastic bushing M6 / M8 x 2 each
7
Washer (mounting bolt M6 / M8 / M10)
x 1 each
8
Mounting bolt M6 / M8 / M10 (angle
grinder) x 2 each
9
Nut (mounting bolt M6 / M8 / M10 angle
grinder) x 2 each
10
Distance piece (60/90/130 mm) x 1 each
11
Front mounting piece x 1
12
Plastic locating piece (mounting piece) x 2
13
Adjustment screw with rubber buffer (long) x 1
To Next Page
