Discharge Section (2” Diameter Pipe)

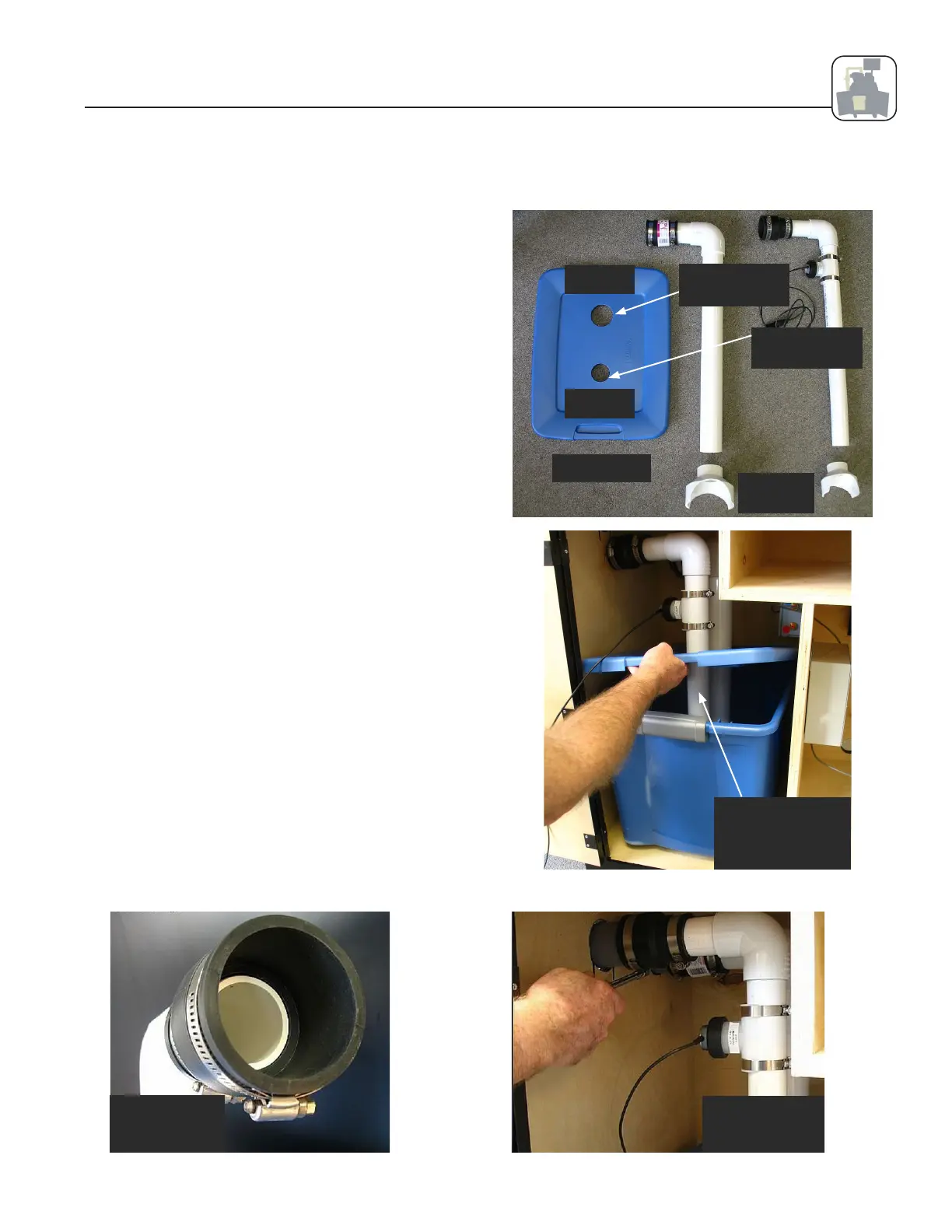

1. Place the straight end of 2” diameter pipe through
the 2” hole in lid of the water tub.
2. Install the large white diffuser onto the bottom end of
the pipe.
Suction Section (1½” Diameter Pipe)
1. Install the lower pipe end through the corresponding
1-1/2” diameter opening in the top of the water
bucket by feeding the leg down through the lid
openings.
2. Install the small white diffuser onto the bottom end
of the pipe. Do not glue the diffusers. The diffusers
will need to be removed if cleaning or replacing the
water tub.
3. Slide the water tub, lid, and pipes into the open area
on the left side of the kiosk cabinet with the 1 1/2”
diameter suction pipe section positions toward the
front doors.
Installing White PVC Piping (Inside Cabinet)
Flexible Coupling Connections
1. Install both ends of the coupling connections onto
corresponding white PVC and gray PVC piping.
2. Align each pipe to be sure pipe ends are flush.
Tighten with a 5/16” nut driver. (Do not over-tighten;
clamps may strip and possibly cause leaking).
3. Route the flow sensor connector through the cabinet
divider wall, and plug into the DAQ-202 “Black Box”.
Pipe end flush
with inside edge
of flexible piping
Align pipe clamps
for easy access
to cabinet front
Water tub lid
1½” Diameter
Suction pipe
White
Diffusers
Install with 1½”
suction pipe toward
front of cabinet as
shown.
2” Hole
1½” Hole
2” Diameter
Discharge pipe
