Refrigerator/Beverage Center/Wine Res/Beer Dispenser
ITEM
NUMBER
DESCRIPTION
ITEM
NUMBER
DESCRIPTION
1 Compressor 6 Capillary Tube
2 Condenser 7 Heat Exchanger
3 Condenser Fan 8 Evaporator
4 Drier 9 Evaporator Fan
5 N/A 10 Temperature Control
Return to Table of Contents

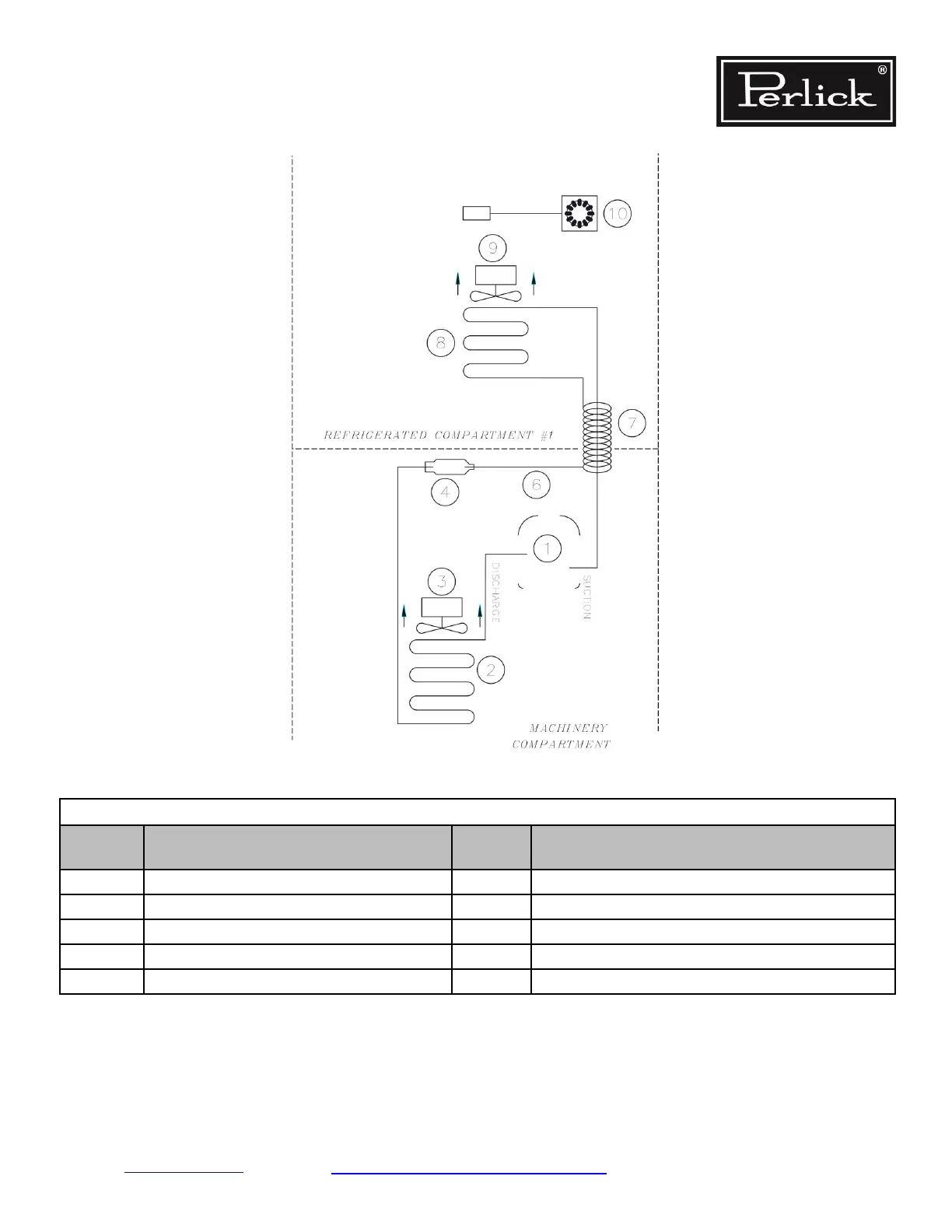

Figure 7-18. Med Temp Refrigeration System Diagram
Residential Refrigeration
and Front Venting Commercial Refrigeration
Service Manual
Refrigeration System Repair Instructions Page 7-18
