Perlick HA24RB User Manual

ITEM
NUMBER
DESCRIPTION
01 Digital Controller (Must Specify Temp. Zone)
02 3 Posion Switch
03 Blue & White LED Light Board (Not Shown)
04 Led Light Cover (Not Shown)
05
Led Driver
06 Temperature Probe
07 Temperature Probe Clip
08 Evaporator Fan Motor
09 Evaporator Fin Coil
10 L&S Line (Not Shown)
11 Main Control Box Wire Harness (Not Shown)
12 Dc Fan Motor Wire Harness (Not Shown)
13 Led Driver to Led Light Board Wire Harness (Not Shown)
Return to Table of Contents
Residential Refrigeration
and Front Venting Commercial Refrigeration
Service Manual

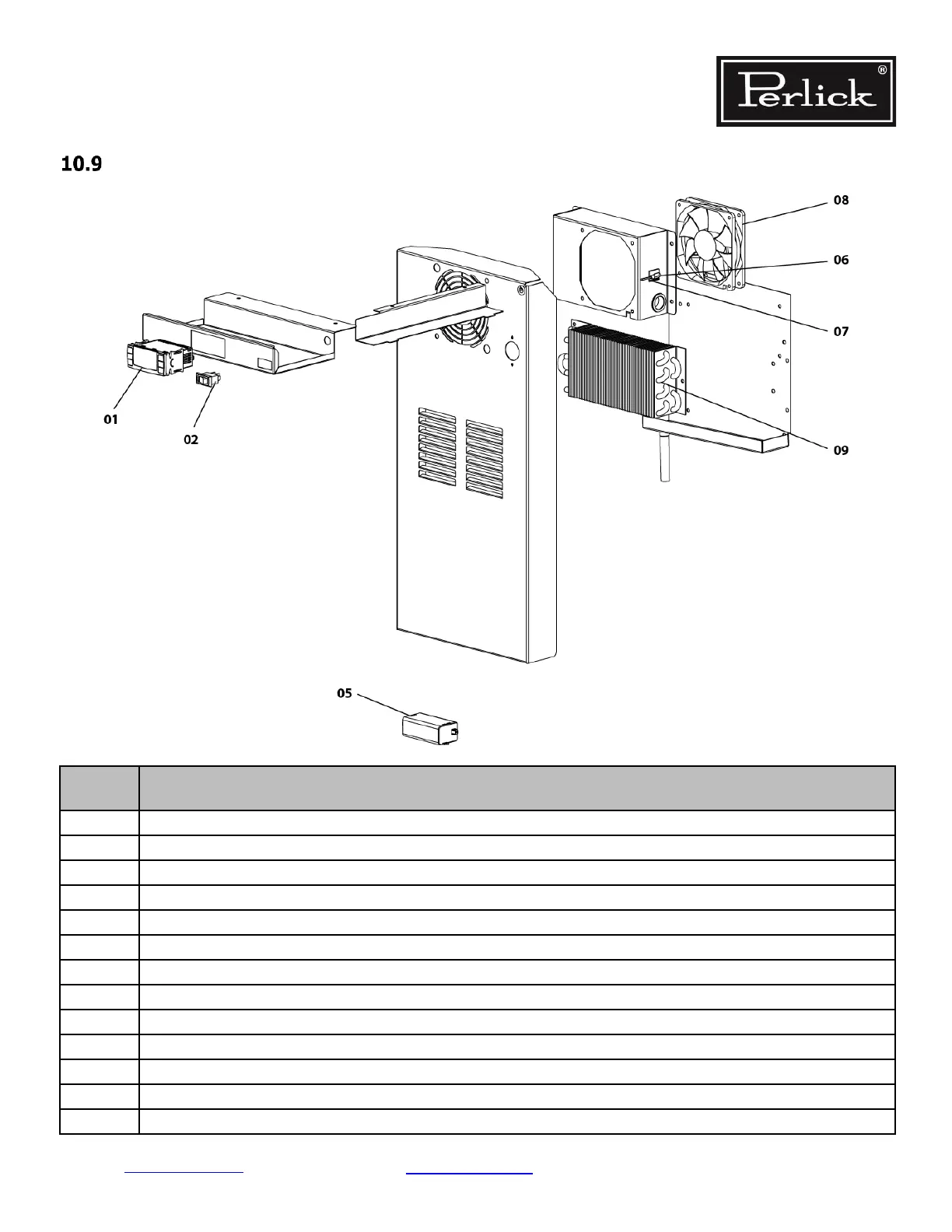

HP15 Cabinets – Evaporator Compartment Service Parts
Replacement Parts Page 10-9
