5.0 Pre-work checks:
5.1.1 Check the machine is stable with the support stand lowered and the pin in place
(fig 5.1.1).
5.1.3a Check the engine oil level (Fig 5.1.2a - See also 6.2 and Engine instruction manual).
5.1.4a Check the engine air filter (see Section 6.4)
5.1.5 Check the fasteners for tightness.
5.1.6 Check the cutter is free to turn.
5.1.6.1 If blocked, remove the drive guard and, using a bar through the hole in the cutter
spindle, manually turn the cutter until free of any obstruction (Fig. 5.3a).
5.1.6.2 Check the tightness of blade bolts and the condition of the blades. See 6.7 for
cutter blade servicing.
5.1.6.3 Remove any loose material.
5.1.7 If any bolts are loose, refer to the maintenance section for any further action.
5.1.8 Check the discharge chute and the flap is in the desired position and that all the
clamps are tight (see Section 4.3)
5.1.10 Check the infeed rubber flaps are intact. Have them replaced, if damaged, before
recommencing any operations.
5.1.11 Check the work area and place the warning signs and traffic cones around the
discharge area, if necessary.
5.1.12 Check that ALL applicable safety procedures have been followed.

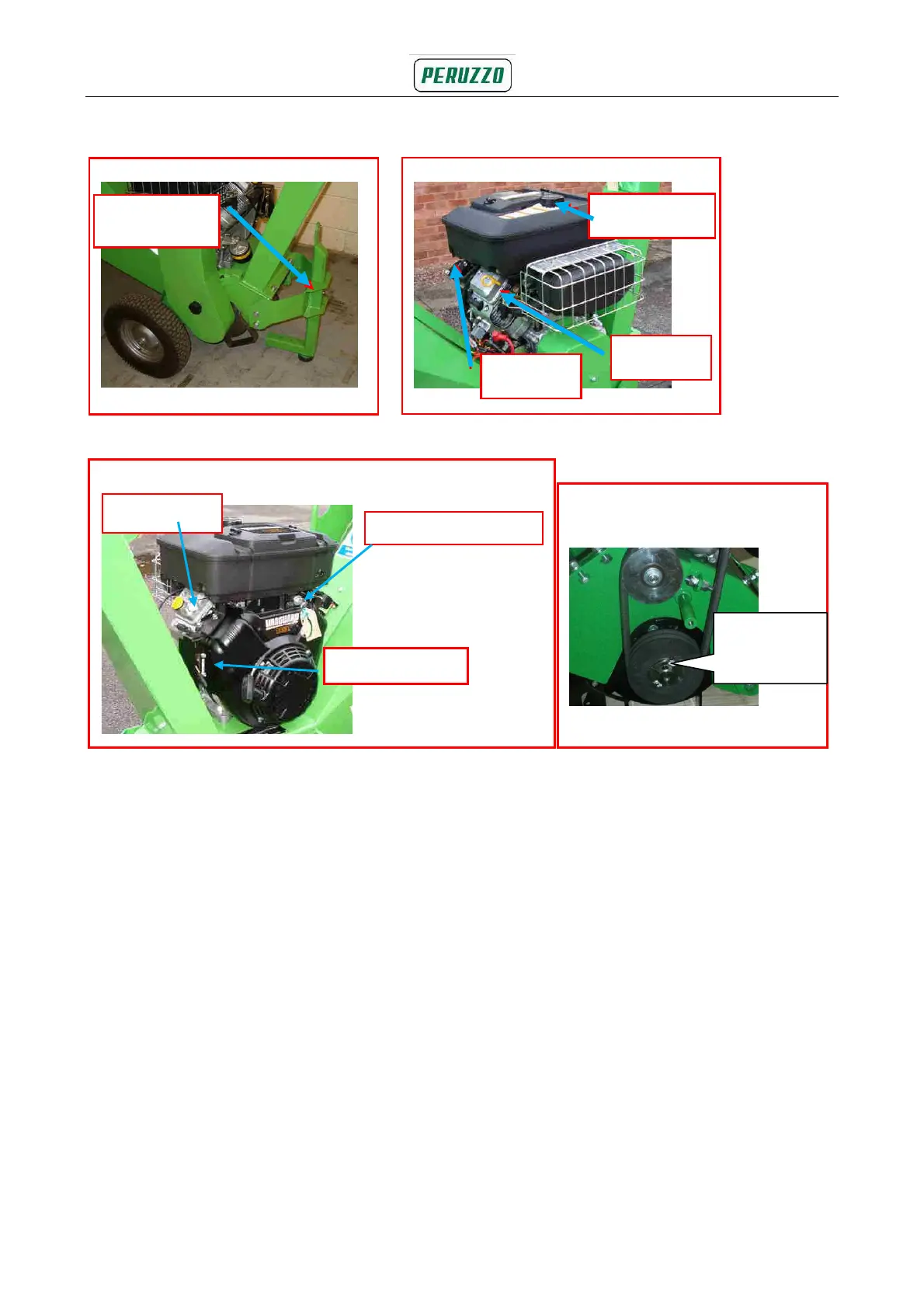

Fig. 5.3a Unblocking
the rotor
Fig. 5.2a Engine controls
Fig. 5.1.1 Support
Support and
pin
Fig. 5.1.2a Engine oil and fuel
Fuel intake
Fuel tap
Dipstick
Start-up/stop
Throttle
Air valve
Hole for rotor
unblocking bar
