Mounting and commissioning the machine

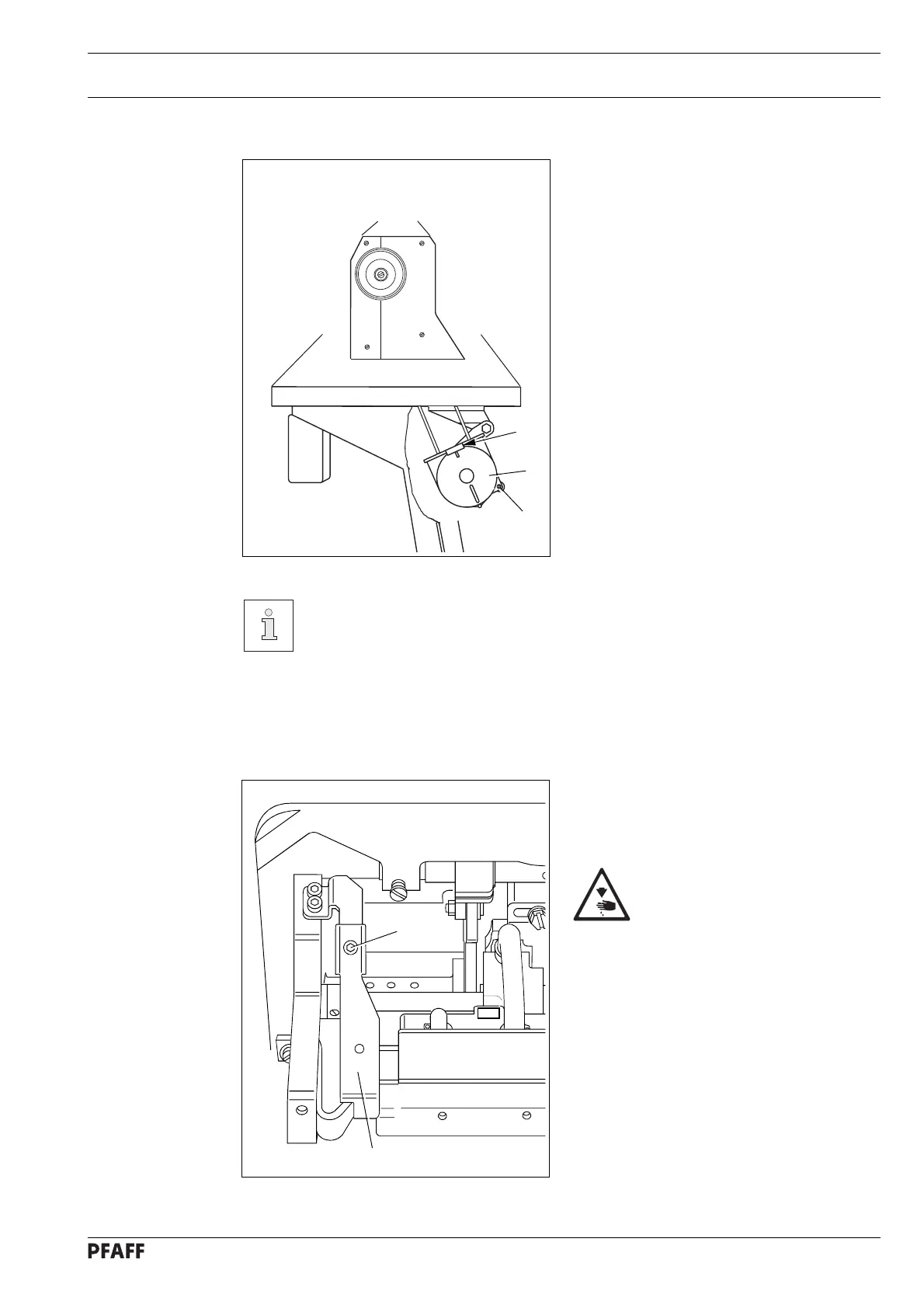

Fig. 8 - 04 shows a Quick motor. If another motor is used, proceed as described
in the motor’s instruction manual.
Fig. 8 - 04
8
7
8
8.01.04 Mounting the lower V-belt guard
● Align belt-guard 7 in such a way that both
the motor pulley and the V-belt run freely.
● Tighten screws 8.
● Screw-mount tilt-over safeguard 1
included in the accessories with screw 2.
Do not operate the machine
without tilt-over safeguard 1!
Danger of crushing between
upper part and table top!
8.01.05 Mounting tilt-over safeguard
Fig. 8 - 06
1
2
