Pfaff 1245 User Manual

Adjustment
11 - 28
11.05.09 Catch
Requirement

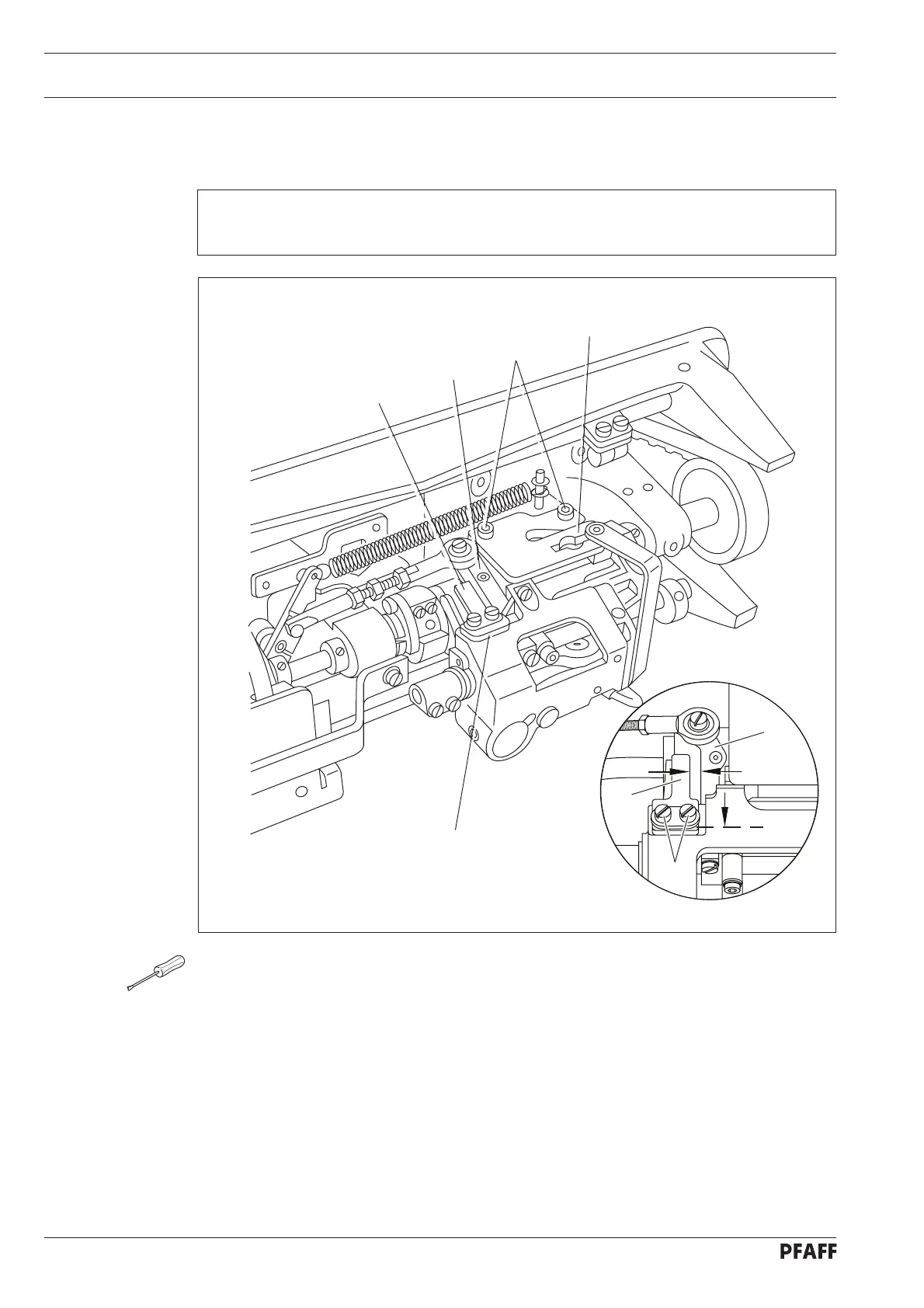

With the cut-off mechanism in resting position, there must be a distance of approx. 5 mm
between catch 1 and control lever 6.
1
4
5
6
2
3
1
6
5 mm
● Lightly affix catch 1 and cover plate 2 using screws 3.
● Move catch 1 as far as possible in the direction of the arrow and then move it laterally in
accordance with the requirement.
● In this position, tighten screws 3.
● Using screws 5, screw plate 4 on.
Fig. 11 - 25
