Adjustment
11 - 5
11.
04.04
P
re-adjusting the needle height
Requirement
With the needle bar at BDC, the dist
ance between the needle bar and the needle plate
must be
15 mm.
●
Mo
ve needle bar
1
(screw
2
) in accordance with the
requirement
without mo
ving it
laterally
.

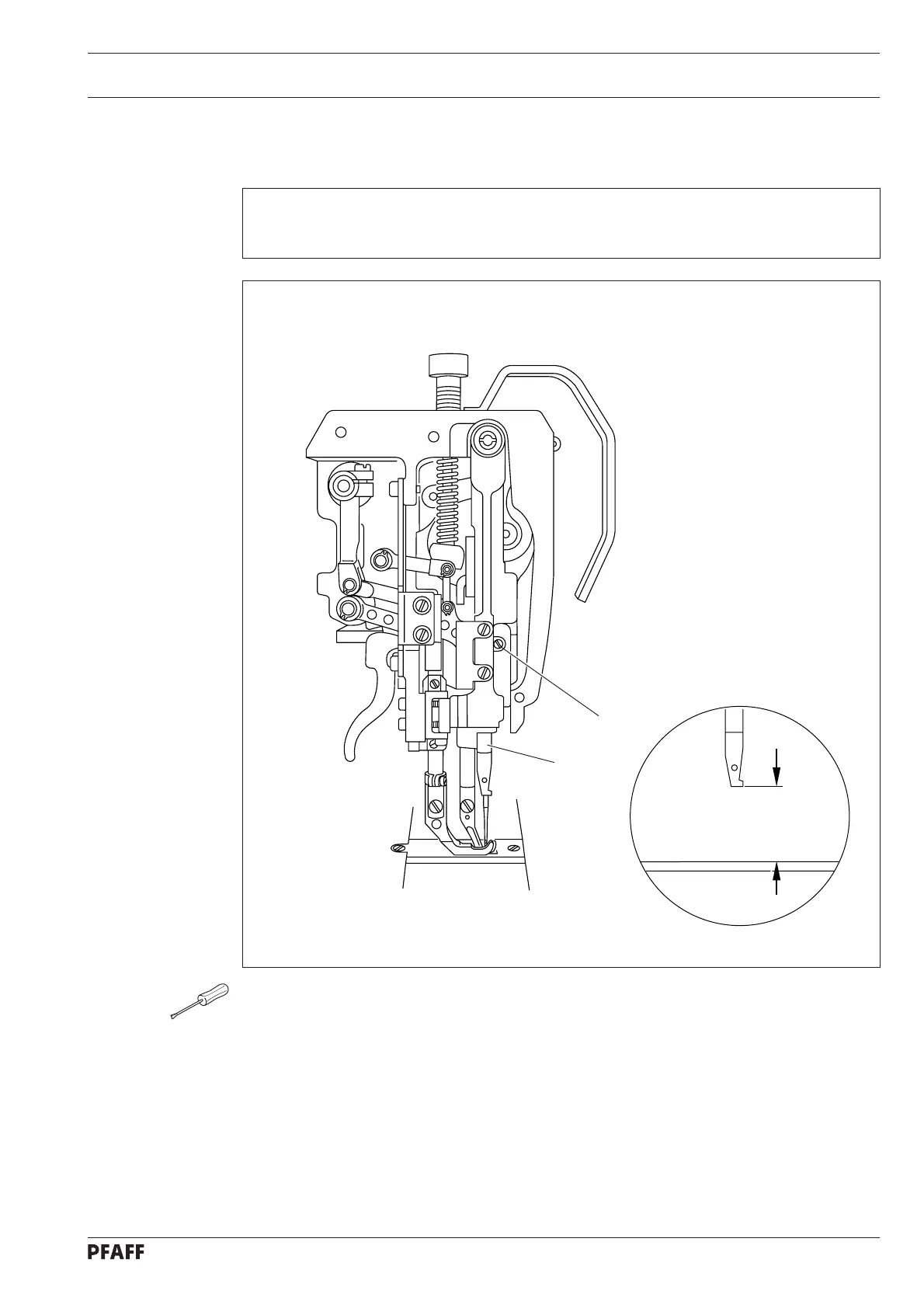

Fig. 11 - 04
1
2
15 mm
44
46
Table of Contents
Instruction Manual
1
Specifications
2
Table of Contents
3
Safety
6
Directives
6
General Notes on Safety
6
Safety Symbols
7
Important Points for the User
7
Operating and Specialist Personnel
8
Operating Personnel
8
Specialist Personnel
8
Danger
9
Proper Use
11
Specifications
12
Max. Number of Stitches/Min
13
Disposal of the Machine
16
Transport Packaging and Storage
17
Transport to the Customer
17
Transport Within the Customer's Premises
17
Disposal of the Packaging
17
Storage
17
Explanation of the Symbols
18
Controls
19
Mounting and Commissioning the Machine
23
Mounting
23
Adjusting the Table-Top Height
23
Adjusting the V-Belt Tension
24
Mounting the Upper V-Belt Guard
24
Mounting the Lower V-Belt Guard
25
Mounting Tilt-Over Safeguard
25
Mounting the Spool Holder
26
Mounting the Sewing Lamp
26
Table Top Cutout
27
Pfaff 1245
27
Pfaff 1246
28
Commissioning the Machine
29
Switching the Machine On/Off
29
Preparation
30
Removing/Threading the Bobbin Case
33
General Lubrication
36
Checking the Air Pressure
36
Adjustment
41
Positioning the Feed Dog Across the Direction of Sewing
42
Positioning the Feed Dog in the Direction of Sewing
43
Height of the Bottom Feed-Dog
44
Pre-Adjusting the Needle Height
45
Centering the Needle in the Needle Hole
46
Lifting Motion of the Bottom Feed-Dog
47
Driving Motion of the Bottom and Top Feeds
48
Hook-To-Needle Clearance, Needle Rise, Needle Height and Needle Guard
49
Top-Feed Stroke
51
Lifting Motion of the Top Feed
52
Bobbin-Case Opener
53
Safety Clutch
54
Needle Thread Tension Release
55
Thread Check Spring
56
Thread Check Spring on PFAFF 1246 with Thread Trimmer -900/56
57
Bobbin Winder
58
Presser-Foot Pressure
59
Pre-Adjusting the Control Cam
60
Tripping Lever
61
Pawl
62
Engaging Solenoid
63
Release Trip
64
Engaging Lever
65
Linkage Rod
66
Final Adjustment of the Control Cam
67
Catch
68
Connecting Rod (for PFAFF 1246 Only)
69
Thread-Catcher Height
70
Knife
71
Thread Catcher Reverse Position
72
Bobbin-Thread Clamp Spring
74
Tension Release Bar
76
Positioner
78
Wearing Parts
79
