Adjustment
13 - 31

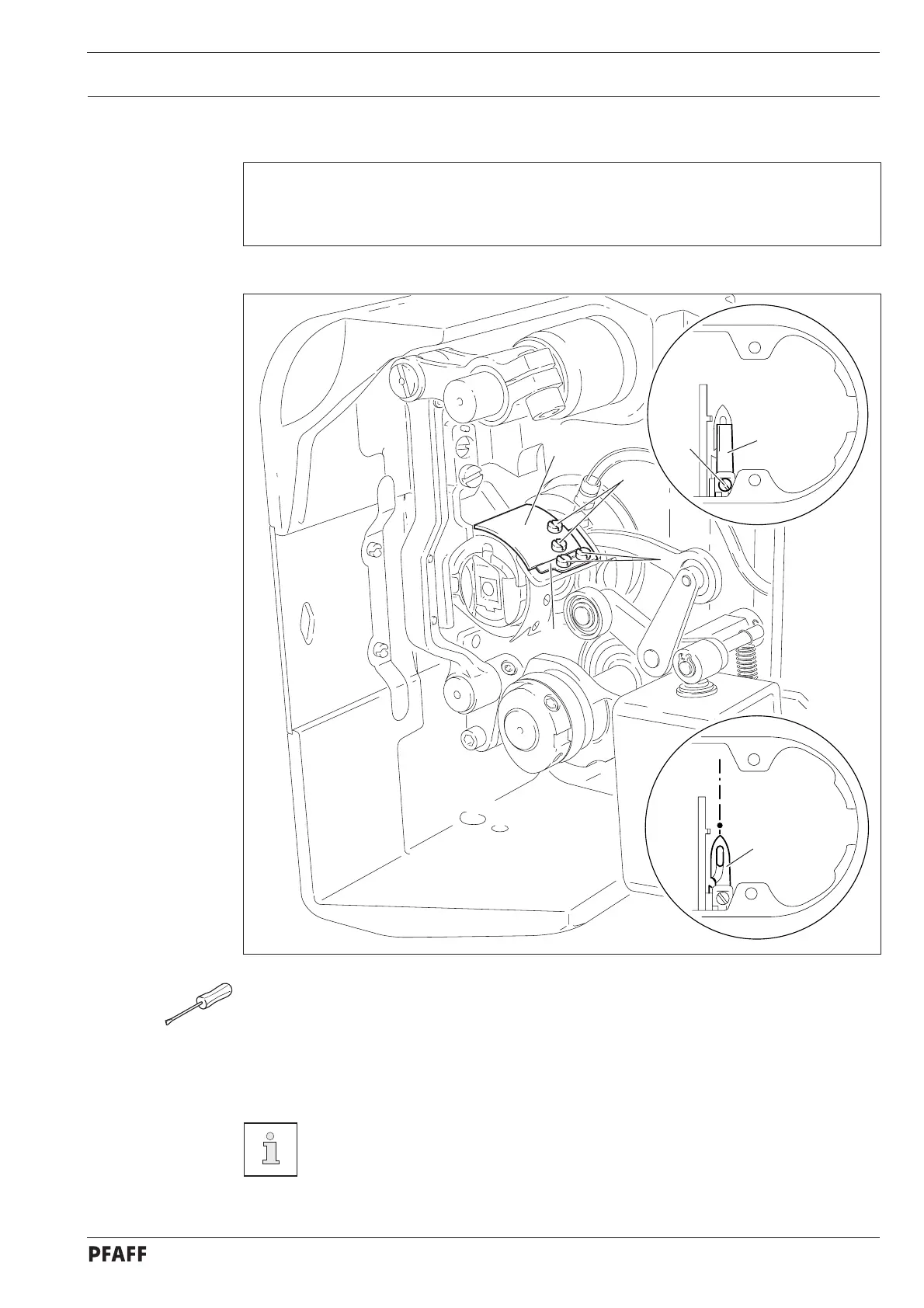

13.07.02 Lateral alignment of the thread catcher
Requirement
1. The tip of the thread catcher 5 must point exactly to the center of the needle.
2. The thread catcher 5 must be horizontal. It must not graze anything when it is operating.
● Remove knife 1 (screw 2).
● Move needle bar to its BDC.
● Loosen stop 3 (screws 4).
● Position thread catcher 5 (screw 6) manually in front of the needle.
● Align thread catcher 5 (screws 7) according to the requirements.
For further adjustments, leave knife 1 removed and stop 3 loosened.
Fig. 13 - 29
6
5
3
1
2
5
6
