2.03 Control panel

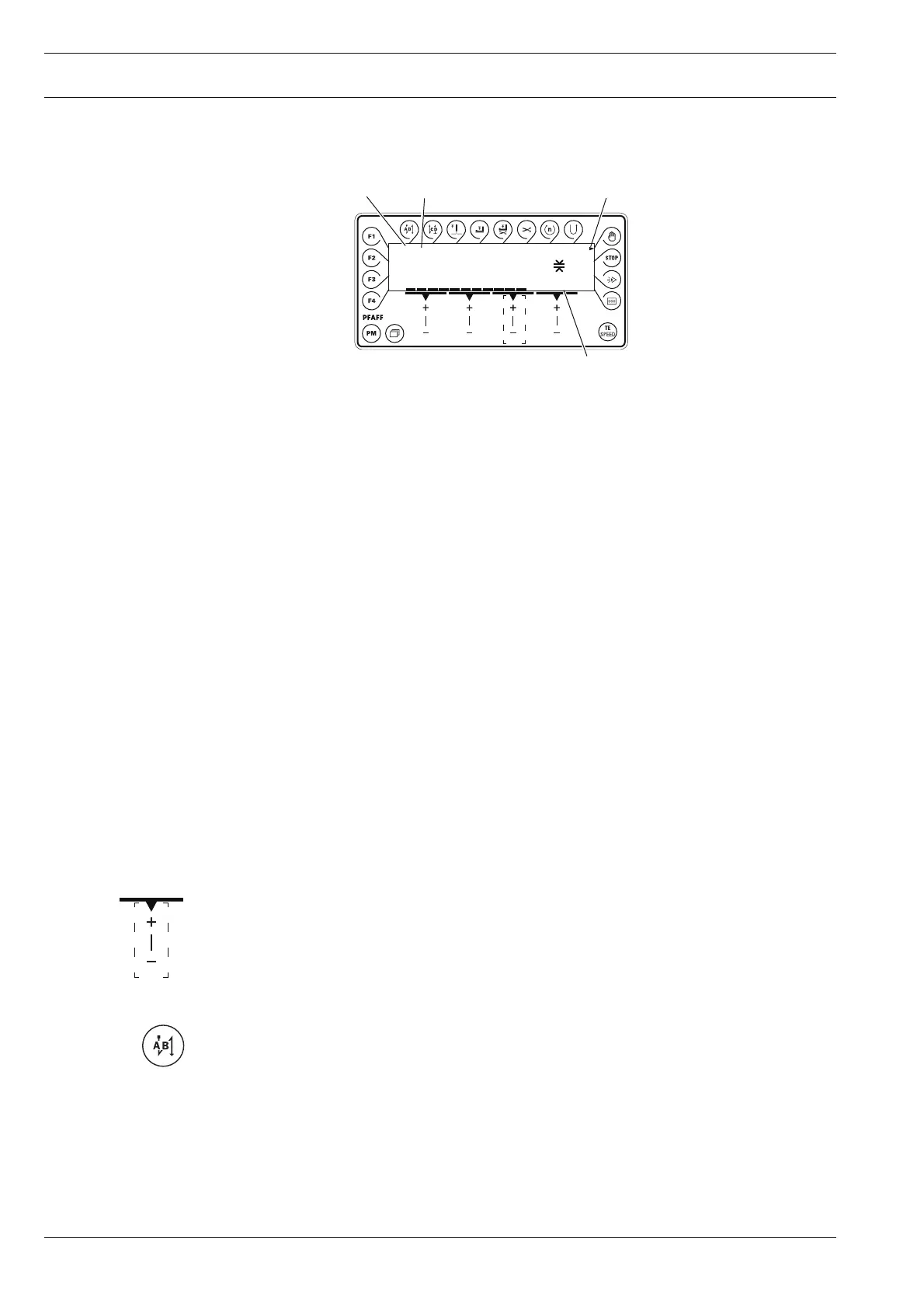

The control panel consists of display 1 and the function keys described below. Display 1
consists of a two-row, alpha-numerical display with 16 symbols per row. The texts 3 show
the respective status of the function keys and the operating modes of the machine.
During the power-on phase the control panel automatically switches on all LCD segments
and the horn. The number of the version of the installed software then appears on the
display, until the higher-ranking control unit sends commands to the control panel.
2.03.01 Screen displays
● Activated functions are displayed with a triangular marking 2 below or next to the
respective function key.
● In the sewing mode all relevant sewing data is displayed and these can be changed
directly, depending on the status of the machine, see also Chapter 5 Sewing.
● During the parameter input the selected parameter number with the corresponding value
is displayed, see Chapter 2.02.03 Selecting/changing parameters.
2.03.02 Function keys
The function keys described below are used basically to switch machine functions on and
off.
If a corresponding value has to be set for the activated function, this is carried out with the
corresponding +/- key. By pressing and holding the corresponding +/- key, the appropriate
numerical value 4 is changed slowly to begin with. If the corresponding +/- key is held down
longer, the values change more quickly.
Start backtacks
If this key is pressed, the backtacks at the beginning of the seam (start backtacks) are
switched on or off. The number of forward stitches (A) or reverse stitches (B) for the start
backtacks can be changed by pressing the +/- key underneath. To convert from double
backtack to single backtack set the corresponding number of stitches at zero.
4000 PUL 30%
2.0mm
Speed
3
12
4
