Philips GC8220 Service Manual

GC8220
4-9

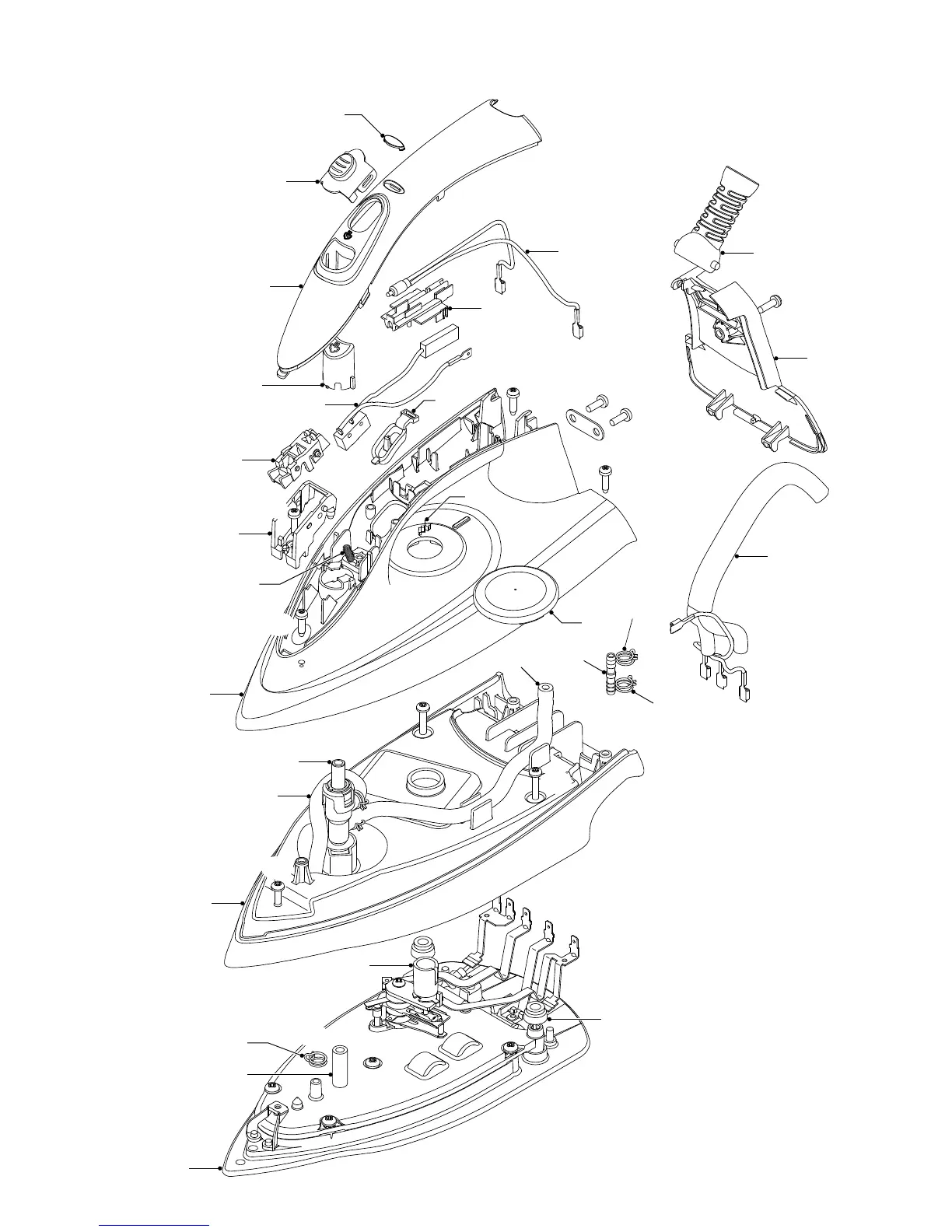

EXPLODED VIEW - IRON
6
5
13
22
4
26
9
10
11
16
17
27
24
19
23
20
21
2
7
8
12
14
15
1
3
18
25
A
S
N
L
E
B1
B2
D3
Hose
clip (a)
Hose
clip (b)
E2
D2
C
D1
E1
E3
28
22

Philips GC8220 Specifications

Power

voltage	230 V
frequency	50-60 Hz
boiler wattage	1200 W
iron wattage	800 W

Water Tank

water tank capacity	1.4 liter
cord length	2.5 m
hose length	1.9 m

Weight and Dimensions

weight (including packaging)	6.06 kg
dimensions	350 X 350 X 250 mm
