Philips GC8220 Service Manual

GC8220
6-9
PARTS LIST - STAND & BOILER WIRING DIAGRAM
Wire WE4: PCB-Fuse
Wire WE3: PCB-HE
Wire WE6: PCB-EV B
Wire WE5: PCB-EV A
Wire WE8: Earth-EV
Wire WE7:
HE Fuse
Electrovalve
Thermistor
Thermistor
Fuse
(Thermofuse)
Loctite
Darbond
620

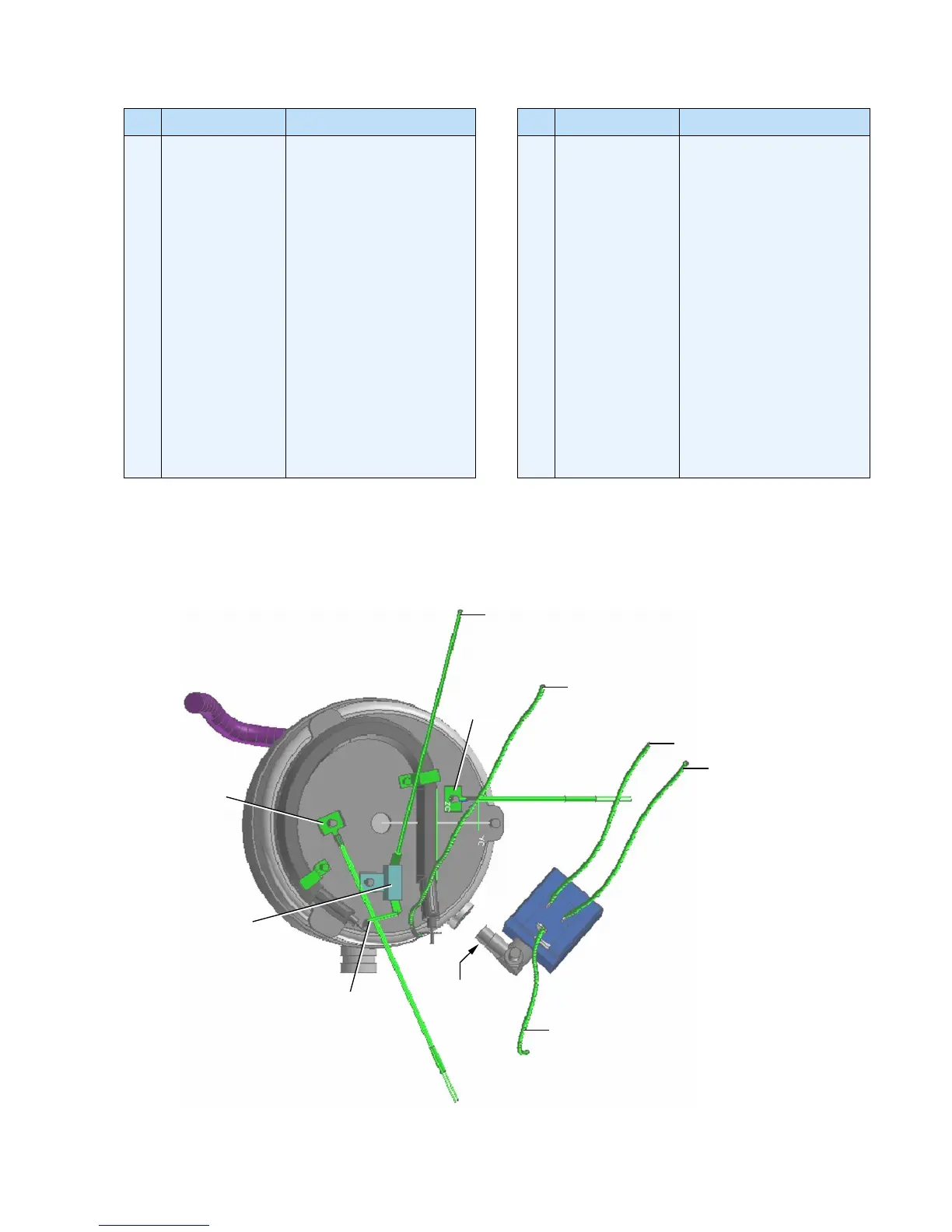

Fig 7. Boiler Assy EE - Wiring Diagram
Abbreviations
HE : Heating Element
EV : Electrovalve
PCB : Power Board
Pos Service code Description
30
31
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
4239 015 56010
4239 015 56030
4239 010 09310
4239 026 21920
4239 026 21930
4239 026 22080
4239 021 32160
4239 021 31920
4239 026 22280
4239 017 09890
4239 015 56160
4239 010 09390
4239 021 31970
4239 021 31940
4239 021 32480
4239 015 56140
4239 015 56150
Tray rubber (Main)
Tray rubber (Rear)
Tray
Stand top
Nipple plate
Cord storage lever
Front panel printed
Boiler assy EE
C-Wall
Electrovalve
Braided hose
Inox clamp
Power board
Control board
Pump assy
Inlet tube
De-air tube
Pos Service code Description
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
65
4239 015 55980
4239 015 55990
4239 015 56050
4239 026 22330
4239 022 56470
4239 021 31820
4239 026 22050
4239 000 09780
4239 026 22270
4239 015 52340
4239 026 05990
4239 015 56000
4239 026 21990
4239 026 22010
4239 026 22000
4239 026 22030
4239 022 58590
Boiler rubber support A
Boiler rubber support B
Rinse rubber coupling
Rinse bush
Safety cap assy
Reed switch assy
Reed switch holder
Cordset EU
Stand bottom EE
Bung (Stand)
Filling cup
Power button cap (Silver)
Power button frame
Steam button frame
Light guide (ring)
Display lamp cover
Safety valve sealing ring

Philips GC8220 Specifications

Power

voltage	230 V
frequency	50-60 Hz
boiler wattage	1200 W
iron wattage	800 W

Water Tank

water tank capacity	1.4 liter
cord length	2.5 m
hose length	1.9 m

Weight and Dimensions

weight (including packaging)	6.06 kg
dimensions	350 X 350 X 250 mm
