ELECTRICAL EQUIPMENT

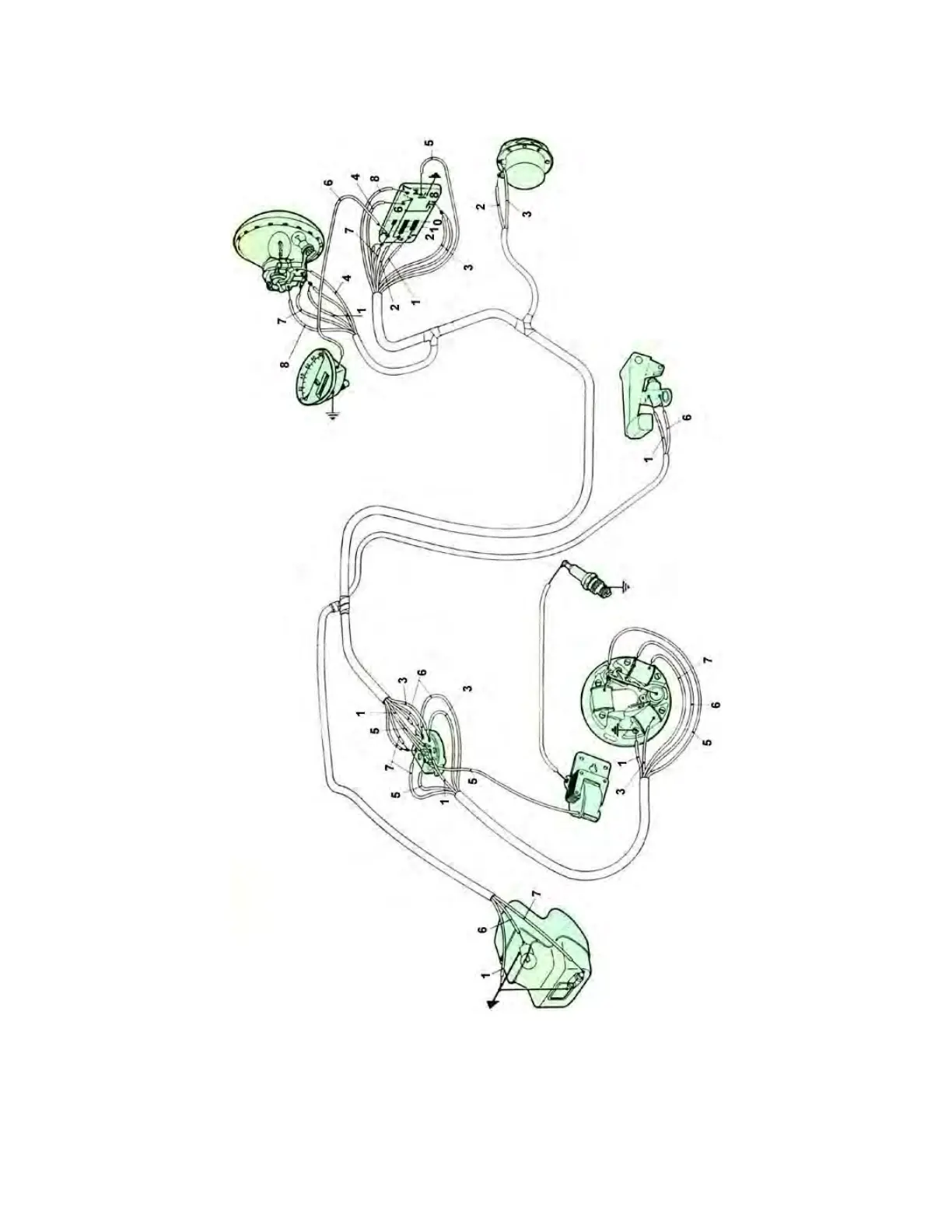

Fig. 22- Installation of electrical equipment
1. Black - 2. White - 3. Green - 4. Brown - 5. Red - 6. Blue - 7. Yellow - 8. Violet.
NOTE: A full color and more detailed wiring diagram can be downloaded at
www.scooterstation.com
