PIAGGIO Vespa 125 Super User Manual

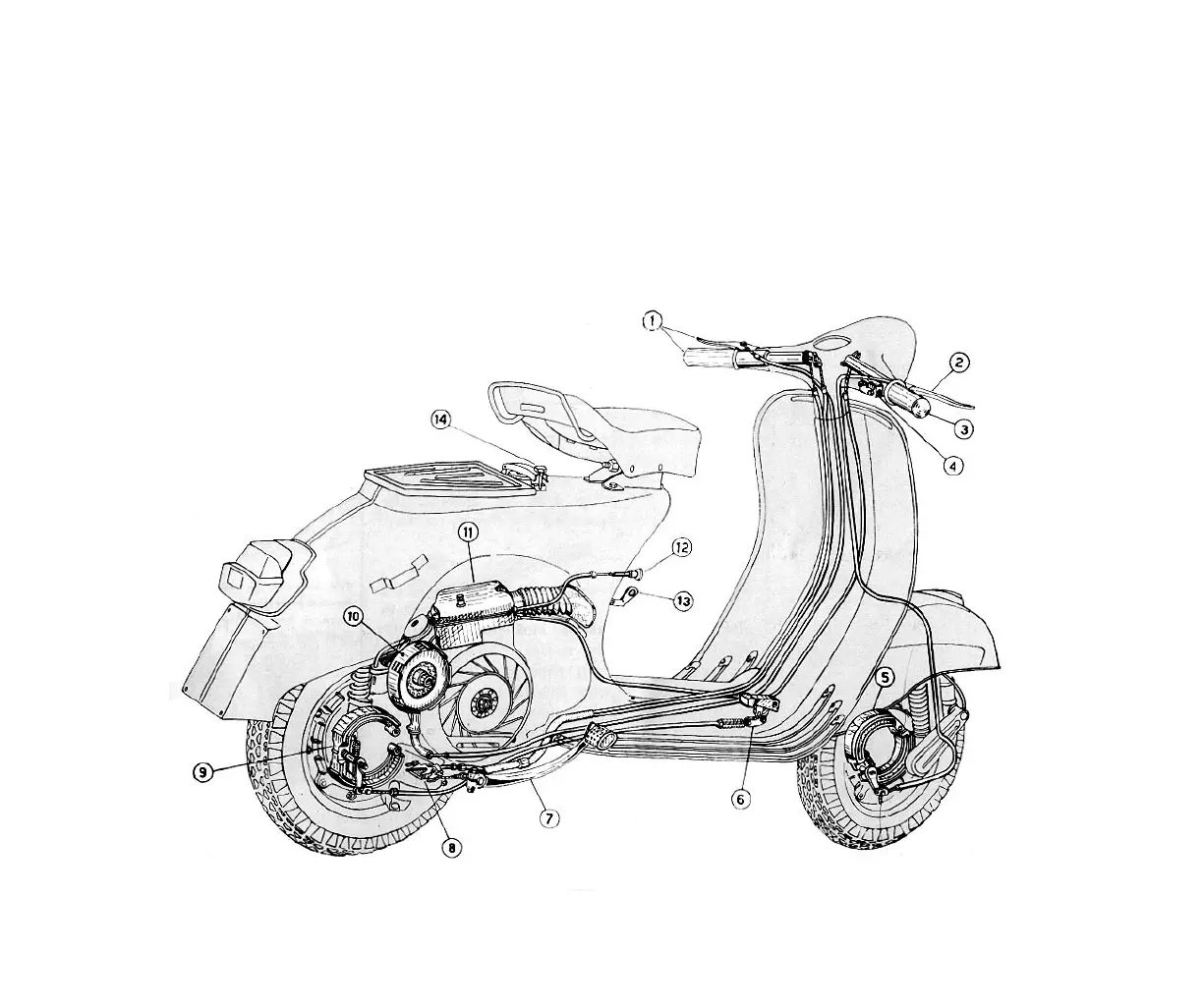

1. Clutch control (lever) and gear change (twist grip) - 2. Front brake lever - 3.
Throttle twist grip - 4. Main switch unit - 5. Front brake shoes - 6. Rear brake pedal -
7. Kickstarter - 8. Gear selector - 9. Rear brake shoes - 10. Clutch - 11. Carburettor
and air cleaner - 12. Choke control - 13. Fuel cock - 14. Fuel tank cap.
Fig. 2 - Installation of controls and transmissions
www.allstyles-scooters.com
