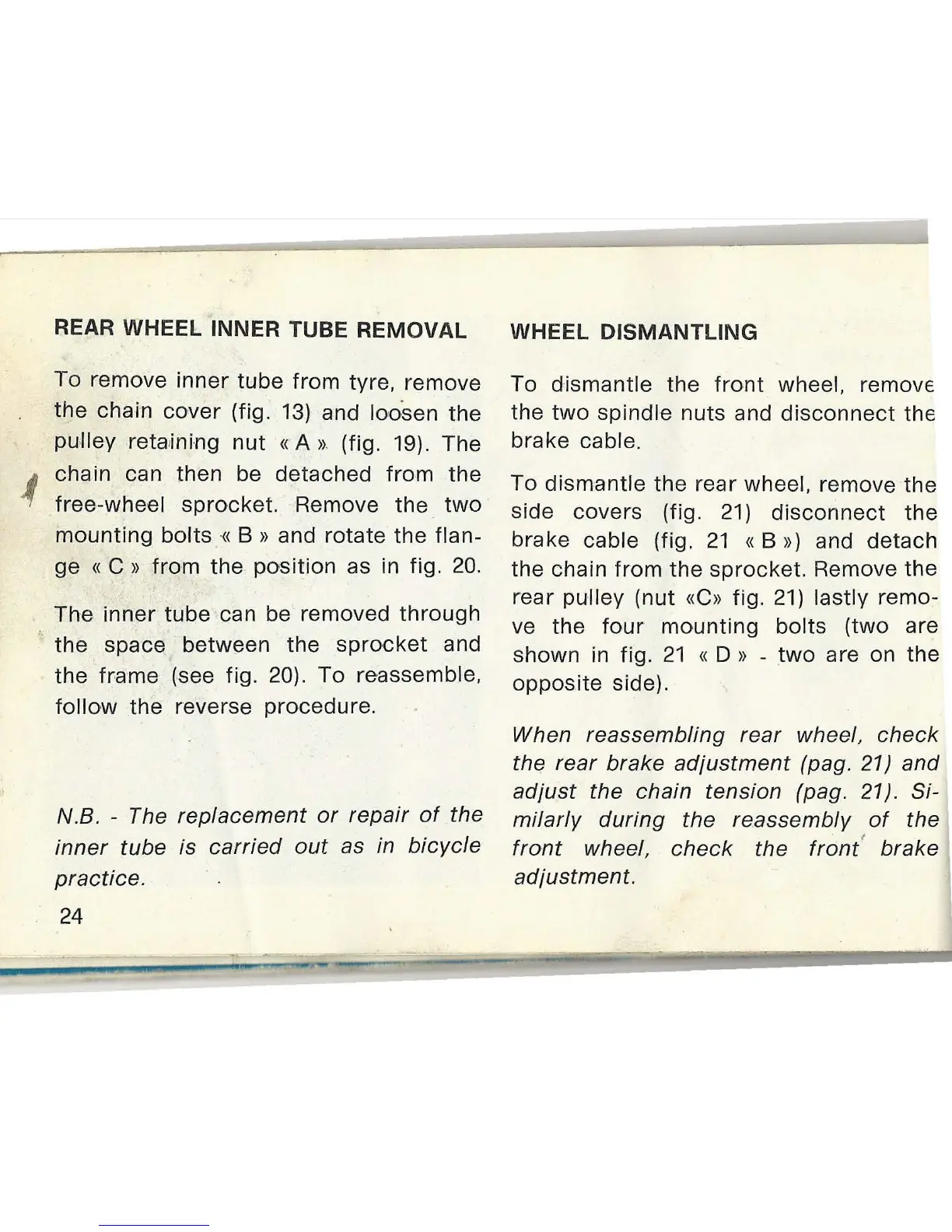

REAR WHEEl INNER TUBE REMOVAL
To remove inner tube from tyre, remove
•
t~e ~ha - in cover (fig _. 13l a.hd _ lo ~ osen the
. pu ~ lley reta ~ ining nut «A ». (fig. 19). The
.
.
chain can then be detached fro ,m the
free-whe ~ el sprocket. Remove the _ two ·
mo·
unting bo ~ lts . ·« 8 » and rotate the flan-
ge « C » fro ·m the . position as in fig. 20.
. . . .
The inner ; tube can be· removed through
'
~ - the space between ·the sprocket and
the fr.ame· {see fig. 20). To reHssemble,
follo ~ w the reverse procedure. ~
•
N.B. - The replacement or repair of the
inner tube is carried out as in bicycle
practice. . .
24
WHEEL DISMANTLING ·
To d:ismantle the front wheel, remove
the two spindle nuts and disconnect the
brake cable.
To dismantle the rear wheel, remove · the
side covers {fig. 21) disconnect the
brake cable (.fig. 21 « B ») and detach
the chain from the sprocket. Remove the
rear pulley (nut «C» fig. 21) lastly remo-
ve the
four mo· unting bolts (two are
'
shown in fig. 21 « D » - two are on the
o- pposite side). .
When reassembling rear wheel, check
the rear brake adjustment (pag. 21) and
adjust the chain tension (pag. 21). Si-
milarly during the re.assembly of the
. I
front wheel, . check the front brake
adjustment.
.
