Pioneer A-10AE User Manual

7
En
Preparations
a Speaker Cable
(Note) Speaker Impedance
Connect speakers with 4 ≠ to 16 ≠ impedance.
0 Setup: You have to change the setting on this unit if any
of the connected speakers have 4 ≠ or more to less than
8 ≠ impedance. Change the speaker impedance setting
to 4 ≠. (p10)

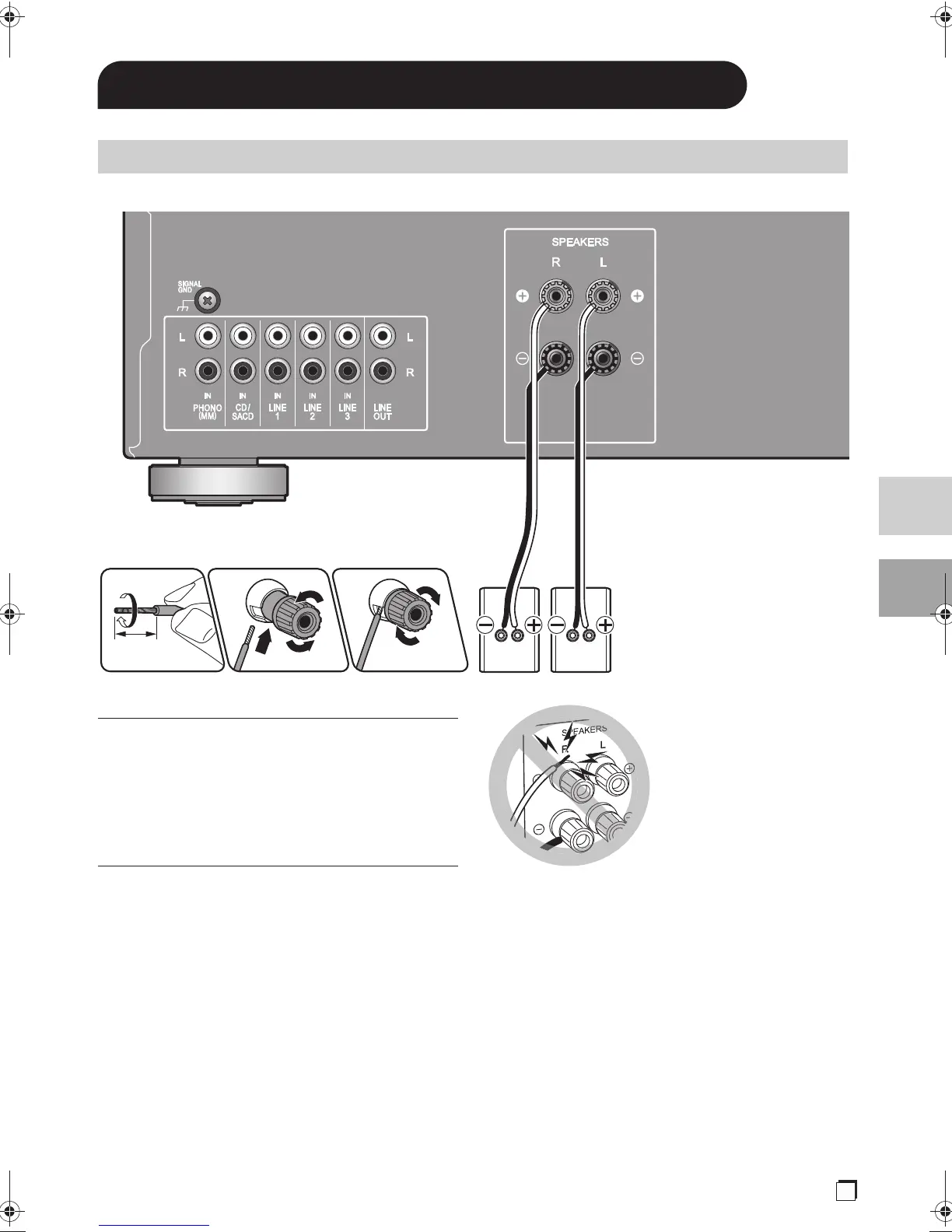

Connect the Speaker Cables
Make correct connection between the unit’s jacks and
speaker’s jacks (+ side to + side, and - side to - side) for
each channel. If the connection is wrong, a bass sound will
not be reproduced properly due to reverse phase. Twist the
wires exposed from the tip of the speaker cable so that the
wires do not stick out of the speaker terminal when
connecting. If the exposed wires touch the rear panel, or the
+ side and - side wires touch each other, the protection
circuit will be activated.
Connecting Speakers
Setup and connection
a
3/8”
(10 mm)
