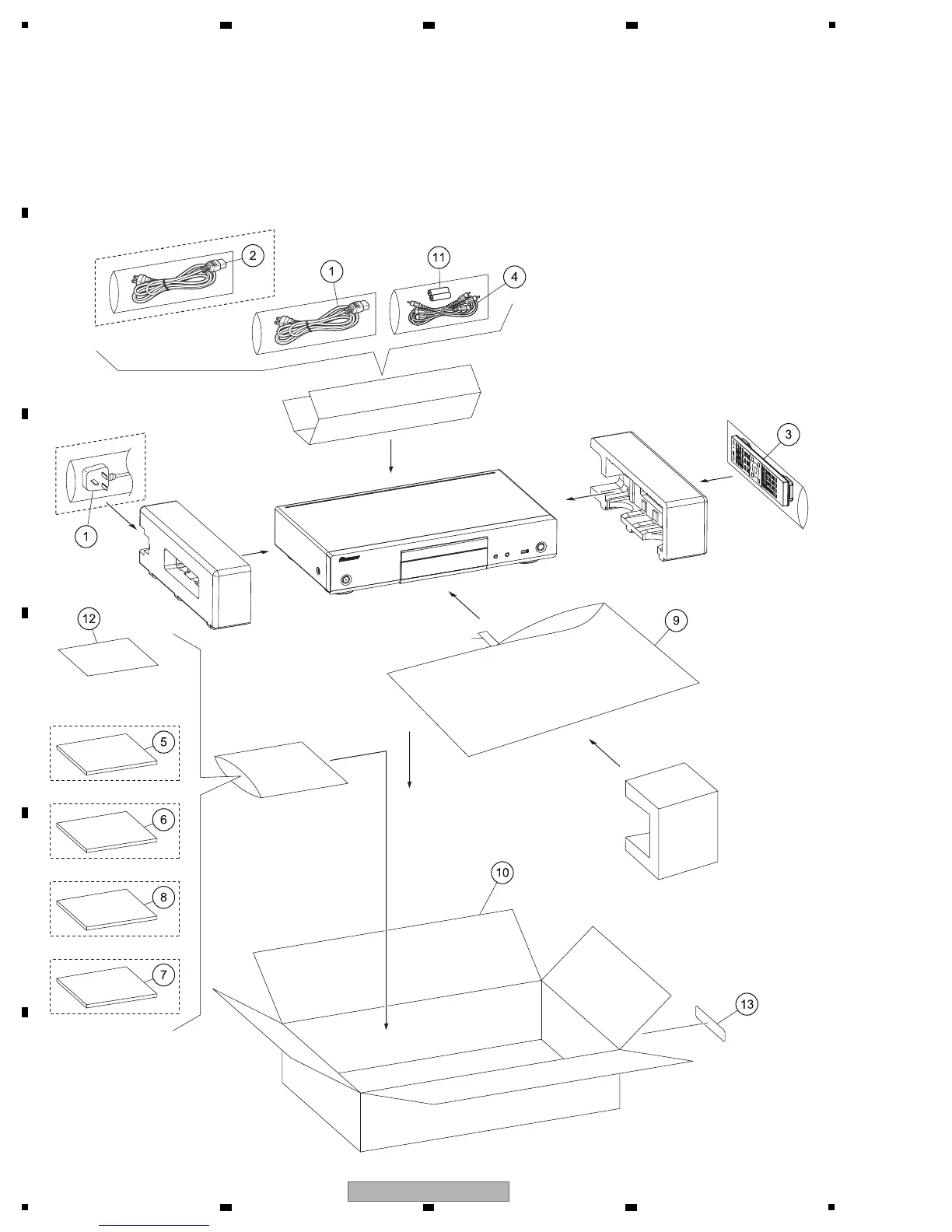

9. EXPLODED VIEWS AND PARTS LIST
9.1 PACKING SECTION
NOTES:
-
Parts marked by “NSP” are generally unavailable because they are not in our Master Spare Parts List.
-
The > mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
-
Screws adjacent to b mark on product are used for disassembly.
-
For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
BDP-LX55/VXCN5
only
BDP-LX55/YXCN5,
BDP-LX55/VXCN5,
BDP-LX55/FWLXCN only
Ta p e
BDP-LX55/YXCN5 only
BDP-LX55/FWLXCN only
BDP-53FD/UCXCN only
BDP-53FD/UCXCN only

Pioneer BDP-LX55 Specifications

General

Storage media type	Not available
Built-in storage media	No
Total storage capacity	- GB
Product color	Black
Supported radio bands	-
Image formats supported	JPG
Video formats supported	3GP, AVI, DIVX, FLV, M2TS, M4V, MOV, MPEG2, MPEG4, TS, WMV
Analog signal format system	NTSC J, PAL
Audio decoders	Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, DTS, DTS 96/24, DTS-ES
Audio output channels	2.0 channels
DC-in jack	Yes
Composite video out	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
AC input voltage	200 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	25 W
Disc types supported	BD-R, BD-RE, BD-ROM, CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW

Weight and Dimensions

Depth	93 mm
Width	435 mm
Height	252 mm
Weight	3500 g
