BEFORE OPERATING (CONNECTIONS)
CONNECTIONS
Before making or changing connections, switch off the power and disconnect the power cord from the AC outlet.
1. Connecting to a DJ mixer (DJM-600, DJM-500, DJM-300, DJM-3000, DJM-909, DJM-707
(sound output and CONTROL connector))
Using the supplied audio cables, connect the white plug into the L (left) terminal and the red plug to the R (right) terminal.
Connect the supplied control cable to enable control of the unit from the mixer for fader start play and back cue.

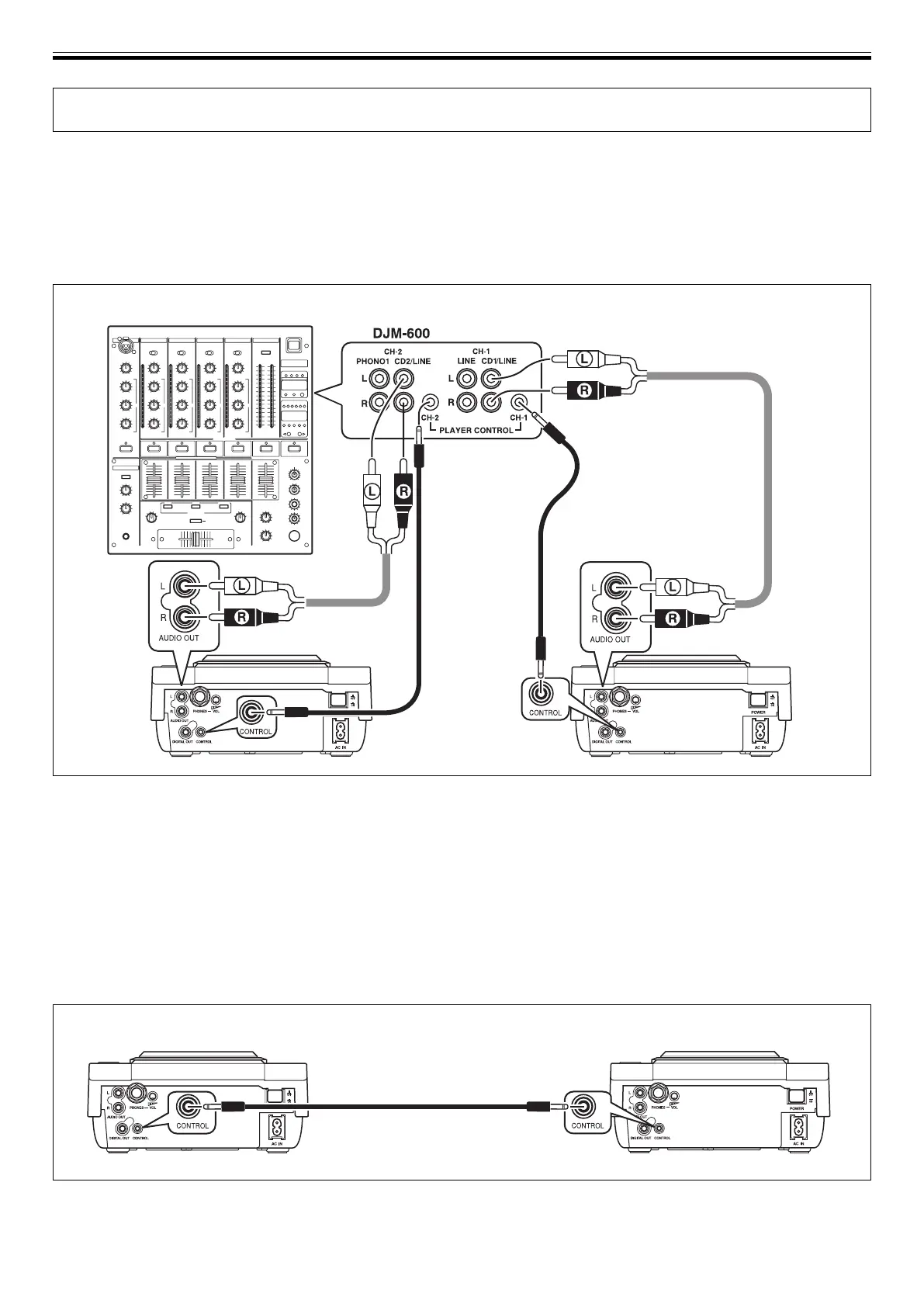

When connecting to a DJ mixer (DJM-600)
÷ When connecting to DJM-300 and DJM-500, connect as shown in the accompanying illustration.
÷ When connecting to DJM-909 and DJM-707, connect CH-1 CD with A PLAYER, CH-2 CD with B PLAYER using the supplied
audio cables.
÷ When connecting to DJM-3000, connect A PLAYER to LINE 1 of CH-1, and B PLAYER to LINE 3 of CH-2.
÷ When connecting to a audio mixer other than the ones listed above, connect the unit’s AUDIO OUT terminal to the mixer’s line
in terminal, or the AUX terminal (* do not connect to the PHONO terminal, since distortion or improper operation may occur).
2. Connecting control cable for relay play
Alternating playback can be automatically performed when the CONTROL connectors of the two units are connected with the
supplied control cable. (☞P.15)
Supplied control cable
CDJ-200 CDJ-200
Supplied audio
cable
Supplied
audio cable
Supplied
control cable
Supplied control cable
CDJ-200 CDJ-200

Pioneer CDJ-200 Specifications

General

Frequency range	4 - 20000 Hz
Signal-to-Noise Ratio (SNR)	110 dB
Total Harmonic Distortion (THD)	0.006 %
CD-RW playback	Yes
Media types supported	CD, CD-R, CD-RW, MP3 CD
Device type	Portable CD player
Display type	-
Power requirements	220 - 240 V, 50/60 Hz
Power consumption (typical)	16 W
Dimensions (WxDxH)	216 x 292 x 99.5 mm

Weight and Dimensions

Weight	3200 g
