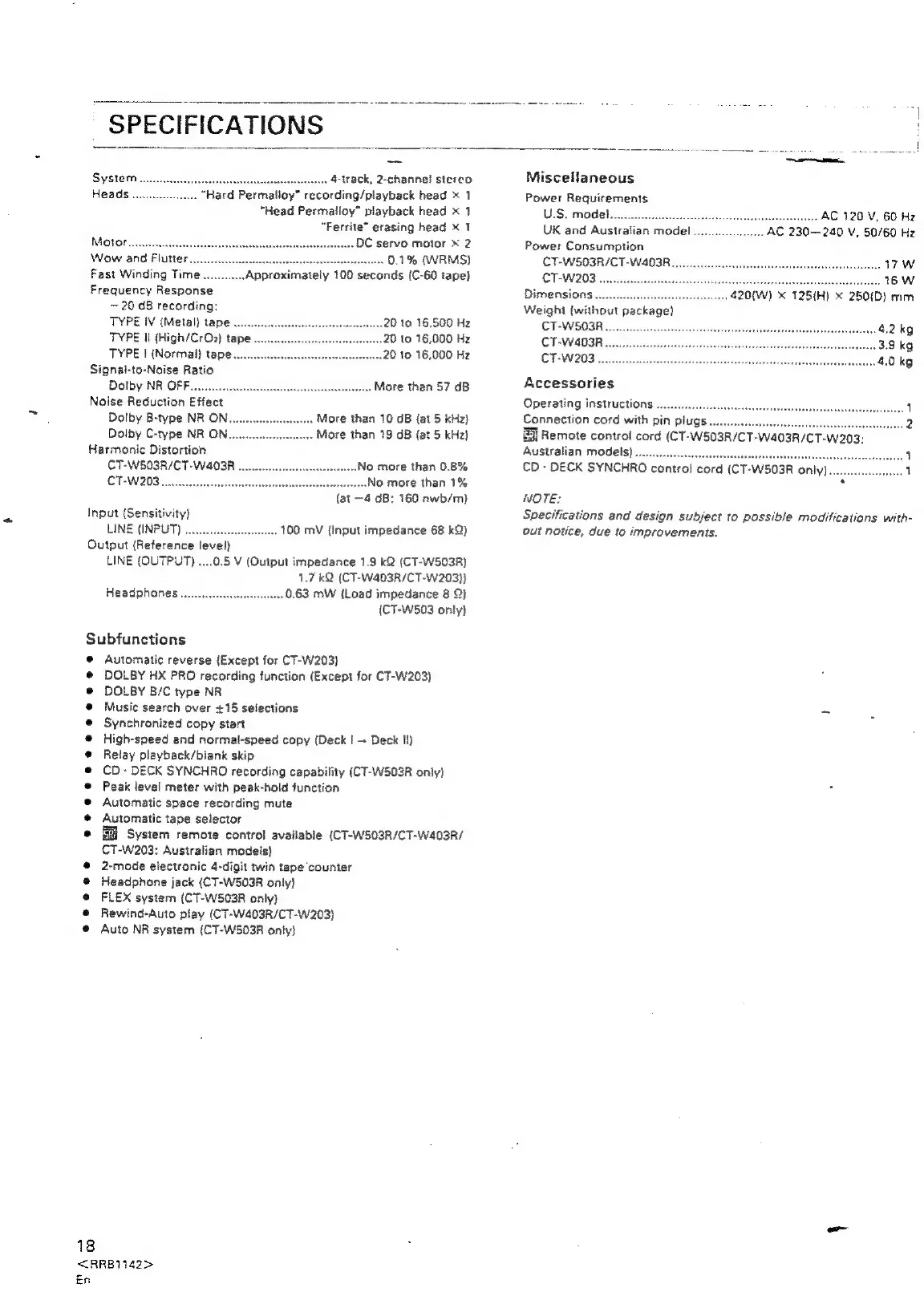

- SPECIFICATIONS
a. 4-track, 2-channel sterco
‘Hard Permatloy” recording/playback head * 1
“Head Permalioy” playback head x 1
“Ferrite” erasing head X 1
MOF OFS. cessss hisses ksteseh eee ta databases bead Monee DC servo motor x 2
Wow and Flutter.. 0.1% (WRMS}
Fast Winging Time .Approximately 100 seconds (C-60 tape)
Frequency Response
~ 20 dB recording:
TYPE IV (Metal) tape ...
TYPE It (High/CrO2} tape
TYPE | {Normal} tape...
Signal-to-Noise Ratio
System
Heads...
20 to 16,500 Hz
20 to 16,000 Hz
20 to 16,000 Hz
DOIDY-INR OFF scesssscssscassosecscssisaspschsasiveesatonninsecsite More than 57 dB
Noise Reduction Effect
Dolby B-type NR ON. sence More than 10 dB (at 5 kHz}
Dolby C-type NR ON... eee More than 19 dB (at 5 kHz)
Harmonic Distortion
CT-W503R/CT-W403R
CT-W203
No more than 0.8%
No more than 1%
(at ~4 dB: 160 nwb/m)}
Input (Sensitivity)
LINE (INPUT) voce ccscessesescenseee 100 mV {input impedance 68 kQ)
Output (Reference level}
LINE (OUTPUT) ....0.5 V (Output impedance 1.9 kQ (CT-W503R)
1.7 kQ (CT-W403R/CT-W203))
..0.63 mW {Load impedance 8 Q}
{CT-W503 only)
Headphones ..
Subfunctions
Automatic reverse (Except for CT-W203}
DOLBY HX PRO recording function (Except for CT-W203)
DOLBY B/C type NR
Music search over +15 selections
Synchronized copy start
High-speed and normai-speed copy (Deck | — Deck Il)
Relay playback/biank skip
CD - DECK SYNCHRO recording capability (CT-W503R only)
Peak level meter with peak-hold function
Automatic space recording mute
Automatic tape selector
a System remote contro! available (CT-W503R/CT-W403R/
CT-W203: Australian models)
2-mode electronic 4-digit twin tape counter
Headphone jack (CT-W503R only}
FLEX system (CT-W503R only)
Rewind-Auto play (CT-W403R/CT-W203)}
Auto NR system (CT-W503R only)
eeeeeeeeceeene
eeese
18
<RRBIV42>
En
ln
Miscellaneous
Power Requirements
U.S. model... AC 120 V, 60 Hz
UK
and
Australian
model
AC
230—240
V,
50/60
Hz
Power
Consumption
CT-W503R/CT-W403R
17 WwW
CT-W203 16 W
Dimensions 420(W) X 125{H) X 250(D} mm
Weight (without package)
CT-W5O3R .. a2kg
CT-W403R
CT-W203.
Accessories
Operating instructions oo... ccceccessscsseseesssessecerscassvecennen
Connection
cord
with
pin
plugs
.....cecscensecereesesersers
EJ
Remote
control
cord
{CT-W503R/CT-W403R/CT-W20:
Australian models)
CD - DECK SYNCHRO control cord (CT-WS03R only).
NOTE:
Specifications
and
design
subject
to
possible
modifications
with-
out notice, due to improvements.
