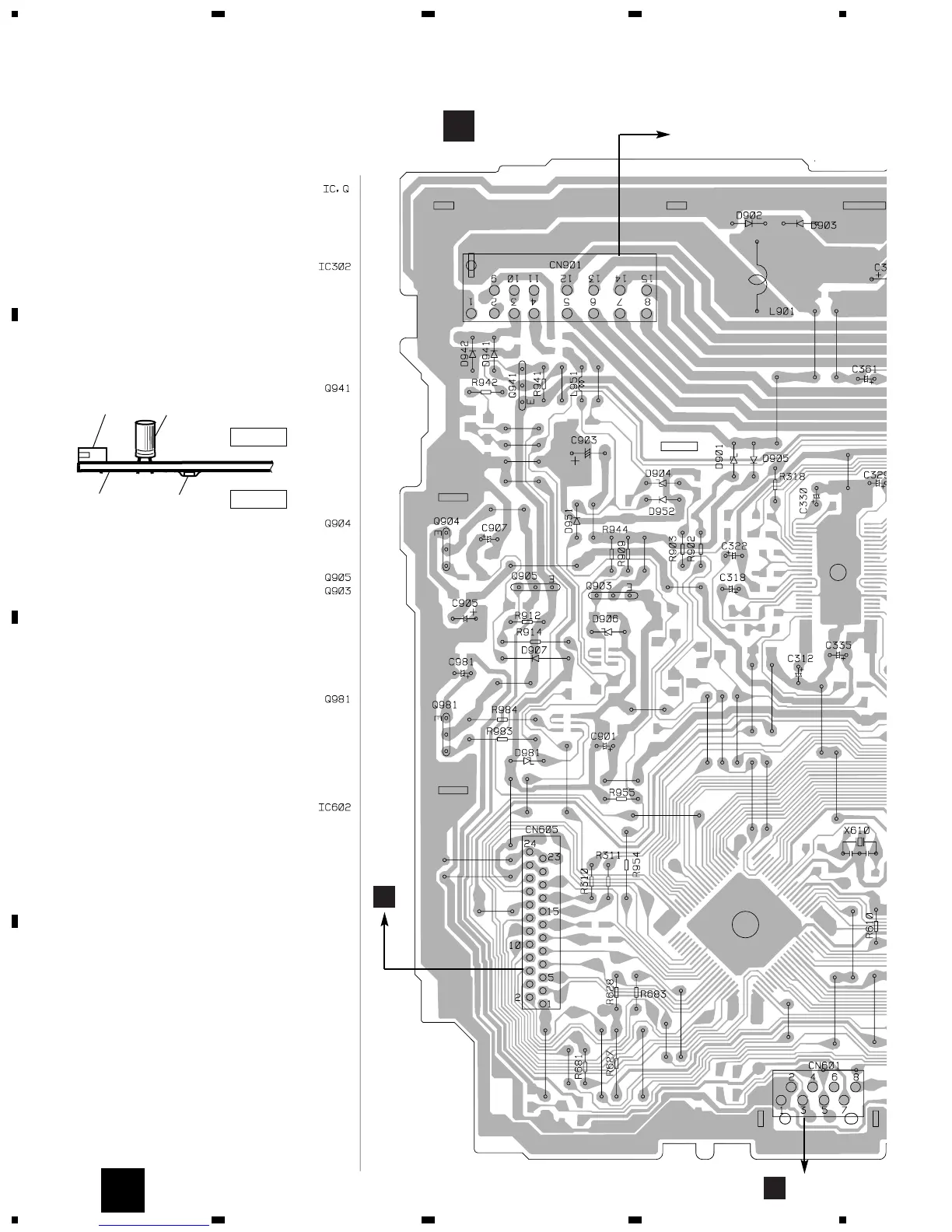

4. PCB CONNECTION DIAGRAM
4.1 TUNER AMP ASSY
NOTE FOR PCB DIAGRAMS
1. The parts mounted on this PCB
include all necessary parts for
several destination.
For further information for
respective destinations, be sure
to check with the schematic dia-
gram.
2. Viewpoint of PCB diagrams
A
Capacitor
Connector
P.C.Board
Chip Part
SIDE A
SIDE B
CORD ASSY
CN701
D
C
CN1801
A
TUNER AMP ASSY
