DEH-1100,11

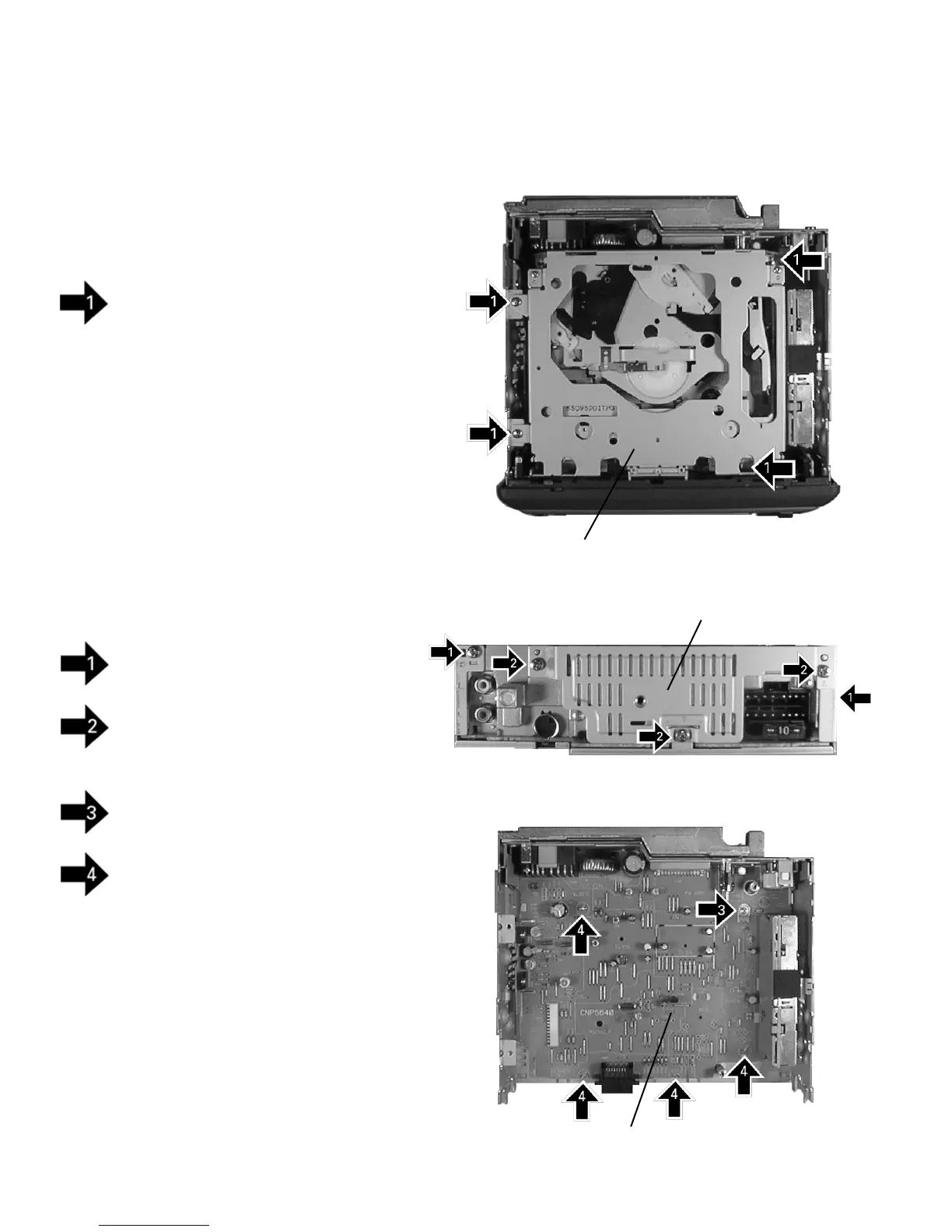

7.1.2 DISASSEMBLY
- Removing the Tuner Amp Assy
Remove the two screws (Fig.2).
Remove the three screws and then remove
the Cover (Fig.2).
Remove the screw (Fig.3).
Disconnect the four claws and then remove
the Tuner Amp Assy (Fig.3).
- Removing the Upper Case (not shown)
- Removing the CD Mechanism Module (Fig.1)
Remove the four screws.
Disconnect the connector and then remove the CD
Mechanism Module (not shown).
-
Removing the Grille Assy (not shown)
1.Disconnect the two stoppers and then remove the
Grille Assy.
Fig.1
Fig.2
Fig.3
Tuner Amp Assy
Cover
CD Mechanism Module
