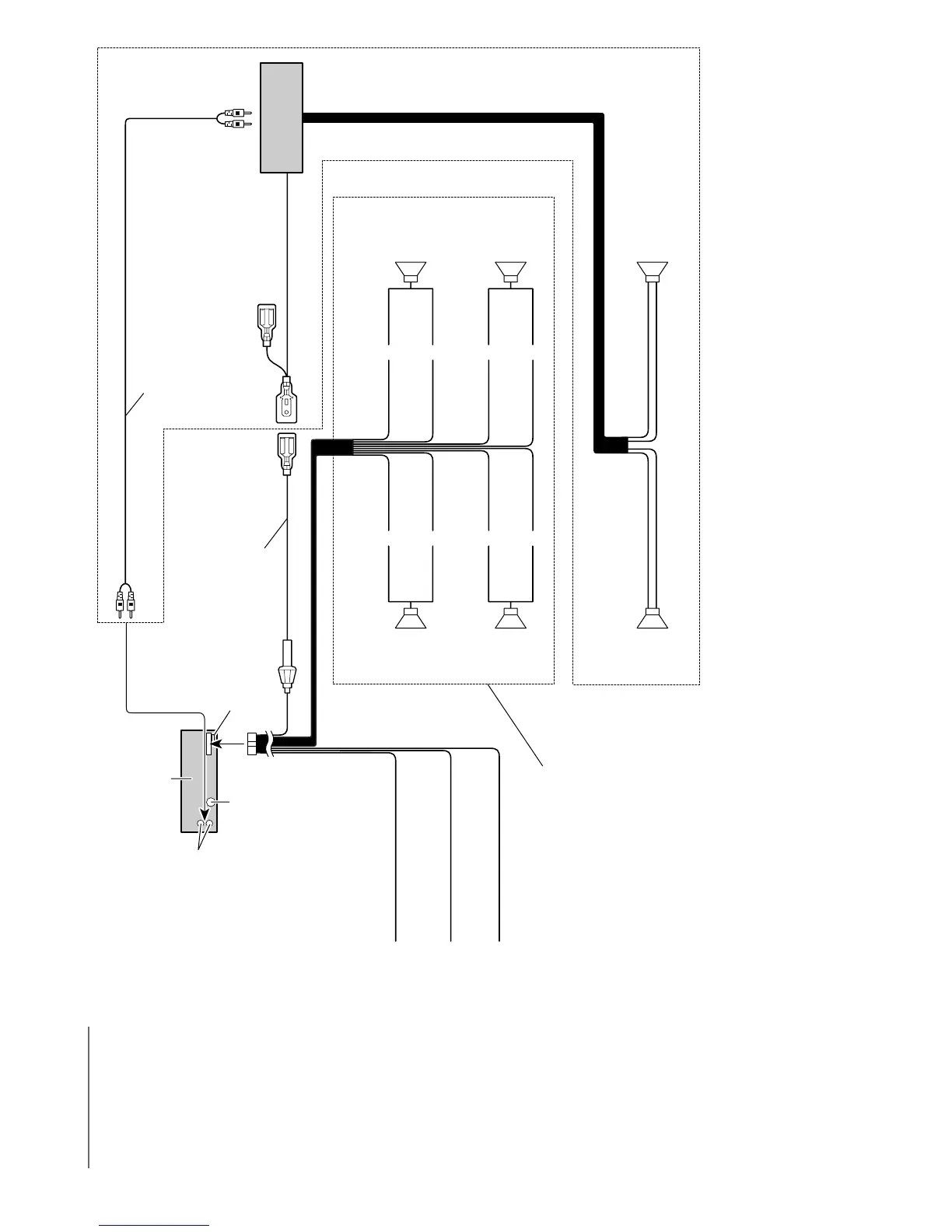

Connection Diagram
This Product
Rear output
Antenna jack
Fuse
Black (ground)
Red
Yellow
To terminal always supplied with power
regardless of ignition switch position.
To electric terminal controlled by ignition
switch (12 V DC) ON/OFF.
To vehicle (metal) body.
With a 2 speaker system, do not connect
anything to the speaker leads that are not
connected to speakers.
Perform these connections when using a different amp (sold separately).
To system control terminal of
the power amp or Auto-antenna
relay control terminal.
(Max. 300 mA 12 V DC.)
Connecting cords with RCA
pin plugs (sold separately)
Blue/white
System remote control
Power amp
(sold separately)
White
White/black
Green
Green/black
Gray
Gray/black
Violet
Violet/black
Front
speaker
Rear
speaker
Right
Rear
speaker
Rear
speaker
Front
speaker
Rear
speaker
Left
64
DEH-1100,11
