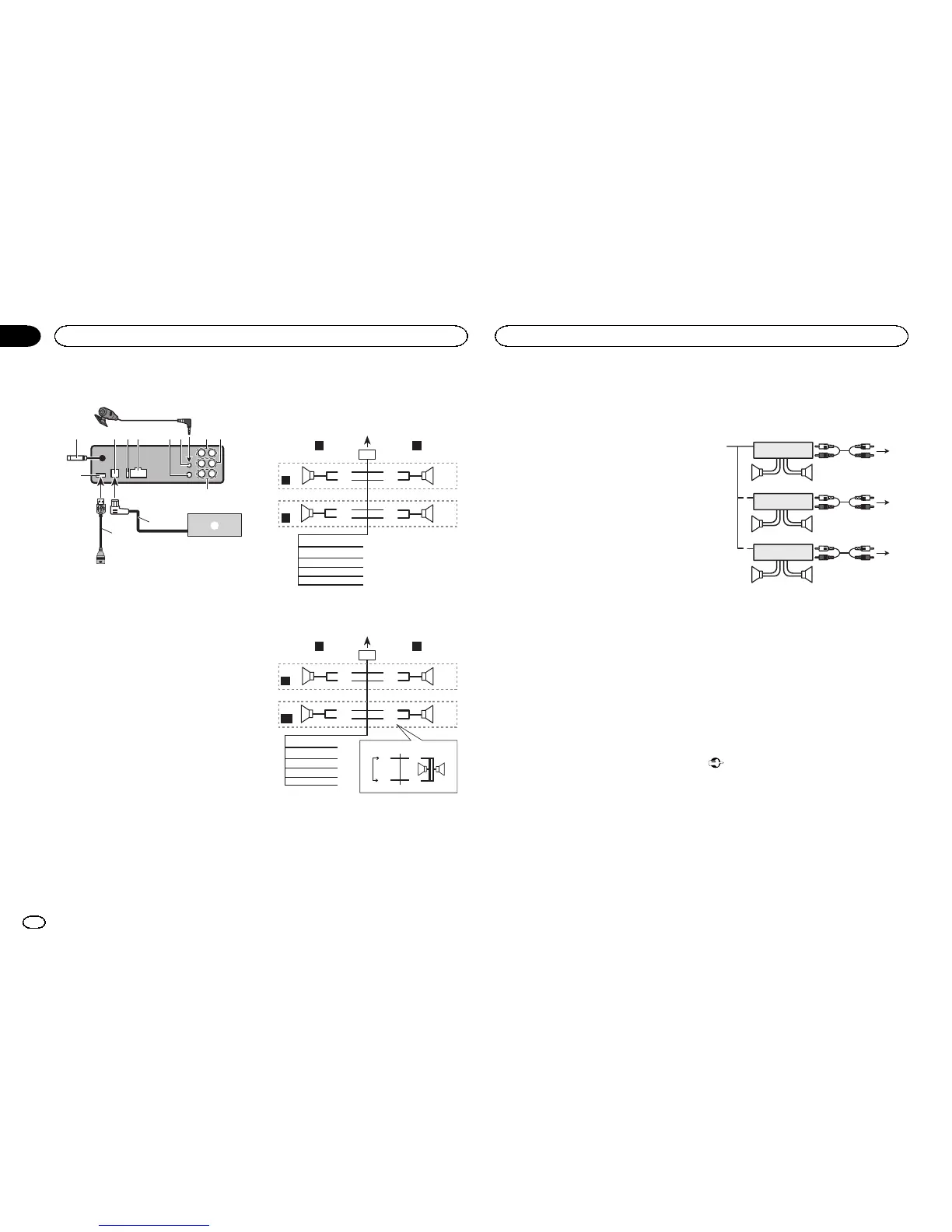

This unit
2 3 4 596 a
b
e
d
c
7
1
8
1 USB port
2 Antenna input
15 cm (5-7/8 in.)
3 IP-BUS input (blue)
4 Fuse (10 A)
5 Power cord input
6 Wired remote input
Hard-wired remote control adaptor can be
connected (sold separately).
7 Microphone input (DEH-P8400BH only)
8 Microphone (DEH-P8400BH only)
4 m (13 ft. 1 in.)
9 Rear output
a Front output
b Subwoofer output
c USB cable
1.5 m (4 ft. 11 in.)
d IP-BUS cable (sold separately)
e Pioneer IP-BUS accessories (sold separately)
Power cord
Perform these connections when not connect-
ing a rear speaker lead to a subwoofer.
1
8
9
c
d
6
32
4
5
7
a
b
e
f
h
g
LR
F
R
Perform these connections when using a sub-
woofer without the optional amplifier.
1
8
9
c
d
6
32
4
7
a
b
a
b
e
f
i
g
h
LR
F
SW
j
k
d
c
l m
1 To power cord input
2 Left
3 Right
4 Front speaker
5 Rear speaker
6 White
7 White/black
8 Gray
9 Gray/black
a Green
b Green/black
c Violet
d Violet/black
e Black (chassis ground)
Connect to a clean, paint-free metal location.
f Yellow
Connect to the constant 12 V supply termi-
nal.
g Red
Connect to terminal controlled by ignition
switch (12 V DC).
h Blue/white
Connect to system control terminal of the
power amp or auto-antenna relay control ter-
minal (max. 300 mA 12 V DC).
i Orange/white
Connect to lighting switch terminal.
j Subwoofer (4 W)
k When using a subwoofer of 70 W (2 W), be
sure to connect the subwoofer to the violet
and violet/black leads of this unit. Do not
connect anything to the green and green/
black leads.
l Not used.
m Subwoofer (4 W)× 2
Notes
! With a 2 speaker system, do not connect any-
thing to the speaker leads that are not con-
nected to speakers.
! Change the initial setting of this unit. Refer
to S/W control (rear output and subwoofer
setting) on page 15.
The subwoofer output of this unit is monau-
ral.
Power amp (sold separately)
Perform these connections when using the op-
tional amplifier.
1
1
3
2
4
55
3
2
6
77
1
3
2
8
99
1 System remote control
Connect to Blue/white cable.
2 Power amp (sold separately)
3 Connect with RCA cables (sold separately)
4 To Rear output
5 Rear speaker
6 To Front output
7 Front speaker
8 To subwoofer output
9 Subwoofer
Installation
Important
! Check all connections and systems before
final installation.
! Do not use unauthorized parts as this may
cause malfunctions.
! Consult your dealer if installation requires
drilling of holes or other modifications to the
vehicle.
! Do not install this unit where:
— it may interfere with operation of the vehicle.
— it may cause injury to a passenger as a result
of a sudden stop.
Installation
26
Section
Installation
En
04
