DEX-P9,P9R

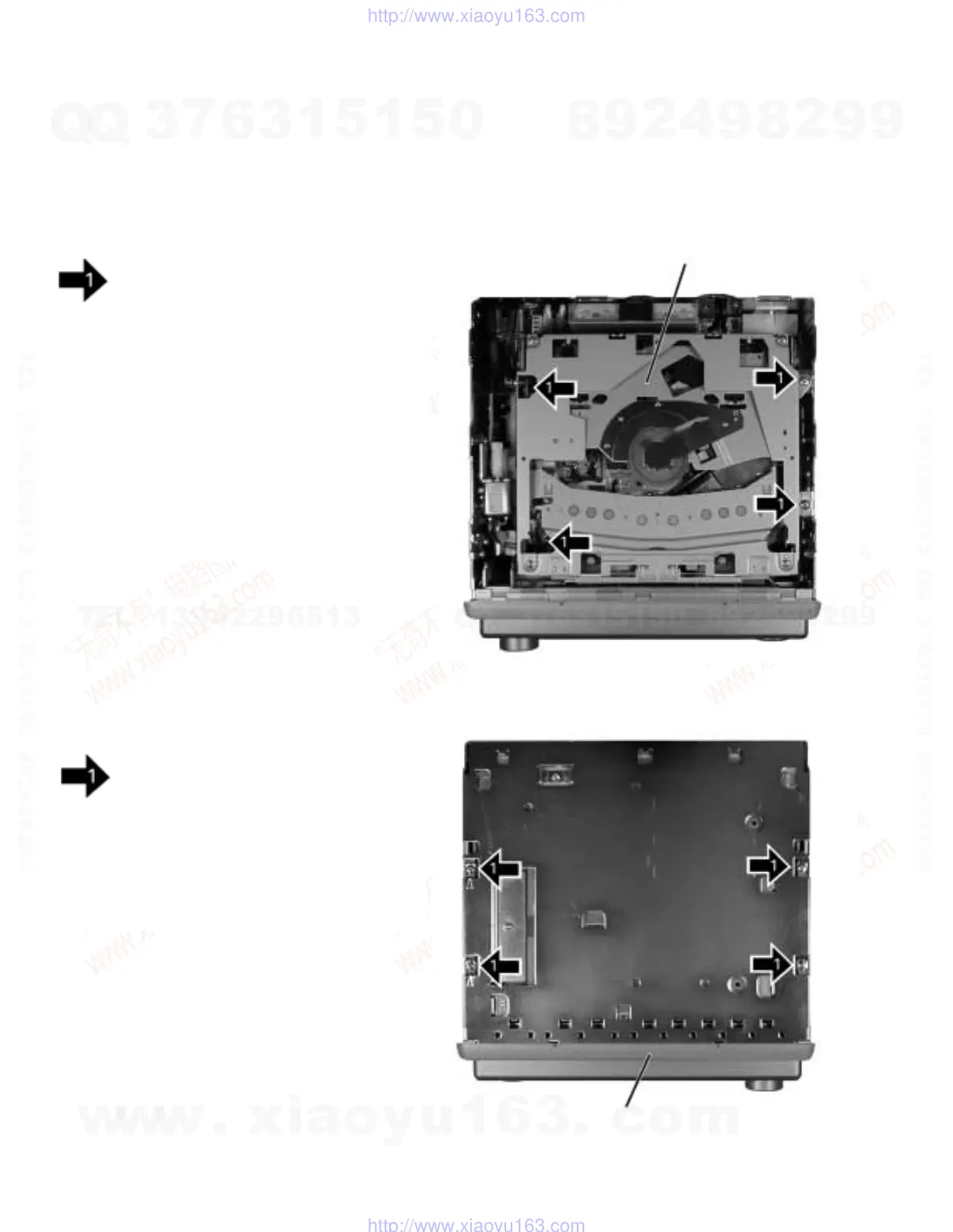

7.1.2 DISASSEMBLY
- Removing the Case (not shown)
1. Remove the Case.
- Removing the CD Mechanism Module (Fig.1)
Remove the four screws.
Disconnect the connector and then remove the CD
Mechanism Module.
Fig.1
CD Mechanism Module
Fig.2
Panel Assy
- Removing the Panel Assy (Fig.2)
Remove the four screws.
Disconnect the connector and then remove the Panel
Assy.
