Pioneer DEX-P9 User Manual

69
DEX-P9,P9R

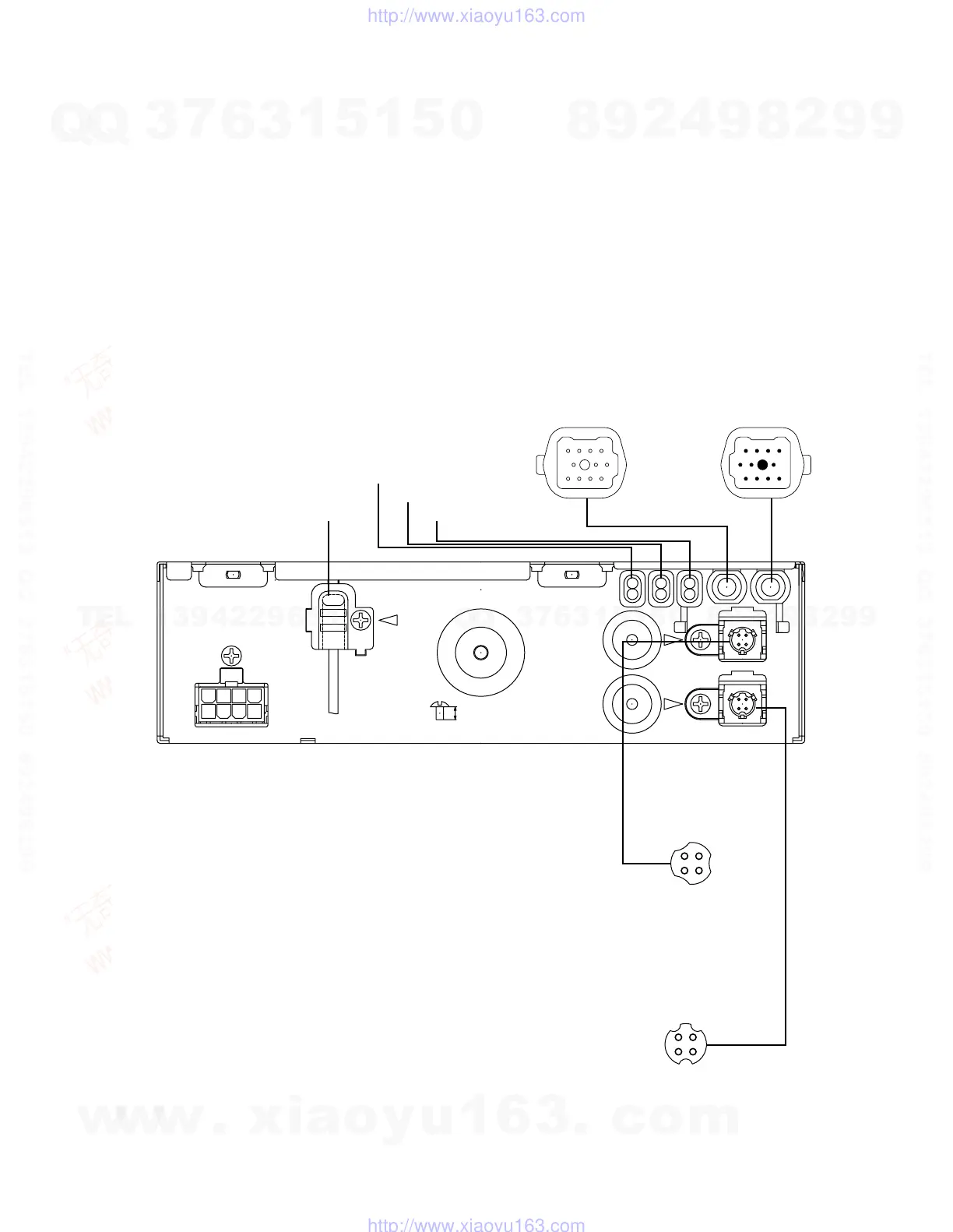

7.1.3 CONNECTOR FUNCTION DESCRIPTION
8765
4321
1. ILL
2. GND
3. MUTE
4. NC
5. B.UP
6. ACC
7. B.REM
8. NC
ANTENNA JACK
FRONT OUTPUT
REAR OUTPUT
NON-FADING OUTPUT
1. BUS+
2. IPGND
3. IPGND
4. NC
5. BUS-
6. IPGND
7. BUS L OUTPUT
8. ASENB
9. BUS R OUTPUT
10. IPGND
11. IPGND
11 10 9 8
7
65
4321
IP-BUS
OUTPUT
IP-BUS
INPUT
111098
7
65
4321
1. BUS+
2. GND
3. GND
4. NC
5. BUS-
6. GND
7. BUS L+ INPUT
8. ASENB
9. BUS R+ INPUT
10. BUS R- INPUT
11. BUS L- INPUT
1. GND
2. GND
3. NC
4. OPTOUT
OPTICAL
OUTPUT
4
3
2
1
4
3
2
1
1. GND
2. GND
3. NC
4. OPTOUT
OPTICAL
INPUT
