Installation

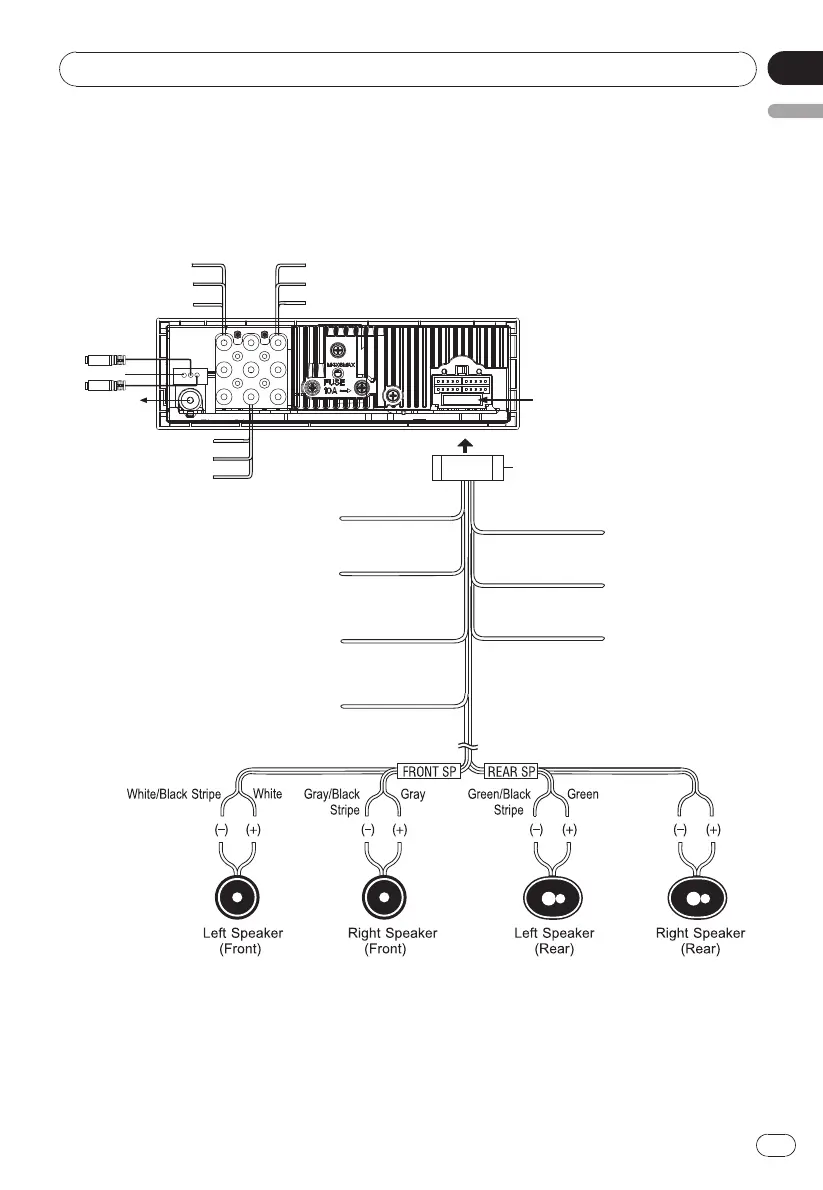

Wiring diagram
Connector
Yellow
Orange
Red
Black
Blue/White
To car battery(+)
Continuous +12V DC
ILLUMI (Illumination)
Ignition key +12V DC
when ON/ACC
Ground lead
Connected to a clean,
paint-free metal location
Motor/Electric antenna relay
control lead
Amplifier relay control lead
Light Green
Violet / White
REVERSE SW
PARKING SW
(Active low level input)
Violet/Black
Stripe
Violet
Fuse 10A
MIC
BT ANT
Front Line out R
Rear R / Subwoofer out
CAMERA IN
Front Line out L
Rear L / Subwoofer out
VIDEO OUT (To Monitor with NTSC system)
(This output, Volume display and Mute display does not appear.)
VIDEO IN (AV)
AUDIO IN L (AV)
AUDIO IN R (AV)
SWC
(Steering Wheel Control)
RADIO ANT
