What’s what

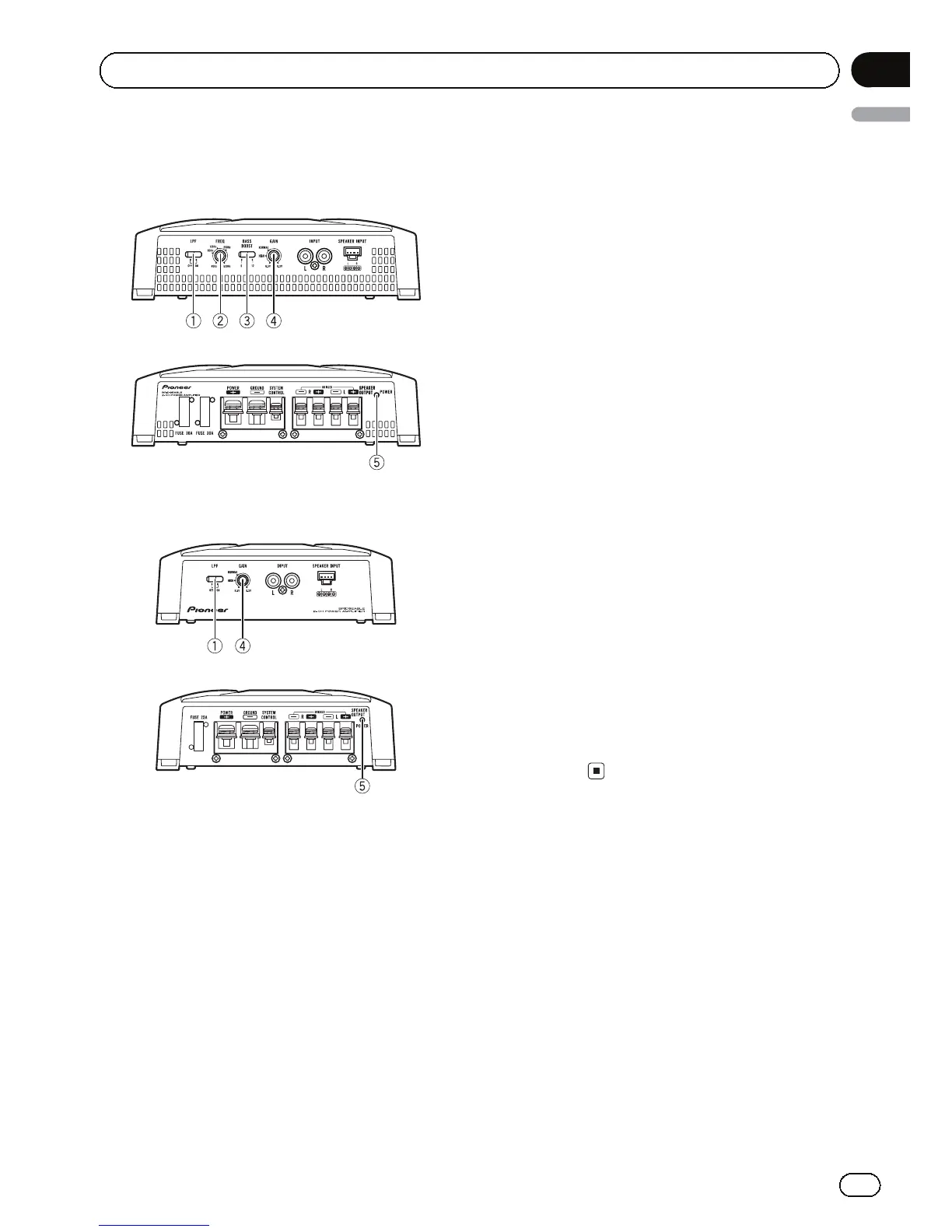

GM-A5602
Front side
Rear side
GM-A3602
Front side
Rear side
To adjust the switch, use a flathead screwdri-
ver if needed.
1 LPF (low-pass filter) switch
Switch the settings based on the connected
speaker.
! When the Subwoofer is connected:
Select ON. This eliminates high range
frequency and outputs low range fre-
quency.
! When the full range speaker is con-
nected:
Select OFF. OFF outputs the entire fre-
quency range.
2 FREQ (cut off frequency) control
Cut off frequency selectable from 40 Hz to
500 Hz if the LPF select switch is set to ON.
3 BASS BOOST (bass boost level control)
switch
You can select a bass boost level from 0 dB,
6 dB and 12 dB.
4 GAIN (gain) control
If output remains low, even when the car
stereo volume is turned up, turn controls to
lower level. If distortion occurs when the car
stereo volume is turned up, turn these con-
trols to higher level.
! For use with an RCA equipped car stereo
(standard output of 500 mV), set to the
NORMAL position. For use with an RCA
equipped Pioneer car stereo, with maxi-
mum output of 4 V or more, adjust level
to match that of the car stereo output.
! For use with an RCA equipped car stereo
with output of 4 V, set to the HIGH posi-
tion.
! If you hear too much noise when using
the speaker input terminals, turn the
gain control to higher level.
5 Power indicator
The power indicator lights up to indicate
power ON.
Setting gain properly
! Protective function included to prevent
malfunction of the unit and/or speakers
due to excessive output, improper use or
improper connection.
! When outputting high volume sound etc.,
this function cuts off the output for a few
seconds as a normal function, but output
is restored when the volume of the head
unit is turned down.
