Pioneer MVH-X580BT Service Manual

MVH-X580BS/XNUC
18
1234
1234
C
D
F
A
B
E

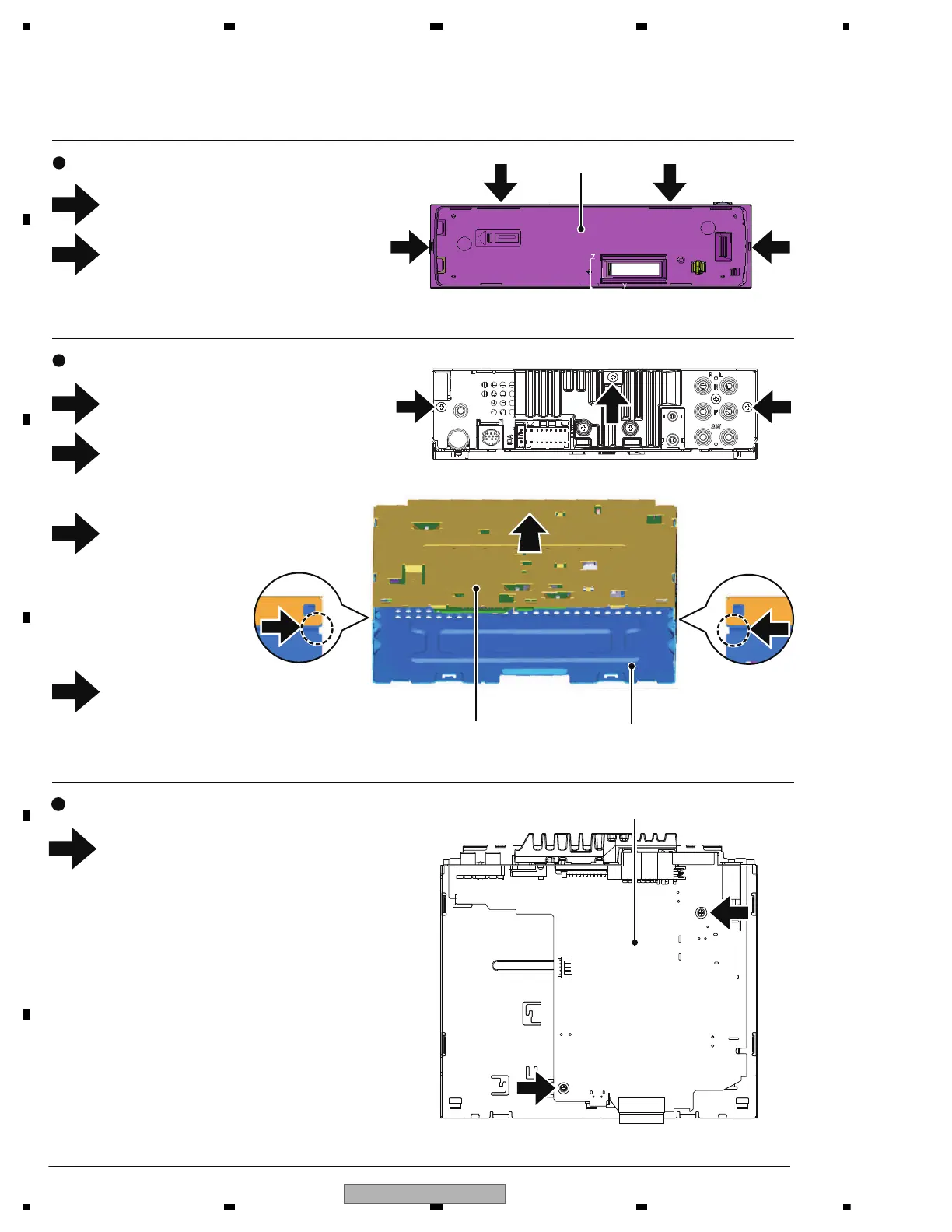

7. DISASSEMBLY
2
2
2
2
1
While the photograph shown is slightly different from this model in shape, the disassembly procedure is the same.
2
1
2
3
4
1
Slide the Tuner Amp Assy in the direction
of the arrow and then remove the Tuner
Amp Assy.
1 1
Heat Sink side
The Chassis side is made a bottom.
- Removing the Tuner Amp Assy (Fig.2)
ChassisTuner Amp Assy
Release the two latches.
Release the two latches and then remove
the Panel Assy.
- Removing the Panel Assy (Fig.1)
Fig.2
Fig.1
Remove the screw.
Remove the two screws.
Panel Assy
4
3
3
Fig.3
- Removing the Tuner Amp Unit (Fig.3)
1
Remove the two screws and then remove
the Tuner Amp Unit.
Tuner Amp Unit
1
1
Push the area and remove the two hooks.

Pioneer MVH-X580BT Specifications

General

Audio system	MOSFET
MP3 playback	Yes
CD-R playback	No
Audio formats supported	AAC, FLAC, MP3, WAV, WMA
DIN size	1 DIN
Product color	Black
Audio output channels	4.0 channels
Equalizer bands quantity	13
Maximum power per channel	50 W
Line outputs (RCA)	3
Supported radio bands	AM, FM
Display type	LCD
Display number of lines	1.5 lines
