Pioneer PDR-509 Service Manual

PDR-509
36
1

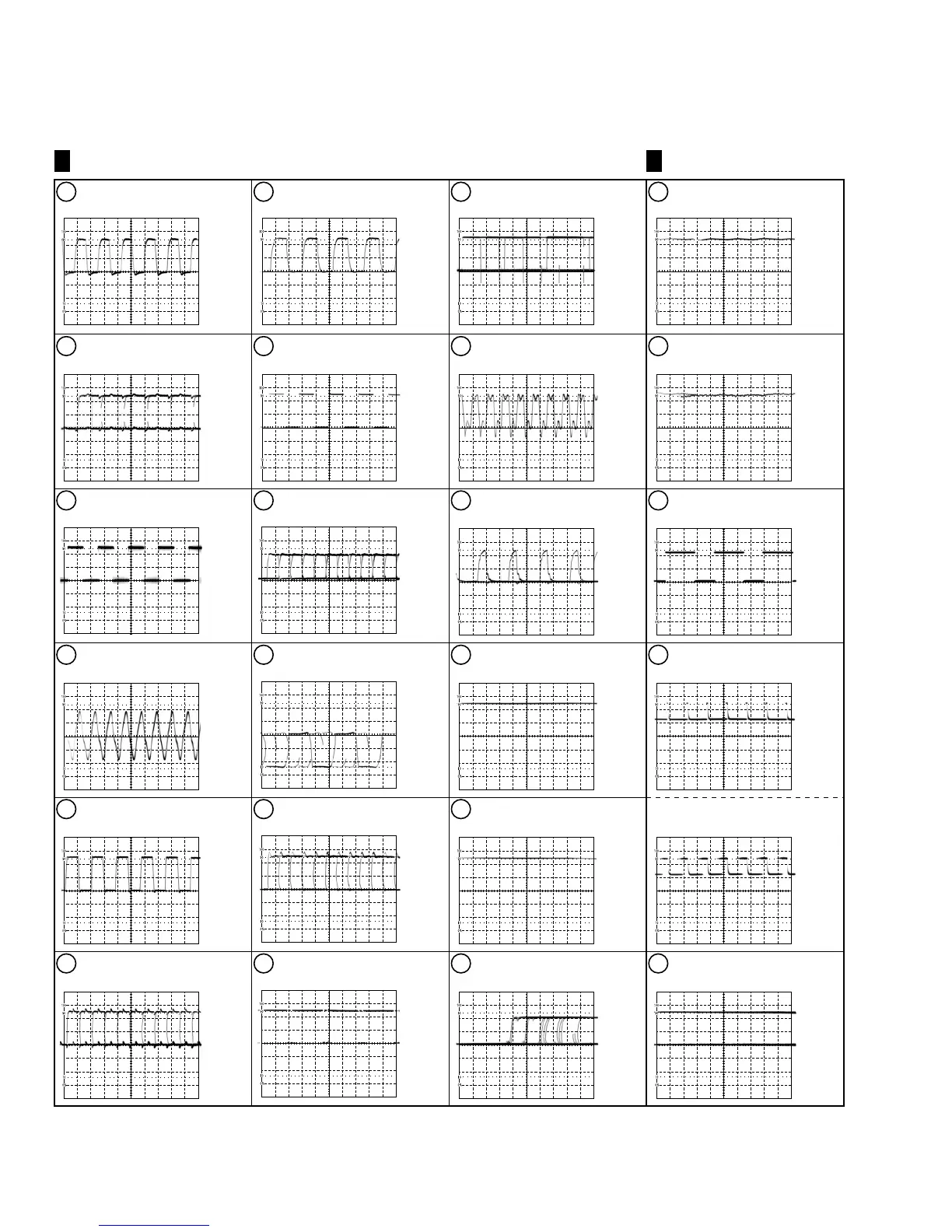

CN501 - pin 2 (ADBCK)
V: 0.2V/div.(10 : 1) H: 0.2µsec/div.
(STOP)
2
CN501 - pin 3 (ADDATA)
V: 0.2V/div.(10 : 1) H: 0.2µsec/div.
(REC)
3
CN501 - pin 5 (ADLRCK)
V: 0.2V/div.(10 : 1) H: 10µsec/div.
(STOP)
4
CN501 - pin 7 (MCK)
V: 0.1V/div.(10 : 1) H: 50msec/div.
(STOP)
7
CN501 - pin 14 (DABCK)
V: 0.2V/div.(10 : 1) H: 0.2µsec/div.
(STOP)
8
CN501 - pin 16 (DALRCK)
V: 0.2V/div.(10 : 1) H: 10µsec/div.
(STOP)
9
CN501 - pin 18 (DIN1)
V: 0.2V/div.(10 : 1) H: 0.2µsec/div.
(REC_OPTICAL)
10
CN501 - pin 19 (DITOUT)
V: 0.2V/div.(10 : 1) H: 0.2µsec/div.
(STOP)
CD-R CORE ASSY
A 4/5
CD-R CORE ASSY
A 5/5
13
IC501 - pin 88 (EFM)
V: 0.2V/div.(10 : 1) H: 0.5µsec/div.
(REC)
14
IC431 - pin 6 (17M)
V: 0.2V/div.(10 : 1) H: 50msec/div.
(REC)
15
IC431 - pin 25 (ODON)
V: 0.2V/div.(10 : 1) H: 0.1µsec/div.
(REC)
16
IC431 - pin 29 (WLDON)
V: 0.2V/div.(10 : 1) H: 1msec/div.
(REC)
17
IC431 - pin 34 (REWLDON)
V: 0.2V/div.(10 : 1) H: 1msec/div.
(REC)
5
CN501 - pin 12 (CL)
V: 0.2V/div.(10 : 1) H: 0.5µsec/div.
(STOP)
11
CN501 - pin 20 (DIN2)
V: 0.2V/div.(10 : 1) H: 0.2µsec/div.
(REC_Coaxial)
18
TP503 (W/XR)
V: 0.2V/div.(10 : 1) H: 1msec/div.
(REC)
1
CN452 - pin 2 (SL +)
V: 0.2V/div.(10 : 1) H: 5msec/div.
(PLAY)
2
CN452 - pin 3 (SP +)
V: 0.2V/div.(10 : 1) H: 5msec/div.
(PLAY)
3
CN452 - pin 9 (FG)
V: 0.2V/div.(10 : 1) H: 1msec/div.
4
IC401 - pin 25 (MDP)
V: 0.2V/div.(10 : 1) H: 5µsec/div.
(PLAY)
IC401 - pin 25 (MDP)
V: 0.2V/div.(10 : 1) H: 5µsec/div.
(REC)
5
IC401 - pin 20 (MIRR)
V: 0.2V/div.(10 : 1) H: 20µsec/div.
(REC_CD-RW)
6
CN501 - pin 13 (DADATA)
V: 0.2V/div.(10 : 1) H: 0.5µsec/div.
(PLAY)
12
CN501 - pin 11 (DI)
V: 0.2V/div.(10 : 1) H: 5msec/div.
(STOP)
